Stone CNC Machining Center for Cutting and Polishing

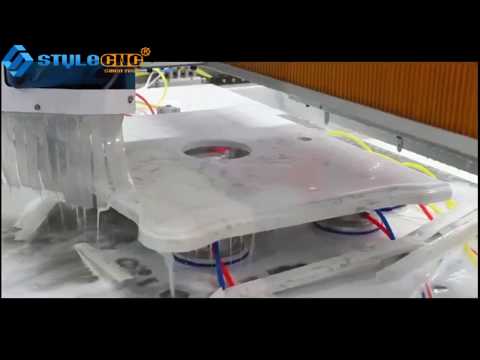

Demonstration Video

Product Details

Features of Stone CNC Machining Center:

1. Vacuum adsorption table design, feeding is convenient and quick.

2. High-power spindle motor is more suitable for cutting.

3. The stone CNC machine is more stable, more durable, effectively reducing the equipment in high-speed operation, the spindle jitter, broken knife, dislocation and so on.

4. A unique filter tank, water circulation system, effectively extending the service life of the sink.

5. Automatic oiling system, maintenance and more convenient.

6. Three shaft all dustproof and waterproof design.

7. Top brand spindle to ensure that the stone CNC machine in the high-speed operation, the output torque capacity unchanged, the spindle wear, high temperature.

8. All institutions of the stone CNC machine are made of precision parts assembled.

Technical Parameters of Stone CNC Machining Center:

Model	STS3113
Working Area	3100*1300*500mm
Lathe Bed	Thick steel weld
Table	Steel board+Aluminum board
Guide Rail	35mm Taiwan Square Rail
X/Y Axis Transmission	Imported Rack Gears
Z Axis Transmission	Imported Ball Screw
Spindle	BT40 ATC 5.5 kw spindle
Spindle speed	0-8000rmp/min
Running speed	0-8000rmp/min
Feeding speed	1-10000mm/min
Fast feeding speed	X/Y: 15000mm/min Z: 6000mm/min
Working accuracy	0.05mm
Reposition accuracy	0.02mm
Maximum processing thickness	350mm
Motor	Japanese servo motor
Drive	Servo driver
Reducer	Brand from Taiwan
Way of fixing Workpiece	Scuction Cup
vacuum pump	5.5kw water-cooling
ATC	8 sets Vertical-type ATC system
Position	Air Cylinder
Control system	SYNTEC control system
Engraving Command	G code, PLT, HPGL2D, 3D
Software compatability	Origin UCANCAM software
Switch and emergency stop	The best one in China
Working voltage	AC380V/3phase,50HZ
Weight	4000KG

Applications of Stone CNC Machining Center:

Quartz stone cabinet countertops processing, stone side modeling, arc retaining water grinding, basin pots, stone relief, hollow, line carving.

Granite, marble, bluestone, tombstone, headstone and other stone materials processing.

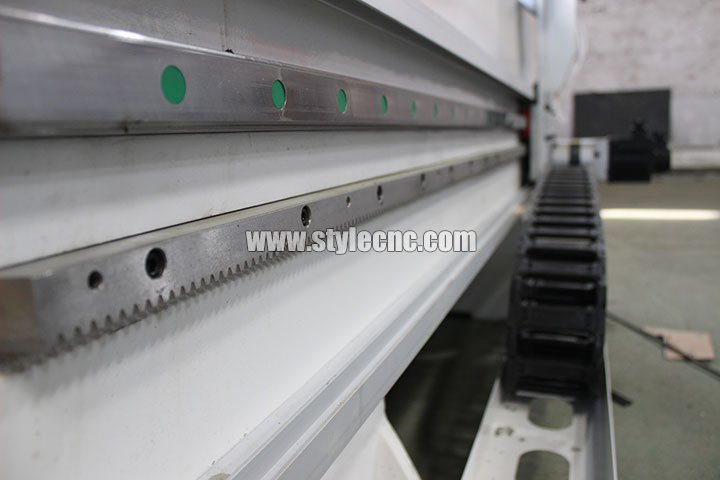

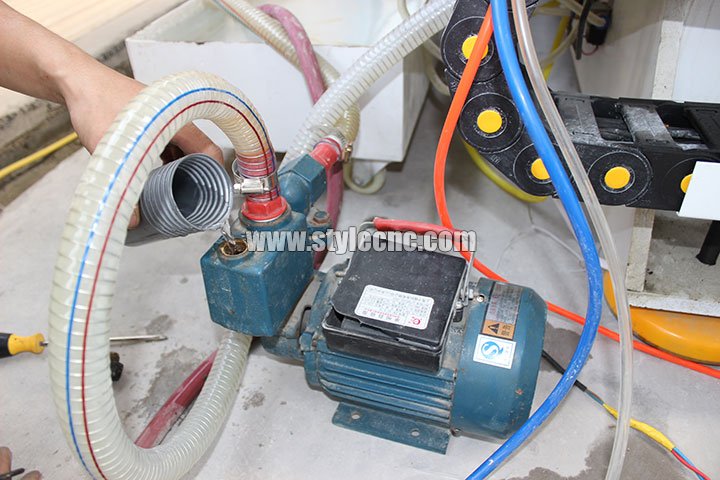

Detail Pictures of Stone CNC Machining Center:

Projects of Stone CNC Machining Center:
