Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Profitable mixed CNC laser cutter hybrid cutting machine is a beneficial laser cutting system for wood, plywood, MDF, acrylic, fabric, leather, stainless steel, and more metals in commercial use.

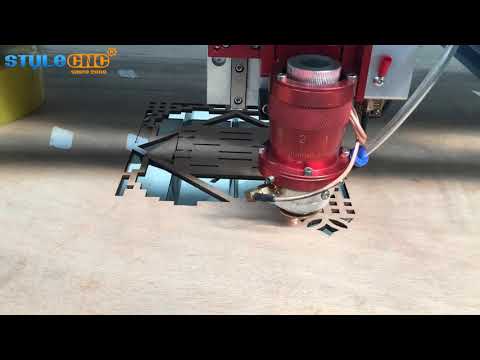

Demonstration Video

Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Product Details

Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Advantage of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

1. Stable machine’s quality with comprehensive cutting applications, able to cut stainless steel, carbon steel, wood, arcylic.

2. High efficiency 280W beam combining laser tube with stable laser path, life time around 10,000 hours.

3. Lower investment cost, lower operating cost and lower maintance cost.

4. Automatically height-adjusted laser head with following up system make easy to cut metal and nonmetal.

Applications of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Metal: Max 3mm stainless steel, 2mm stainless steel.

Nonmetal: Acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic.

Technical Parameters of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Model STJ1390M-2
Working Area

1300*900mm

Driving system Belt transmission
Laser Power 220W, 300W
Laser Type CO2 Sealed Laser Tube
Cooling Type Water Cooling
Laser Output Control (0-100% Set by Software)
Min. Engraving Speed Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Positioning Accuracy ±0.05mm/m
Positioning Speed 20m/min
Max. Cutting Thickness 40mm
Max. Cutting Speed 20m/min
Controlling Software RD6332M Control System or optional
Graphic Format Supported DST PLT BMP DXF DWG AI LAS, etc
Compatible Software TAJIMA, CORELDRAW, PHOTOSHOP, AUTOCAD
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor or servo motors as optional
Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe
Power Supply AC110V/220V+10%,50HZ/60HZ

Features of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

1. Large working area of 1300*900mm for big materials.

2. The software provides the output of original pictures, compatible with the graph formats such as CAD, CorelDraw and Photoshop.

3. Owns functions of restoring from power off, continuation on break point.

4. International linear rail, more precision.

5. The drawer and the funnel design for collecting remnant material, it is convenient to use.

6. High quality water chiller, protect stable radiation and prolong the lift-span of laser.

7. Metal cutting head with following up system make easy to cut metal and nonmetal.

8. The rack transmission and ballscrew transmission for choose.

Control Panel

Control Panel

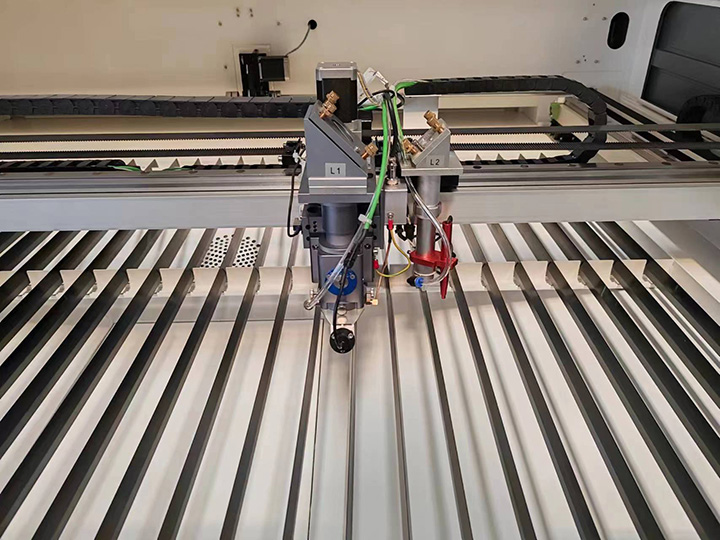

Hybrid Laser Cutting Head

Hybrid Laser Cutting Head

Mixed Laser Cutting Head

Mixed Laser Cutting Head

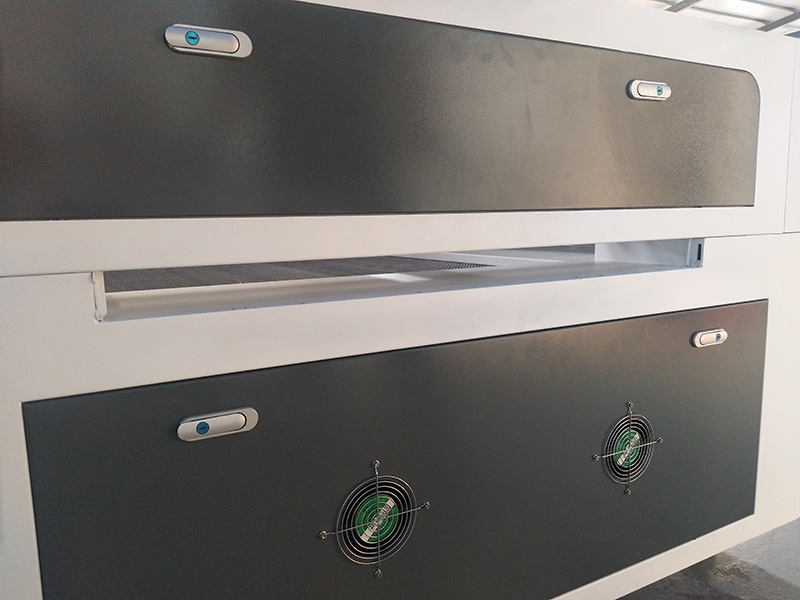

Bed Frame

Bed Frame

Projects of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Projects of Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

Package and Service for Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

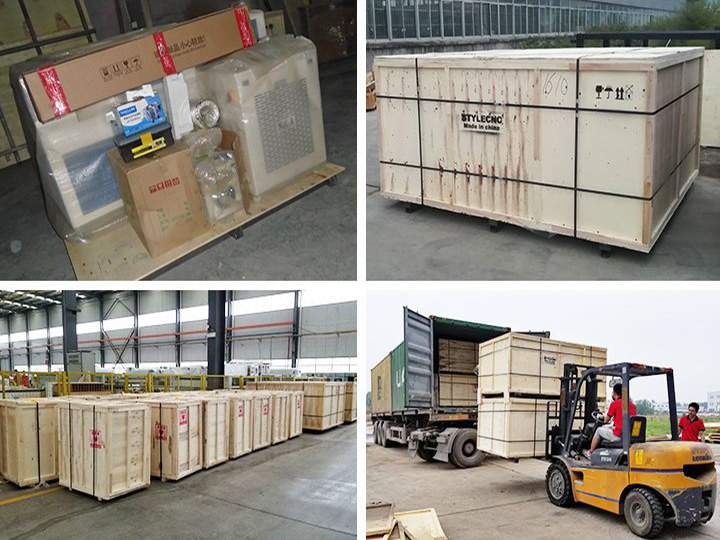

Package and Delivery for Profitable Mixed CNC Laser Cutter Hybrid Cutting Machine

1. Technical supports and suggestions before you order a machine according to your work piece.

2. Professional instruction for the operation of the machine.

3. One year warranty, we will provide the consumable parts at cost price after the warranty period.

4. Our technician will come to your workshop if the problems can not be fixed through internet or phone communications.

5. 24-hour technical support by email or calling.

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
