Profitable Automatic CNC Wood Lathe Machine for Sale

Profitable automatic CNC wood lathe machine is equipped with double axis for turning table legs, bed rails, chair legs, staircases, stairway newel posts, stairway balusters, and baseball bats. Now the beneficial powerful woodworking tool for sale at low price.

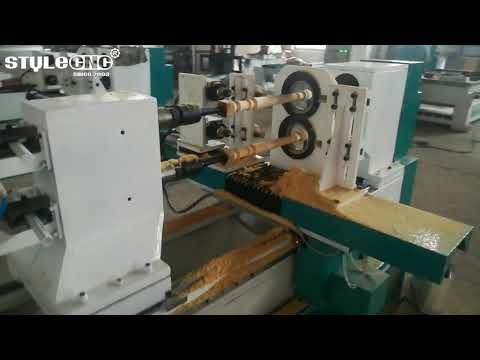

Demonstration Video

Profitable Automatic CNC Wood Lathe Machine for Sale

Product Details

Automatic CNC Wood Lathe Machine

Features of Profitable Automatic CNC Wood Lathe Machine

1. The whole lathe machine body is cast iron, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

2. The wood lathe machine is equipped with 2pcs spindles for twisting, grooving, slotting, etc.

3. The wood lathe adopts advanced DSP system with USB connection, operated with the handle, convenient operation. The lathe can completely work off-line and do not take any computer resources.

4. The wood lathe adopts Germany ball screw and Taiwan PMI helical square guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.

5. Compatible with several CAD/CAM design software: type3, artcam, etc.

6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.

7. One time tool setting to finish the whole work piece.

8. Double axis can double working efficiency, with 4 pcs wood lathe cutter make the wood cutting more smooth and stable.

9. Helical gear transmission way, which makes higher working speed, and with higher weight load, smooth running, and lower noise.

Technical Parameters of Profitable Automatic CNC Wood Lathe Machine

Model STL1516-2S2
Max processing length 1500mm (2000mm/2500mm/3000mm for option)
Max turning diameter 160mm
Air pressure 0.6-0.8Mpa
Powersupply AC 380V 3 phase 50HZ/60HZ (220V for option)
Max feed rate 200cm/min
Min setting unit 0.01cm
Transimission type Ball screw for X, Y, Z
Guider Taiwan Hiwin orbit
Main shaft rotating speed 0-3000r/min
Motor power 5.5kw
Spindle motor 3.5kw air cooling spindle
Control System PLC control system
Motor Stepper motor
Driver Yako driver
Inverter Best inverter
Drawing Software AutoCAD
Hand controller recognise file format *.dxf

Optional Parts for Profitable Automatic CNC Wood Lathe Machine

1. More rotary axis.

2. Spindle.

3. Different power requirement.

4. Upgrade controller.

5. Servo motor.

6. Bigger working diameter and length, etc.

Wood Lathe Machine Features

Wood Lathe Machine Parts

Double Axis Wood Lathe Machine

Automatic CNC Wood Lathe Machine Motor

Servo motor for Wood Lathe Machine

Two Spindles for Automatic CNC Wood Lathe Machine

Wood Lathe Machine spindles

Applications of Profitable Automatic CNC Wood Lathe Machine

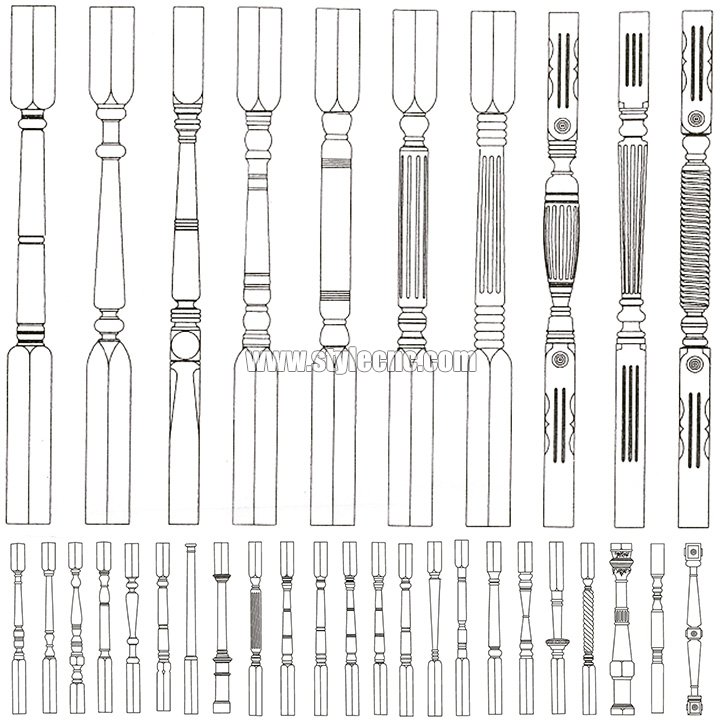

The wood lathe machine is mainly used for staircases, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs, chair legs, chair arm posts, chair stretchers, bed rails, lamp posts, baseball bats, wood broom handle, etc.

Profitable Automatic CNC Wood Lathe Machine Projects

Wood lathe machine for wood columns and legs projeacts

Wood lathe projects

Wood lathe for baseball bats

Profitable CNC Wood Lathe Machine Packages

CNC Wood Lathe Machine Packages

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
