New Design Stone CNC Machine for Marble, Granite and Quartz

New design affordable stone CNC machine STS1318 is used for carving and cutting marble, granite, quartz, and other stones. Now the best CNC stone router machine for sale at low price.

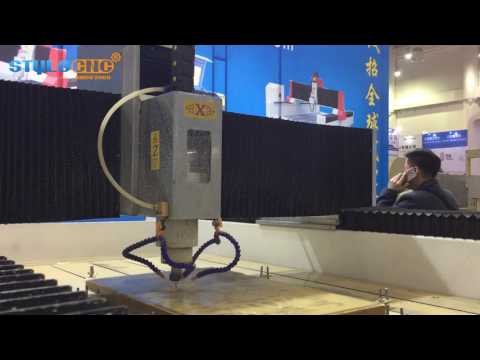

Demonstration Video

New Design Stone CNC Machine for Marble, Granite and Quartz

Product Details

Stone CNC Machine

Features and Advantages of Stone CNC Machine:

1. The stone CNC machine bed is welded by the thick wall steel seamless tube, high temperature tempering treatment, high rigidity, bearing strength better .

2. Dual stepper motor drive for Y-axis, moving stably.

3. DSP control with good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam.

4. Constant spindle motor 5.5 KW power, strong cutting strength, high efficiency.

5. High precision rack transmission, high speed.

6. Imported linear square guide way, double row four row slider, high precision, long life time.

7. Well selected electrical accessory, let the failure rate to the minimum.

8. With water and automatic water supply and cooling system.

9. Dustproof and waterproof design, better to protect the machine driving part.

Technical Parameters of Stone CNC Machine:

Model

STS1318

Working Area

1300x1800x300mm

Table Size

1450x2240mm

Traveling Positioning Accuracy

±0.03/300mm

Reposition Accuracy

±0.03mm

Table Surface

T-slot Table

Frame

Welded Structure

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption

(Without Spindle) 3.0Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

5.5 kw

Spindle Speed

0-24000RPM

Drive Motors

Leadshine stepper motors

Working Voltage

AC380V/50/60Hz,3PH

Command Language

G Code

Operating System

NK105 DSP control system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.03mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment Temperature

0 – 45 Centigrade

Relative Humidity

30% – 75%

Packing Size

3550X2300X1900mm

N.W.

1600KG

G.W.

1880KG

Applications of Stone CNC Machine:

The stone CNC machine can make line carving, 2D carving, 3D carving, 3D relief, cutting, drilling, etc.

Applicable Materials: Stone, marble, granite, black stone, bluestone, jade stone, crystal, glass, organic glass floor tile and ceramic tile, plastic, chemical synthesis board, PVC board, bamboo ware, aluminum plastic panel, metals, etc.

Applicable Industry Representative Products:

Stone Industry: Stone, ink-stone cutting, tomb stone, jade and marble products.

Kitchen Ware Industry: Man-made marble cabinet table surface.

Artwork Decoration Industry: Wood crafts, gift box, jewelry box and other exquisite art crafts.

Woodworking industry: Chair, door, window, bed, cabinet, kitchen wares, redwood classical and antique furniture, exquisite european furniture, decorative products sculpture.

Mold Industry: Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould, biscuit, candy, chocolate mould, artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold.

Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting, 3D character cutting, acrylic cutting, LED/Neon channel, light box.

Stone CNC Machine Details Show:

Stone CNC Machine

Stone CNC Machine for Marble

Stone CNC Machine for Marble, Granite

Stone CNC Machine Projects:

Stone CNC Machine for Marble, Granite

Stone CNC Machine for Marble, Granite

Stone CNC Machine for Marble, Granite

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
