Multifunctional CNC Wood Lathe with Automatic Loading System

Multifunctional CNC wood lathe is a large heavy duty automatic lathe machine equipped with three independently controlled cutting tools, 1st turning blade for roughing the square wood to be shapes designed, 2nd milling tool for twisting or fluting, 3rd producing one-off bespoke turnings. A sanding head with narrow belt to sand turned or straight profiles is optional.

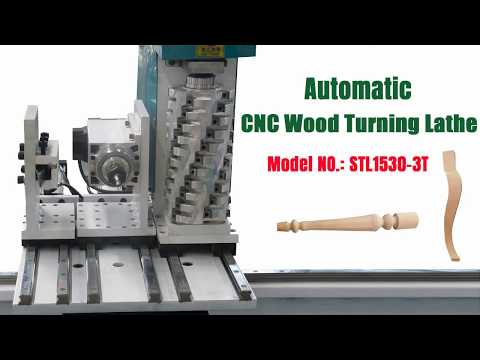

Demonstration Video

Multifunctional CNC Wood Lathe with Automatic Loading System

Product Details

Multi-Functional CNC Wood Lathe with Automatic Loading System

Features of Multi-Functional CNC Wood Lathe with Automatic Loading System:

The heavy duty wood lathe machine is suitable for same design work pieces long production runs, save working time and turned components with excellent quality.

The large wood lathe machine is equipped with three independently controlled cutting tools, the first turning blade for roughing the square wood to be shapes designed, the second milling tool for twisting or fluting, the last one producing one-off bespoke turnings. A sanding head with narrow belt for sanding turned or straight profiles is optional.

Technical Parameters of Multi-Functional CNC Wood Lathe with Automatic Loading System:

Model

STL2530A-4T

Working size

2500*300mm

Max. diameter

300mm

Max. length

2500mm (1500mm and 2000mm for choose)

Control system

STYLECNC controller

Inverter

Best

Driving system

Leadshine 2206 servo driver and motor

Frame

Heavy duty wholly cast iron

Feeding system

Automatic feeding system

Transmission

Taiwan TBI ballscrew transmission #32

Taiwan Hiwin square rail #25

Turning motor

5.5KW

Spindle

3.5kw air-cooling

Milling tool

Length:250mm, OD:125mm,ID:40mm

Functions

Sculpture, carving, slotting, milling

Spindle speed

0-3000r/min

Working voltage

380V/3P/50HZ or 220V/3P/60HZ

Details of Multi-Functional CNC Wood Lathe with Automatic Loading System:

Three independently controlled cutting tools:

Three independently controlled cutting tools

Sanding head:

Sanding head

Automatic loading system:

Automatic loading system

STYLECNC controller:

STYLECNC controller

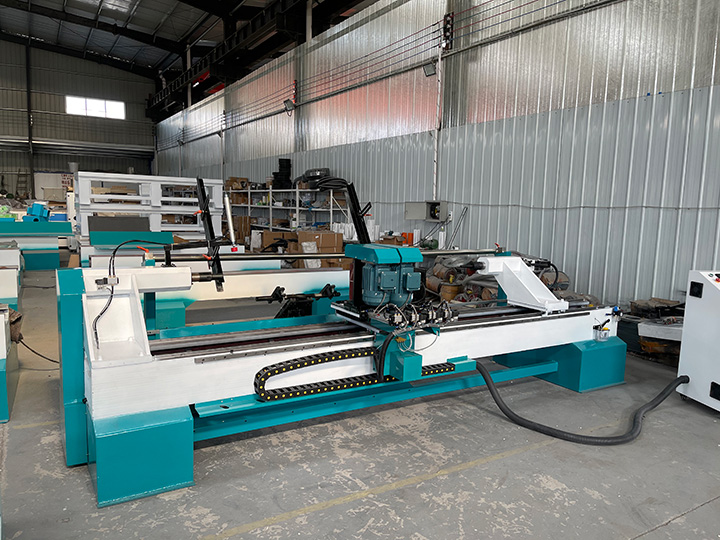

STL2530A-4T Multi-Functional CNC wood lathe:

STL2530A-4T Multi-Functional CNC Wood Lathe

What types of special works a multi-functional CNC wood lathe with automatic loading system can do?

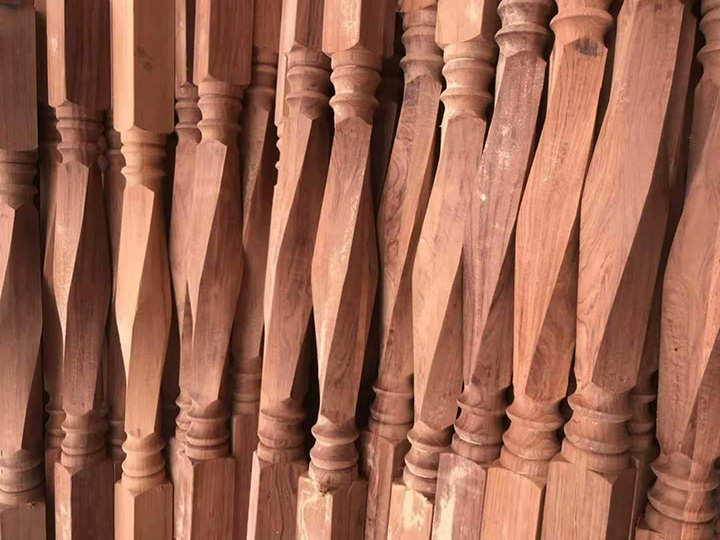

wood stairs cnc lathe

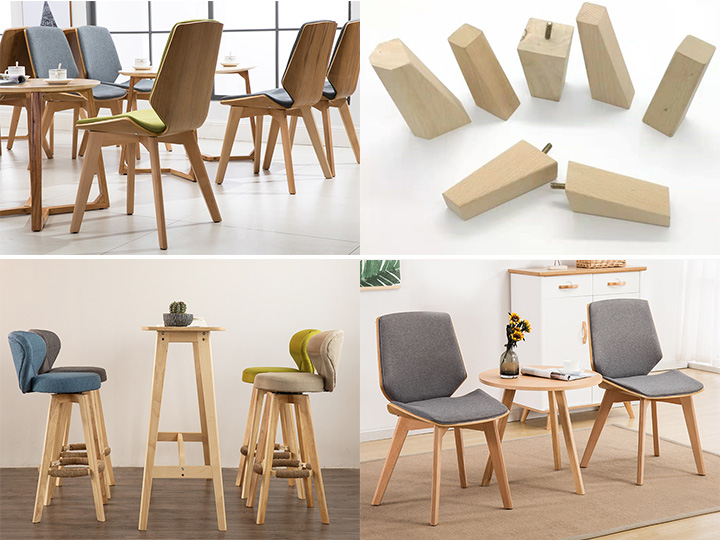

chair legs from CNC wood lathe

Furniture legs by CNC wood lathe
