Metal & Nonmetal Laser Cutter with 300W CO2 Laser Tube

Metal & nonmetal laser cutting machine with 300W CO2 laser tube is a new designed laser cutter for thin metals and nonmetals, such as stainless steel, alloy, acrylic, leather, plywood, MDF, wood.

Demonstration Video

Metal & Nonmetal Laser Cutter with 300W CO2 Laser Tube

Product Details

Mixed Laser Cutting Machine for Metal and Nonmetal

Advantages of Metal & Nonmetal Laser Cutting Machine:

1. Economical with cost-effective metal and nonmetal laser cutting machine.

2. Stable machine’s quality, with comprehensive cutting applications (stainless steel, carbon steel, alloy, arcylic, wood, MDf, plywood, etc.).

3. Lower investment cost, lower operating cost and lower maintance cost.

4. Non-contact height-adjusting configuration enables to cut almost all materials with lowest cost.

5. Working table: Open blade with special treated material. Never fray and easy operation, suitable for all kinds of hard materials.

6. Steady chassis: Stability and precision during high speed work.

7. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced stepper motor to ensure the working accuracy.

8. High efficiency tube with stable laser path, life time around 10,000 hours.

Technical Parameters of Metal & Nonmetal Laser Cutting Machine:

Model

STJ1325M

Working area

1300X2500mm

Laser power(w)

300W beam combining laser tube

Table

Blade table

Drive system

Stepper motor and drivers

Transmission

Belt transmission

Mirror and lense

America mirror and lense

Dust collector system

with

Air compressor

with

Water Chiller

CW6000

Control panel

RD6332M

Cutting speed

0-60000mm/min

Cutting thickness

Max 35mm according to the materials

Minimum shaping character

“Chinese: 2×2mm English: 1×1mm”

Resolution ratio

0.025mm

Power supply

220v, 2 phase, 50Hz

Graphic format supported

BMP,HPGL(PLT),JPEG,GIF,TIFF,PCS,TGA

Applications of Metal & Nonmetal Laser Cutter Machine:

Materials/Thickness

Speed

Oxygen(MPa)

Air gas(MPa)

SS/1mm

4.5-5m/min

0.5

SS/1.5mm

2.5-3 m/min

0.5

SS/3mm

0.9-1m m/min

0.5-0.6

CS/1mm

4.5-5 m/min

0.5

CS/1.5mm

2.5-3m/min

0.5

CS/2mm

1.5 -1.7m/min

0.5

CS/3mm

0.9-1m/min

0.5-0.6

CS/4mm

0.4-0.5m/min

0.5-0.6

Acrylic/15mm

0.4-0.5m/min

Air pump

Acrylic/25mm

0.1-0.2 m/min

Air pump

Acrylic/30mm

0.06-0.1m/min

Air pump

galvanized sheet/1mm

4-4.5m/min

0.4

galvanized sheet/1.5mm

2.5-3m/min

0.4-0.5

Die board/18mm

0.4-0.5m/min

0.4-0.5

polystyrene/1mm

10-10.5m/min

0.4-0.5

polystyrene/1.5mm

6.5-7m/min

0.4-0.5

epoxy resin/2mm

0.5-0.8m/min

0.4-0.5

epoxy resin/3mm

0.3m-0.5m/min

0.4-0.5

Features of Metal & Nonmetal Laser Cutter Machine:

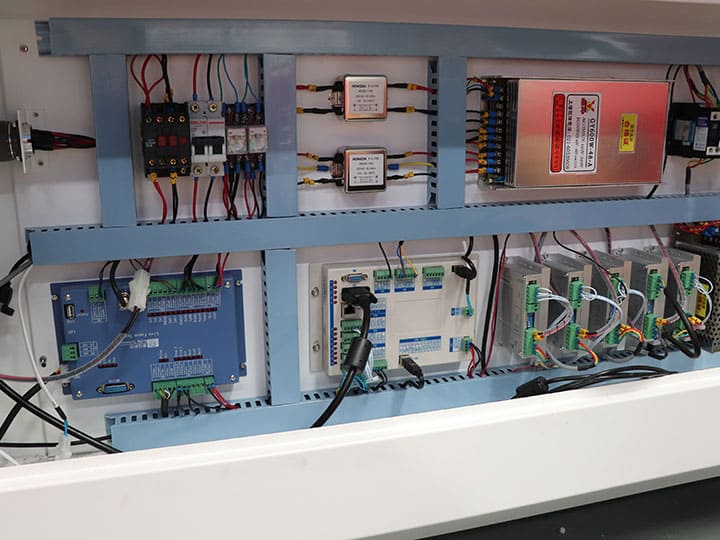

1. Control box .

Metal and nonmetal laser cutting machine 300W

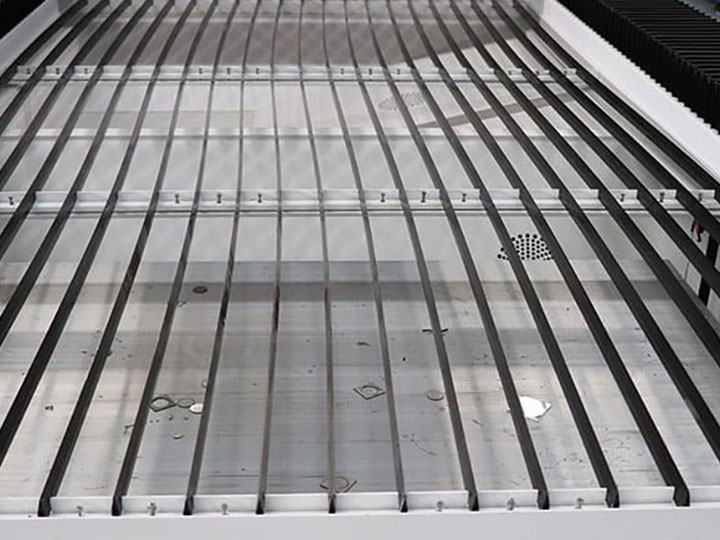

2. Hard steel blade table to bear heavy duty materials.

laser cutting machine blade table

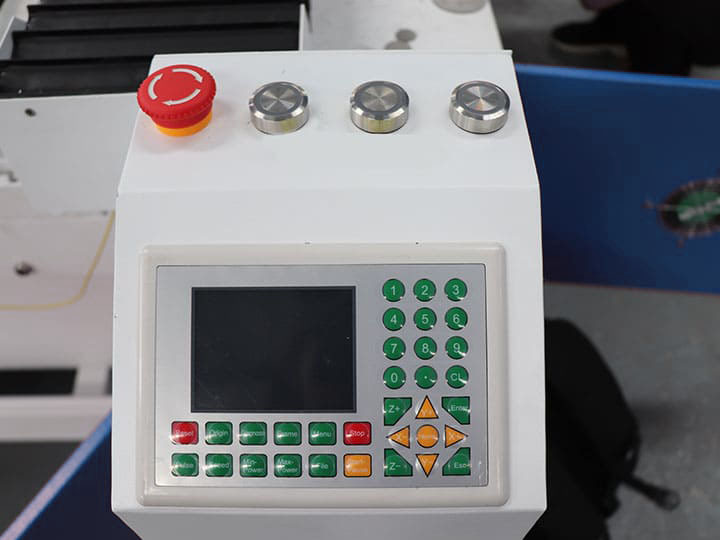

3. RD6332M control system to control the metal/nonmetal cutting with high efficiency.

RD6332M control system

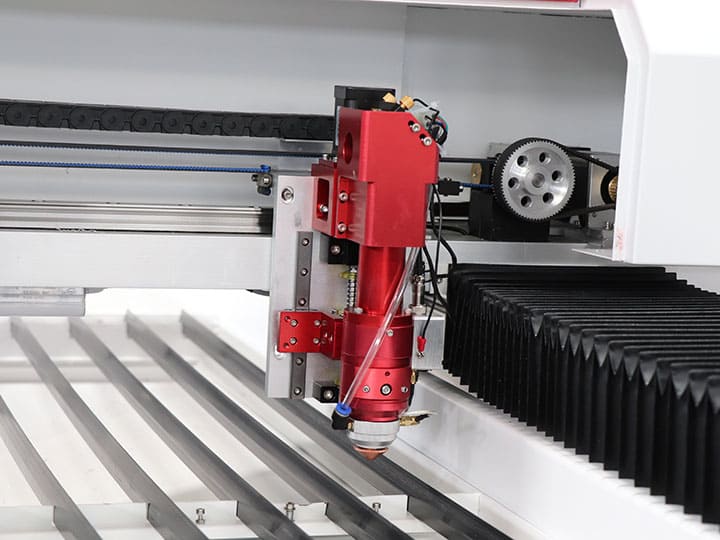

4. RD sensor to control the laser head height-adjusted according to the materials’ surface.

mixed laser cutting head

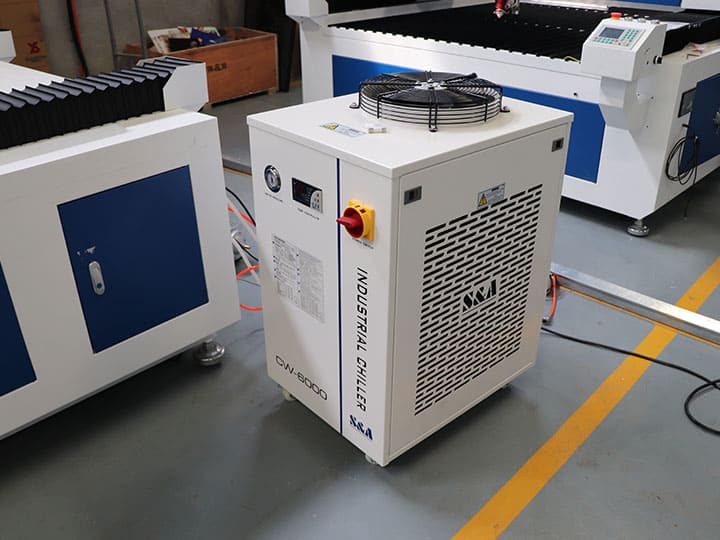

5. High power water chiller make the work more safe and guarantee the laser tube last long service time.

CW6000 water chiller

6. Adopts Yongli beam combinned laser tube, enough power to cut thin metal and thicker nonmetal materials.

300W co2 laser tube

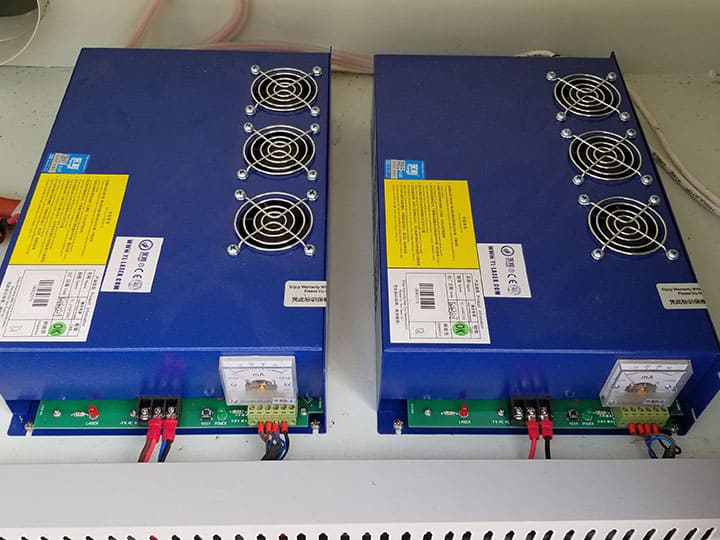

Yongli laser power supply

Metal & Nonmetal Laser Cutting System Projects:

Laser Cutting Machine for Metal

Laser Cutting Machine for Nonmetal

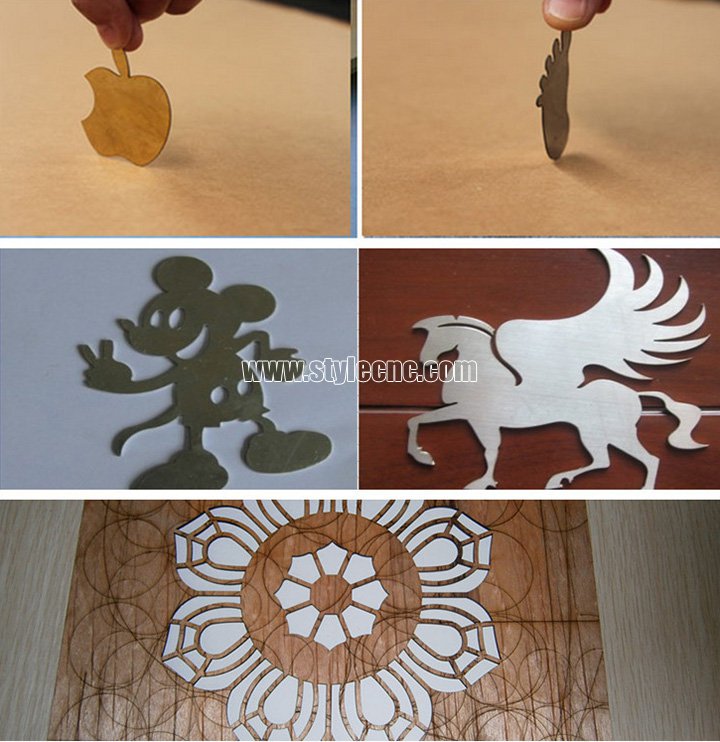

Metal & Nonmetal Laser Cutting Projects

Metal & Nonmetal Laser Cutting Table Package:

Metal and nonmetal laser cutting machine 300W package

Delivery and After-Sale Service for Metal & Nonmetal Laser Cutting Machine:

On-Time Delivery:

After you confirm the order, we will figure out the delivery date according to the model and production schedule. For general models, we will arrange production in 7 days and we will notify you of the exact phase of production process.

After-Sales Service:

We guarantee all of our laser cutting machines have a one-year warranty (quick-wear parts not included).

Numerous feedbacks from our clients have proven that our laser cutting machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:

1. We guarantee we will give you a clear reply within 24 hours.

2. Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.

3. If the malfunction is caused by improper operation on software and other soft faults, we will help you to solve the problem online.

4. If a certain part is damaged, we will deliver a replacement part to you as soon as possible, so you can replace it by yourself, reducing unnecessary time cost.

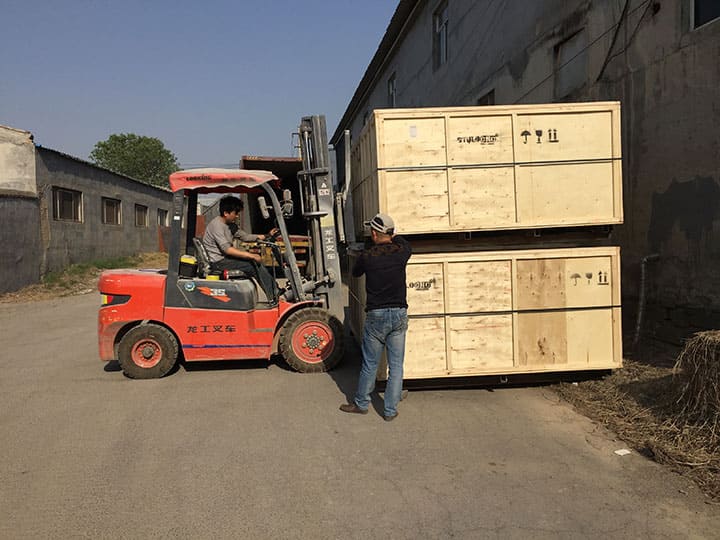

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
