Industrial Wood Lathe for Table Legs & Stair Balusters

Industrial wood turning lathe machine with CNC controller is a full size automatic woodworking machine tool for table legs, stair spindles, stair balusters, Roman columns, staircase columns, tubular sharps, bowl sharps, vehicle wood crafts, baseball bats, general columns, chair legs, or sofa legs.

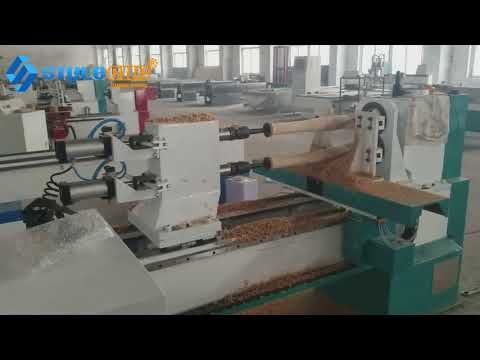

Demonstration Video

Industrial Wood Lathe for Table Legs & Stair Balusters

Product Details

Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

Features of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

1. Maximum turning length is 1500mm, max turning diameter is 160mm.

2. The wood lathe machine has 4 cutters at two sides of the machine, the 4 cutters work together to improve the efficiency greatly.

3. Taiwan PMI guide, Germany ball screw, high precision and durable.

4. Heavy Cast iron lathe bed. avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.

5. Drawing by AutoCAD and other softwares, transfer the files to machine by a USB.

6. LCD screen control system is easy to operate.

7. It can be equipped with spindle for grooving, slotting, etc.

Technical Parameters of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

Model

STL1516-2S1

Max turning length

1500mm

Max turning diameter

160mm

Power supply

AC380V/50hZ (AC220V for option)

Control Systems

PLC controller

Guides and ball screws

Taiwan Hiwin square rails and TBI precision ball screw

Follow rest

Rotary Centre (5CM wooden , 6CM wooden)

Number of axis

Double axis, four blades

Motor control

Stepper motor

Overall dimensions

0.6-0.8MPa

Tailstock

Pneumatic material clamping top

Maximum feed rate

200cm/min

Spindle speed

0-3000r/min

Weight

1600kgs

Engraver / Pull trough, pull and twist versatile spindle control section

Additional pull trough Universal rotary joint

Optional for CNC wood lathe

1. 160mm four-jaw chuck linkage.

2. Woodworking cleaner(Vacuum cleaner).

3. 220V constant power variable spindle control.

4. Four-exchange station automatic tool changer.

Detail Pictures of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

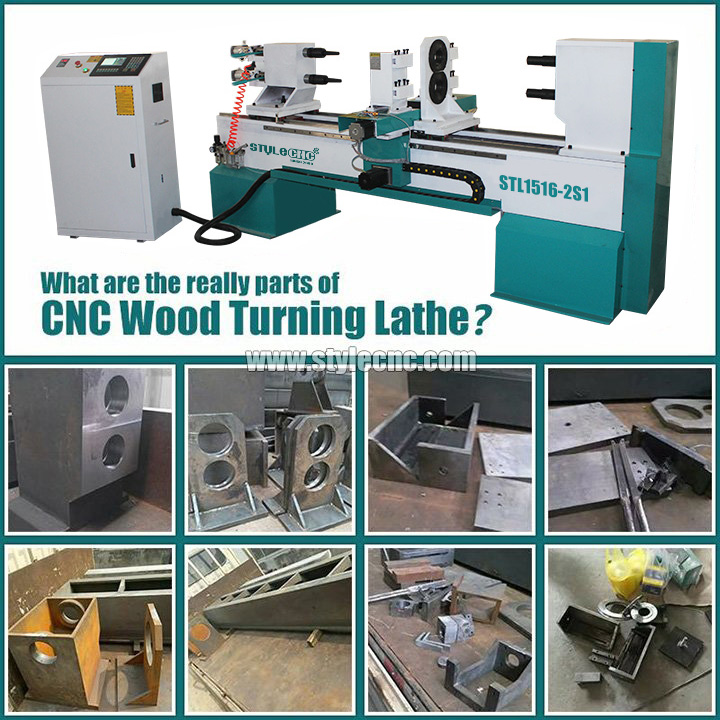

Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

Large Wood Lathe Machine for Industrial Manufacturing in Factory:

Large Wood Lathe Machine for Industrial Manufacturing

Large Long Wood Lathe with Cast Iron Bed:

Large Long Wood Lathe with Cast Iron Bed

LCD Screen Control System to Show the Whole Turning Process:

Industrial Wood Turning Lathe Machine Controller

Double Truck of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:

Double Truck of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

Tailstock of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:

Tailstock of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

Stepper Motor of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:

Stepper Motor of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

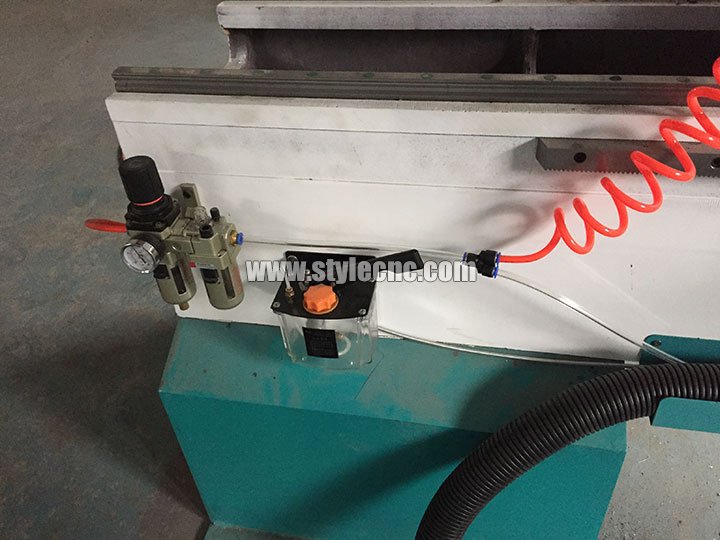

Oil lubrication of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles:

Oil lubrication of Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

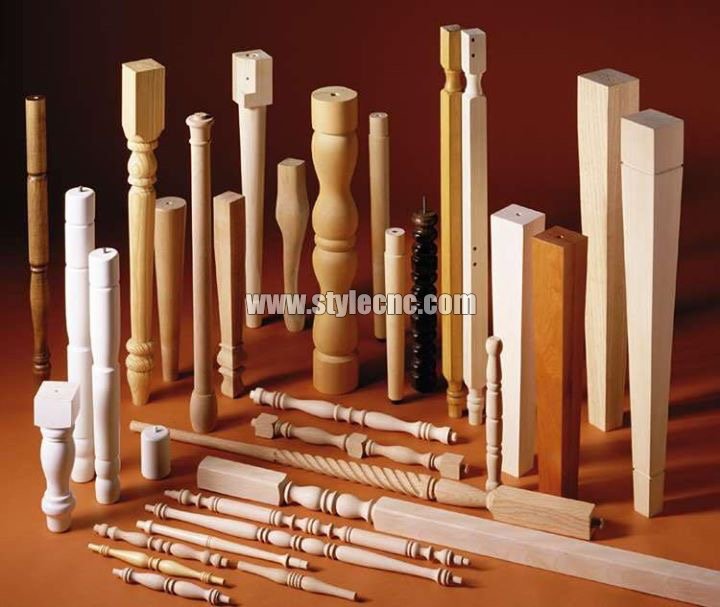

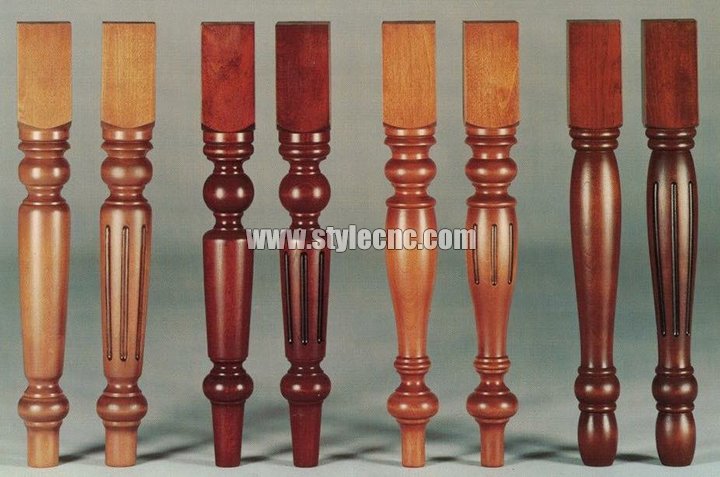

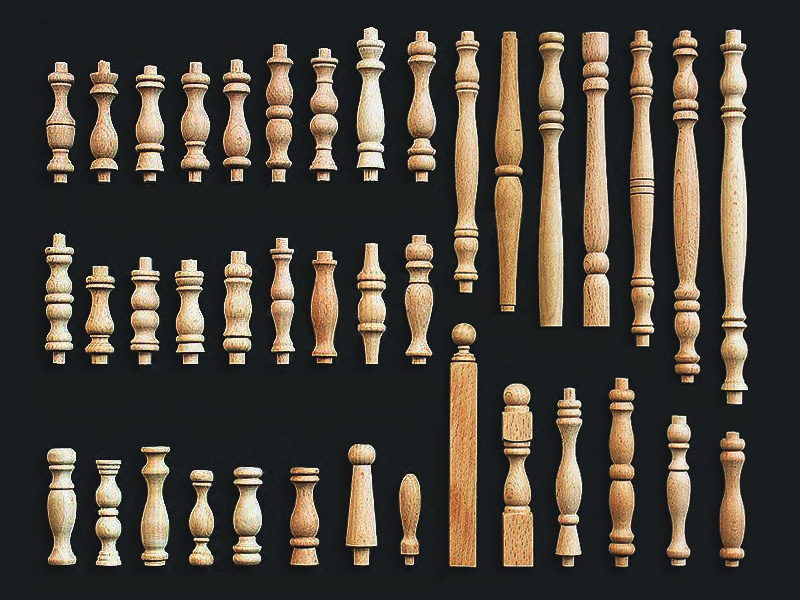

Applications of Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles

Roman columns, bowl sharps, tubular sharps, vehicle wood crafts, staircase columns, general columns, table or chair legs, wooden vases, washstand, car wooden furnitures, baseball bats, children’ s bed columns and various cylindrical workpiece.

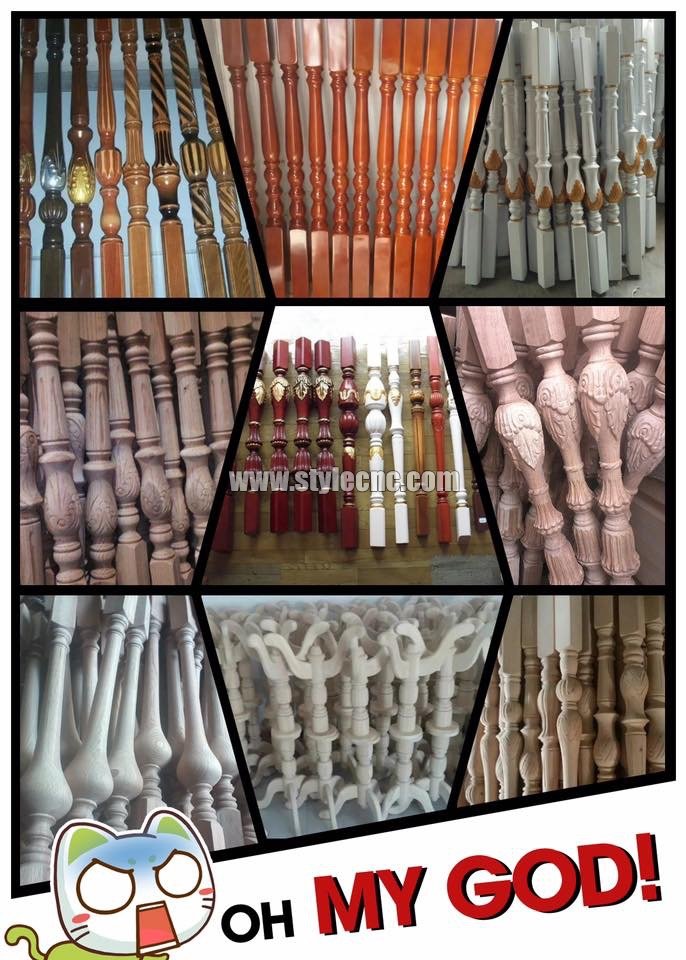

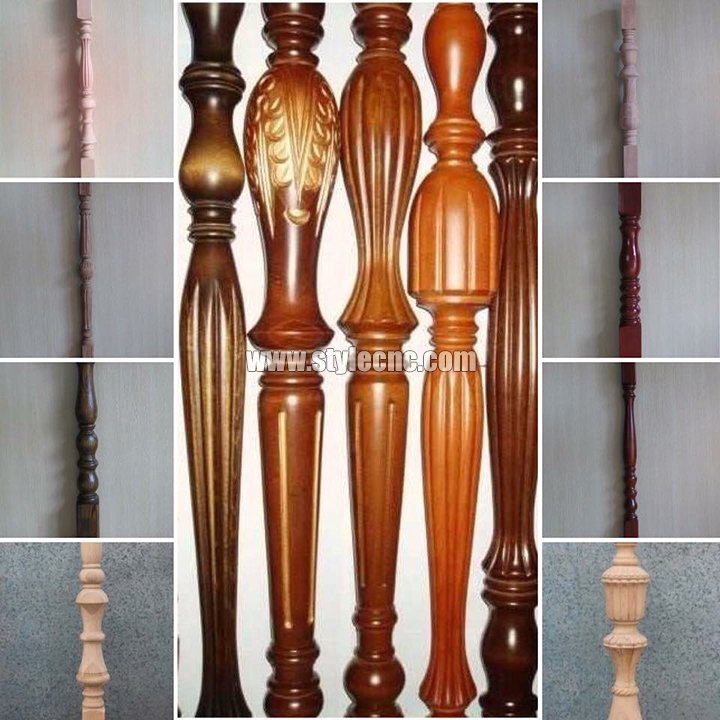

Industrial Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles Projects

Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles Projects

Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles Projects

Industrial CNC Wood Turning Lathe Machine for Table Legs Projects

Industrial CNC Wood Turning Lathe Machine Projects

Industrial CNC Wood Turning Lathe Machine for Table Legs, Stair Balusters and Spindles Projects

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
