Industrial ATC CNC Router Machine with 4 Spindles for Sale

Industrial ATC CNC router machine with four spindles is used for panel furniture, office furniture, wood doors, cabinets, tables, chairs, windows, decorations.

Demonstration Video

Industrial ATC CNC Router Machine with 4 Spindles for Sale

Product Details

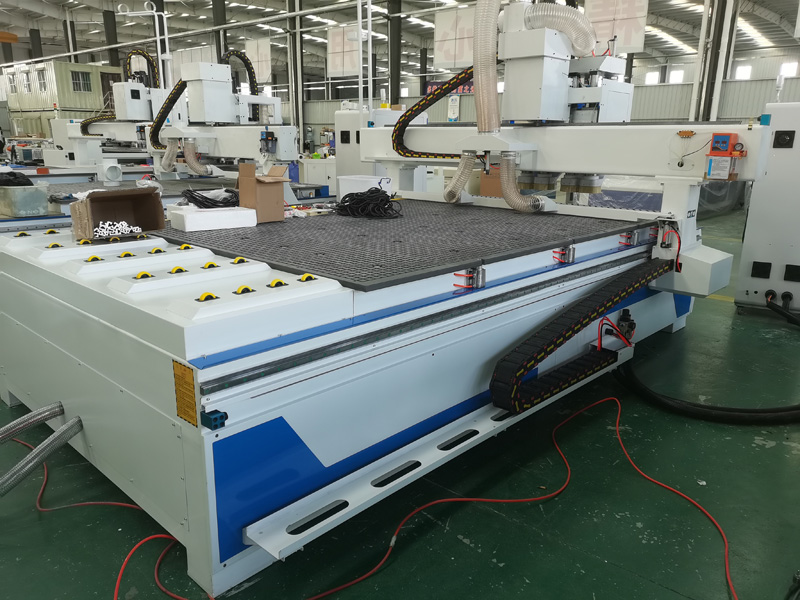

Industrial ATC CNC Router Machine with Four Spindles

Features and Advantages of Industrial ATC CNC Router Machine with Four Spindles

1. The CNC router ATC is equipped with 4 kinds of cutters, there is no need to change the cutters when engraving or cutting. The program can work automatically. The advantage is low investment. High profit, low maintenance, easy to operate. It is also very easy for beginner to operate.

2. DSP or MACH3 control system, with handle controller, no need to connect computer.

3. The whole CNC router machine ATC is welded with thick seamless steel structure, the stability is good, not easy to be deformed, Gross weight 1100kgs, even 5 people can not move it. The CNC router machine adopts gantry movement, it can process any kinds of materials freely.

4. High quality Taiwan imported HIWIN Linear guide has much longer life 10 times of life-time than round guide, two line sliding track, heavy loading, stable working, high precision and long lifetime.

5. This CNC router ATC is suitable for machining any kinds of materials in bulk.

6. Well compatibility: CAD/CAM designing software. TYPE3/Artcam/Castmate/ Wentai.

ATC CNC Router Machine for Cabinet Making

Multi Spindle CNC Router with Automatic Tool Changer for Cabinet Making

Applications of Industrial ATC CNC Router Machine with Four Spindles

Furniture: Panel furniture, official furniture, wooden door, cabinet, plate, tables, chair.

Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

Panel processing: insulating part, working of plastic; PCB; stone, marble, acrylic, PVC, MDF, organic glass and the cutting of cooper, aluminum, and other soft metals.

Technical Parameters of Industrial ATC CNC Router Machine with Four Spindles

Model

S1-IV

X,Y,Z Working Area

2100x3000x200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum Table

Frame and gantry

frame steel (8mm),aging treatment and steel structure(12mm)

X, Y Structure

WMH HMRON Helical Rack and Pinion Drive, Hiwin Linear square rails

Z Structure

Hiwin Linear square rails
and TBI Ball Screw

Max. Power Consumption

(Without Spindle) 4.5Kw

Max. Rapid Travel Rate

30000mm/min

Max. Working Speed

25000mm/min

Spindle Power

2*4.5kw and 2*3.5kw air cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

Japan 750w Yaskawa servo motor and driver

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

Command Language

G code

Operating System

Original Syntec controller system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER32

X,Y Resolution

<0.03mm

Software Compatibility

UcancameV9 Software

Running Environment Temperature

0 – 45 Centigrade

Relative Humidity

30% – 75%

Packing Size

3300X2000X2000mm

N.W.

1700KG

G.W.

2000KG

Optional Parts

automatic oil-fitting system

Syntec Control System

Vacuum Pump

Rotary System

Mist-cooling System

850WYaskawa/Panasonic Servo Motors

Machine Parts of Industrial ATC CNC Router Machine with Four Spindles

Air cooling spindle.

Four Spindles for Economical ATC CNC Router Machine

Heavy duty thick seamless steel structure machine body.

Economical ATC CNC Router Machine Body

Vacuum Table for S1-IV.

Vacuum Table for S1-IV

Vacuum Table for S1-IV

Oil Mister for S1-IV.

Oil Mister for S1-IV

CNC Router Accessories for S1-IV.

CNC Router Accessories

Industrial ATC CNC Router Machine with Four Spindles for Furniture Making Projects

CNC router for cabinet making projects

Economical ATC CNC Router Machine Samples

Economical ATC CNC Router Machine Projects

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
