ST-FC1325LC flatbed 1500W fiber laser metal cutting machine combined with 150W CO2 laser cutting system is a type of professional 4×8 hybrid laser cutter to cut metals (steel, aluminum, copper, brass, titanium, alloy, iron) and nonmetals (wood, plywood, MDF, plastic, acrylic, leather, fabric).

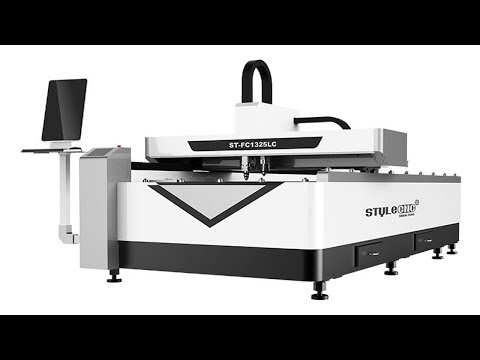

Demonstration Video
Product Details
Advantages of Fiber & CO2 Hybrid Laser Cutting System for Metal & Nonmetal
ST-FC1325LC hybrid laser cutting machine combines fiber laser cutting system and CO2 laser cutting system, which can cut 4×8 full sheet for both metal and non-metal materials all in one machine.
1. Saves the space in the workshop.
2. Fiber laser cutting and CO2 laser cutting software installed in one PC system, more convenient to operate.
3. Servo motor and ball-screw transmission guarantee the precision of outcome quality (repeat accuracy + 0.02mm).
We have different choices of the fiber laser powers for your working requirements (1000W/1500W), which are suitable for maximum thickness up to 10mm on carbon steel, 6mm on stainless steel, 3mm on aluminium sheet.
Compared with Hybrid CO2 Laser Cutter
1. Larger range of metal materials.
2. Larger range of thickness on metal cutting.
3. Higher precision due to ball screw transmission.
4. Smoother cutting edges.
5. The fiber laser and CO2 laser double heads cutter is upgrade innovation edition of normal mixed head cutter.
6. The feature of this combination leads the various of usage in all kinds of sheet metal industry.
Technical Parameters of Fiber & CO2 Combo Laser Cutting System for Metal & Nonmetal
| Model | ST-FC1325LC |
| Laser Power | 1000W Fiber Laser + 150W CO2 Laser |
| Laser Source | Raycus + Yongli |
| Laser Type | Fiber Laser and CO2 Laser |
| Working Area | 1300mm×2500×100mm |
| Transmission Method | Taiwan TBI ballscrew transmission |
| Driving System | Servo motor & driver |
| Max Moving Speed | 30m/min |
| Power Demand | 380V/50HZ or 220V/50HZ/60HZ |
| Machine Dimension | 3800*1850*1300mm |
| Control System | Au3tech control system |
| Cooling System | S&A water chiller |
Details of Fiber & CO2 Combo Laser Cutting System for Metal & Nonmetal
1. ST-FC1325LC adopts both fiber laser cutting head for metal sheet cutting and CO2 laser cutting head for non-metal cutting. It is one multi-function laser cutter in advertising industry.
2. Flatbed laser metal cutting machine with Raycus laser generator 1000W, 1500W with long laser cutting service life up to 100,000 hours and RECI brand 150W CO2 laser tube.
3. The flatbed laser cutting machine combined with non-metal cutting adopts Taiwan Delta Servo Motor with single ball screw driving system, which can ensure the high cutting precision.
4. Lubrication system for mechanic system, which can lubricate the linear guide rail to make sure the high precision in laser metal cutting machine use.
5. Flatbed laser metal cutting machine with Au3tech Control system and software in English language, applicable insert files with DXF or AI format. With nesting function, autonomic compose type for saving materials by saving spaces.

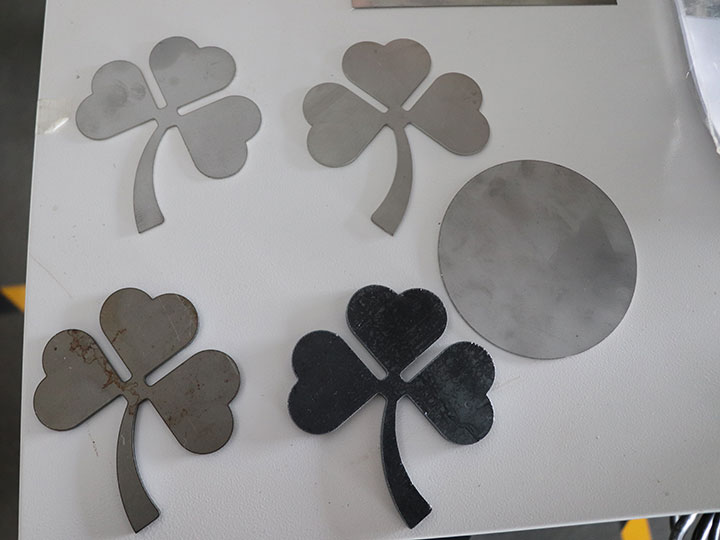

Fiber & CO2 Combo Laser Cutting System for Metal & Nonmetal Cutting Projects
Package for Fiber & CO2 Hybrid Laser Cutting Machine for Metal & Nonmetal
1. Strong water resit bottom in plywood.
2. Laser source (separated plywood case) and spare parts on the laser bed.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
Pre-Sale Service for Fiber & CO2 Combo Laser Cutting System for Metal & Nonmetal
1. Free sample cutting service:
For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.
2. Progressing Solution Design:
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
3. Customized machine design:
According to customer’s application, we may revise our machine according to customer’s convenience and high production efficiency.
After-Sale Service for Fiber & CO2 Hybrid Laser Cutting System for Metal & Nonmetal
1. We will supply the laser machine with training video and user’s manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
2. You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It’s better to arrange a translator (if no English-speaking) for our engineers during the training period.
Warranty for Fiber & CO2 Combo Laser Cutting System for Metal & Nonmetal
1. 3 years for the whole machine, laser device 18 months, chiller 12 months, lens/mirror/nozzle without warranty.
2. Long life-time maintenance, after-sale department will offer 24/7 English online support.
3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.
4. After the warranty period expired, the buyer only need to pay the actual maintenance cost.
5. Certificate support: CE, FDA, SGS.
