Dual-Purpose 4KW Fiber Laser Cutter for Metal Sheet & Tube

Dual-purpose 4000W fiber laser cutting machine is a commercial laser cutter system (1000W to 12000W for option) with fully enclosed cover and dual functions to cut metal plates & tubes of steel, aluminum, alloy, titanium, copper, brass, iron.

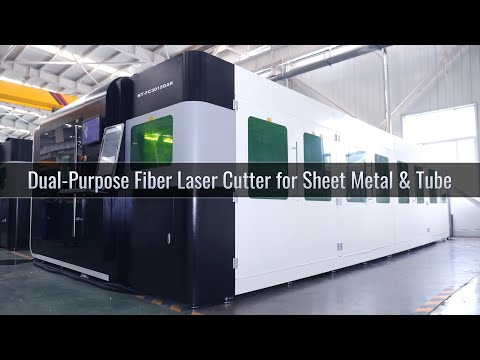

Demonstration Video

Dual-Purpose 4KW Fiber Laser Cutter for Metal Sheet & Tube

Product Details

Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe

Features and advantages of Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe

1. The machine is equipped with an exchanged double working platform. While working on one table, the other platform can load and unload the sheet workpiece;

2. Auto feeding model is driven by frequency conversation drive-down motor, high transmitting power and safety factor, enabling stepless speed adjustment for different operating frequencies;

3. Pipe cutting machine is specially designed for metal pipes, metal tubes;

4. Fully enclosed cover will keep you safe and healthy at work;

5. Imported high precision transmission device which is perfectly work with servo system, thus it can make sure cutting precision and efficiency;

6. Higher cutting quality and efficiency, cutting speed is up to 120m/min with appearance and beautiful cutting edge.

Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe

Technical Parameters of Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe

Model ST-FC3015GAR
Laser Cutting Area 1500*3000mm
Laser Power 1000W (1500W, 2000W, 3000W, 4000W, 6000W, 8000W, 12000W for option)
Max Cutting Speed 120m/min
Repeated Positioning Accuracy 0.02mm
Power Requirements 380V/50Hz/60Hz
Machine Weight 8000KG
Machine dimension 8950*3650*2350mm

Details of Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe

Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe

Swiss Raytool laser cutting head, Germany Precitec laser cutting head for choose.

Swiss Raytool laser cutting head

Swiss Raytool laser cutting head

Fiber laser visual cutting system.

Fiber laser visual cutting system

2KW IPG laser cuting source.

2KW IPG laser cuting source

Automatic exchange pallet with chain transmission.

Automatic exchange pallet with chain transmission

Dual table automatic exchanging, cutting one by one to save time.

Dual cutting table

Dual cutting table

Automatic chuck for metal tube cutting.

Automatic chuck for metal tube cutting

Automatic chuck for metal tube cutting

Applications of Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe

Applicable materials: stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials.

Applicable industries: Kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and other metal processing.

Dual-Purpose Fiber Laser Cutting Machine for Metal Sheet, Tube and Pipe Projects

Laser Metal Cutting Solutions

Fiber laser cutting machine for metal tubes and pipes projects

Laser Cut Sheet Metal Projects

Fiber Laser Cut Sheet Metal Projects

STYLECNC Package for Dual-Purpose Fiber Laser Cutter

1. Strong water resit bottom in plywood.

2. Laser source (separated plywood case) and spare parts on the laser bed.

3. Corner protect by foam and fixed by protective film.

4. All covered by strong and hard protective film.

5. Vacuum packing.

6. Inside steel frame protector.

7. Plywood packing and steel strip outside fixed the box.

8. Finishing packing by normal container or frame container.

STYLECNC Pre-Sale Service for Dual-Purpose Fiber Laser Cutter

1. Free sample cutting service:

For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.

2. Progressing Solution Design:

According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

3. Customized machine design:

According to customer’s application, we may revise our machine according to customer’s convenience and high production efficiency.

STYLECNC After-Sale Service for Dual-Purpose Fiber Laser Cutter

STYLECNC After-Sale Service

1. We will supply the laser machine with training video and user’s manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)

2. You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)

3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It’s better to arrange a translator (if no English-speaking) for our engineers during the training period.

STYLECNC Warranty for Dual-Purpose Fiber Laser Cutter

1. 3 years for the whole machine, laser device 18 months, chiller 12 months, lens/mirror/nozzle without warranty.

2. Long life-time maintenance, after-sale department will offer 24/7 English online support.

3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.

4. After the warranty period expired, the buyer only need to pay the actual maintenance cost.

5. Certificate support: CE, FDA, SGS.

If you have an idea to get a free quotation of dual-purpose fiber laser cutter, please answer the questions as following and tell us by email, so that we can recommend the most suitable laser machine and quota the affordable price to you directly.

1. Do you need to cut metal sheets/plates, metal pipes/tubes only or both?

2. If need to cut tubes, What is your tube length, diameter and max thickness?

3. For cutting metal sheet, what is the max working area required?

4. After processed, what the materials will be used for? (Applications)

5. Which seaport is the nearest to you?

6. Do you have any experience in the fiber laser cutter?

7. What is your online chat way? Such as Skype and Whatsapp.

8. Are you an end user or reseller?

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
