Double Axis Automatic CNC Wood Lathe for Baseball Bats

Double axis automatic CNC wood lathe is designed for cylindrical workpiece, tubular sharp and vehicle wood crafts such as baseball bats, staircase columns, pillar, Roman columns, general columns, table legs, chair legs, and more cylinders.

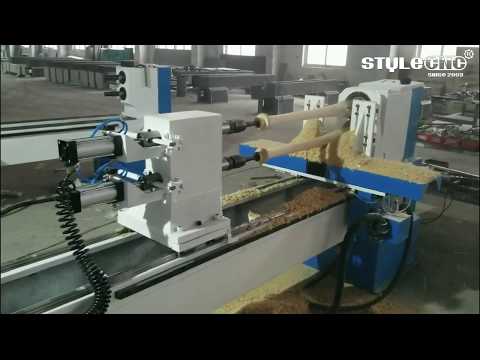

Demonstration Video

Double Axis Automatic CNC Wood Lathe for Baseball Bats

Product Details

CNC Wood Lathe for baseball bats

Applications of Double Axis Automatic CNC Wood Lathe

Double axis automatic CNC wood lathe is used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase columns, general columns, roman columns, table or chair legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children’ s bed column, etc.

Technical Parameters of Double Axis Automatic CNC Wood Lathe

Brand

STYLECNC

Model

STL1516-2

Max turning length

100mm – 1500mm

Max turning diameter

20mm – 160mm

Number of axis

double axis

Maximum feed rate

200cm/min

Minimum setting unit

0.01cm

software

including

Power supply

AC380v/50hZ or AC220V/60HZ

Overall dimensions

329*127*154cm

Weight

1600kg

Price Range

$6,380.00 – $7,680.00

Features of Double Axis Automatic CNC Wood Lathe

1. Heavy Cast iron lathe bed avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.

2. DSP handle controller with USB interface, which is easier for allign cutters.

3. Taiwan Hiwin guide rails and Germany ball screw, high precision and durable.

4. Spindle divided into the single axial and biaxial, the chuck can be mounted to the system and biaxial can produce two pieces at the same time.

5. Double axis automatic CNC wood lathe use domestic famous brand stepper motor to ensure the precision.

6. Spindle speed data is shown on the cabinet panel.

7. Only one time tool setting.

CNC Wood Lathe Machine Parts

Details of Double Axis Automatic CNC Wood Lathe

1. Center support to avoid the vibration, the steady rings inside with 2.67 inch for thin wood sticks.

certer support of baseball bats CNC lathe

2. Air cylinder to stable the baseball bats, cast iron machine body more heavy and stable.

Air cylinder to stable the work piece

air cylinder to fix baseball bats

3. Double axis with four cutters, more fast and smooth turning.

double axis with four cutters

Projects of Double Axis Automatic CNC Wood Lathe

CNC wood lathe for baseball bats

Automatic Double Axis CNC Wood Lathe for Bbaseball Bats

Double axis CNC wood lathe projects

Double axis CNC wood lathe applications

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
