Disc Automated Tool Changer CNC Router with Drum ATC Kit

Disc automated tool changer CNC router with drum type ATC kit has no need to change tools manually during machining, drum type ATC CNC router is smart to operate the working process with rotary tool changer kit.

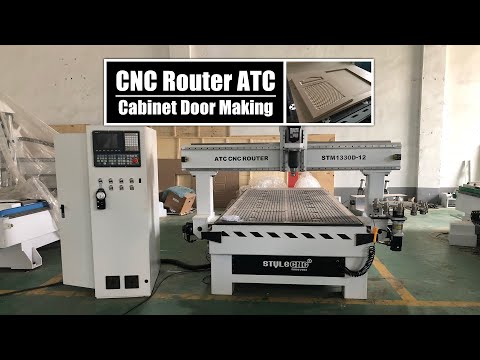

Demonstration Video

Disc Automated Tool Changer CNC Router with Drum ATC Kit

Product Details

Disc Automated Tool Changer CNC Router with Drum Type ATC Kit

Features of Disc Automated Tool Changer CNC Router with Drum Type ATC Kit:

1. HSD automatic tool changer spindle kit: original famous brand from Italian, also can choose Kolumb spindle.

2. SYNTEC Control System: It is from Taiwan with high performance and competitive price.

3. Yaskawa Servo Motor and Drives: They are from Japan with high precision and long life.

4. HIWIN linear guide rails: made from Taiwan,used for linear reciprocating stadium.

5. Working Table: 1300*2500*300mm, C Rotary Axis:360 degree.

6. Whole cast steel structure thickness to 8mm.

7. Drive System: X, Y-Rack Z-Ball Screw, Z with high precision ball screw.

8. Automatic Tool Calibration: To guide rail and slide block, make it run better.

9. Schneider electrical components: original brand from France.

10. Japanese Omron switch with long life.

11. APEX Reudcer from Taiwan: More powerful and higher precision.

12. T-Slot Table with Vacuum Table: Use clamp or pump to fix materials.

CNC Router with Automatic Tool Changer

CNC Router with Auto Tool Changer

ATC CNC Router

Automatic Tool Changer

Syntec CNC Controller

Technical Parameters of Disc Automatic Tool Changer CNC Router with Drum Type ATC Kit:

Model

ST1325D-ATC

Working Area

1300*2500*300mm

Tool magazine

8 tool position drum ATC

Max Moving Speed

30-60m/min

Max working Speed

20-25m/min

Positioning Accuracy

0.05mm

Hold mode

Vacuum+Clamp (vacuum table, Vacuum pump)

Spindle Speed

0-24000rpm/min

Spindle Power

Italy HSD 9kw air cooling spindle

Tool Diameter

2–12.7

Collect Size

ER32

Transmission

X,Y Axis High Precision Rack Gears, Z Axis Ball Screw

X,Y,Z Guide rail

Linear Square Guide Rail from Taiwan

Control System

Taiwan SYNTEC system

Driving Motor

Japan Yaskawa Servo Motor & Driver

Software

Artcam,Type3

Inverter

Taiwan Delta inverter

Command

G Code (plt, mmg, uoo, bmp)

Gross Weight

2500KG

Option system

Dust collector system

Applications of Drum Type Automatic Tool Changer CNC Router with Disc ATC kit:

Furniture Making:

Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.

Woodworking:

Voice box, game cabinets, computer tables, sewing machine table, instruments.

Plate Processing:

Insulation part, plastic chemical components, PBC, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

Decorate Industry:

Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals.

Projects of Drum Type ATC CNC Router Kit with Rotary Automatic Tool Changer:

ATC CNC Router Projects

Automatic Tool Changer CNC Router for wooden door projects

Drum Automatic Tool Changer CNC router Projects

Automatic tool changer CNC router projects

Package of CTM Type Automatic Tool Changer CNC Router Kit:

Disc Automatic Tool Changer CNC Router with Drum Type ATC Kit Package

Disc Automatic Tool Changer CNC Router with Drum Type ATC Kit Package

Service & Support for Drum Type Automatic Tool Changer CNC Router Kit with Disc ATC Spindle:

Before Sales Service

We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free.

During Sales Service

We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here.

After Sales Service

We would provide English Version working manual.

If you have any questions during using and maintaining, our engineers who could speak very good english would answer you online or by calls.

If your machine has big problems if by any chance, our engineers would arrive there to debug and fix. we provide remote control if needed.

We also have more ATC CNC routers for option:

Rotary ATC CNC Router with 4th rotary axis

Rotary ATC CNC Router with 4th Rotary Axis

ATC CNC Router with Double Drum Type Tools Magazine

ATC CNC Router with Double Drum Type Tools Magazine

Linear ATC CNC Router

Linear ATC CNC Router

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
