CNC Laser Cutter for Rubber Gaskets & Seals with CCD Camera

CNC laser cutter with CCD camera visual recognition system is used for accurate cutting gaskets & seals made of rubber, neoprene, silicone, graphite, CNAF, PTFE.

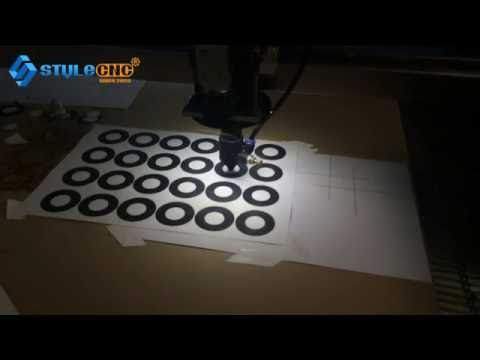

Demonstration Video

CNC Laser Cutter for Rubber Gaskets & Seals with CCD Camera

Product Details

CNC Laser Cutter for Rubber Gaskets & Seals with CCD Camera

STJ1610-CCD CNC laser cutter with CCD camera is a precision cutting system fo gaskets & seals made of neoprene, nitrile (Buna-N), ethylene propylene diene monomer (EPDM), silicone rubber, viton, styrene butadiene rubber (SBR), butyl rubber, natural rubber, cloth-inserted rubber, polyurethane rubber, food grade (FDA approved) rubber, graphite, CNAF, PTFE. The CNC laser cutter is also known as gasket laser cutting machine, rubber laser cutting machine, laser gasket cutting machine, laser rubber cutting machine, laser seal cutting machine, seal laser cutting machine.

Technical Parameters of CNC Laser Gasket Cutter with CCD Camera

Model

STJ1610-CCD camera

Cutting area

1600x 1000mm

Laser power

100W (80W, 130W, 150W for option)

Laser type

CO2 sealed laser tube, water-cooled, 10.6um

Cutting speed

0-40000mm/min

Engraving speed

0-70000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

AC 110 – 220V ± 10%, 50 – 60Hz

Operating temperature

0 – 45°C

Operating humidity

5 – 95%

Min shaping character

English 1.0mm x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

Tajima,CorelDraw, PhotoShop, AutoCAD

Driving system

Stepper

Cooling mode

Water-cooling and protection system

Optional Spare Parts

Up-down table, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens

Features of CNC Laser Rubber Cutter for Gaskets & Seals with CCD Camera

1. The CCD camera laser rubber cutter can compensate automatically to pinpoint of the rubber, it ensures the accuracy of cutting.

2. The camera can get every edge of the objection and extend (entad or forth) expected distance, and then cut them.

3. Install 2-3 million pixel colorful camera, which can do accurately locating cutting for those edge-immovable objections.

4. Adopt high quality CO2 laser tube, longer service life, the output is more stable.

Details of CNC Laser Gasket Cutter with CCD Camera

STJ1610-CCD Laser Gasket Cutting Machine

Auto Focus Laser Rubber Cutting Machine

Auto Focus Laser Rubber Cutting Machine

High Resolution Camera of CNC Laser Rubber Gasket Cutting Machine

High Resolution Camera of CNC Laser Rubber Gasket Cutting Machine

WIFI Receiver of CCD Laser Rubber Seals Cutting Machine

WIFI Receiver of CCD Laser Rubber Seals Cutting Machine

Easy Operate RD Controller of CNC Laser Gasket Cutting Machine

Easy Operate RD Controller of CNC Laser Gasket Cutting Machine

Projects of CNC Laser Rubber Cutter for Gaskets & Seals with CCD Camera

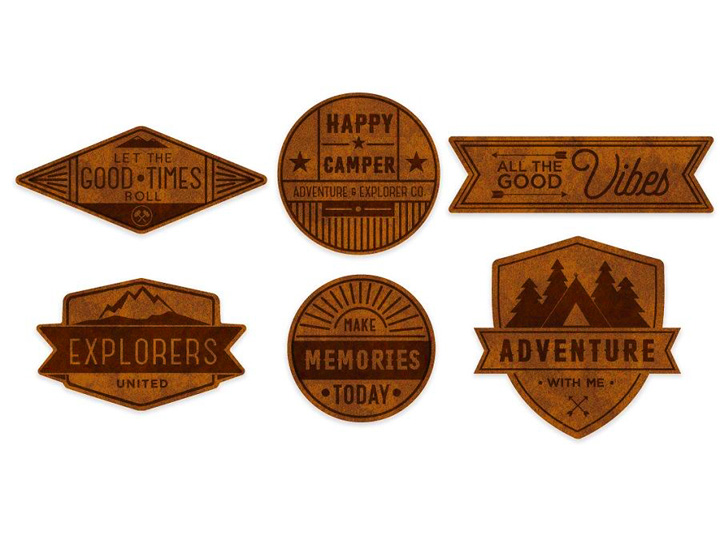

Laser Cut Realistic Leather Badges Labels

Laser Cut Realistic Leather Badges Labels

Laser Cut Rubber Gaskets Projects

Laser Cut Rubber Gaskets Projects

Laser Cut Gaskets & Seals Projects

Laser Cut Gaskets & Seals Projects

Laser Cut Fabric Projects

Laser Cut Fabric Projects

STYLECNC provides the professional laser engraving and cutting solutions, welcome to send inquiry with your requirements.
