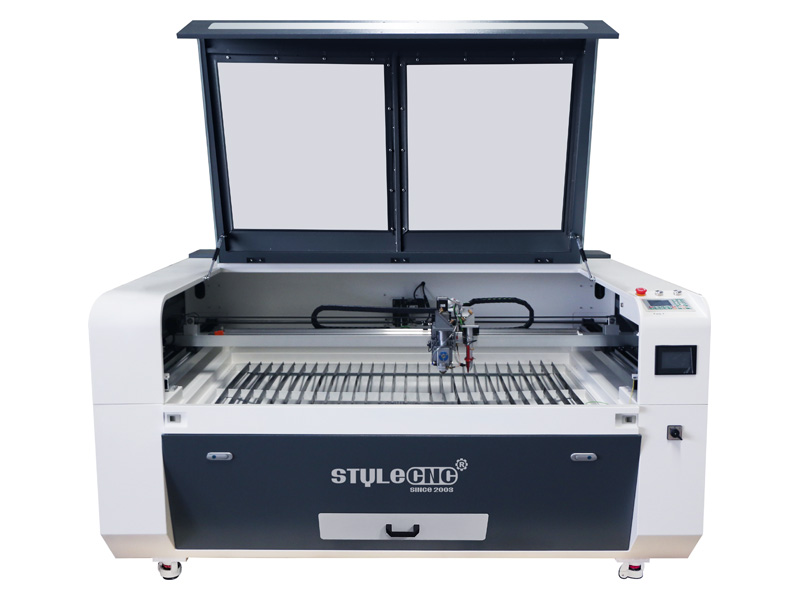

Best Budget CO2 Laser Cutter for Metal, Acrylic, Wood

STJ1610M-2 cheap CO2 laser cutter for metal, acrylic, and wood with best budget adopts sealed CO2 glass laser tube, which is used for cutting thin metals (1.5mm SS and 2.5mm CS) and thick nonmetals (30mm acrylic sheet and 25mm wood panel).

Demonstration Video

Best Budget CO2 Laser Cutter for Metal, Acrylic, Wood

Product Details

Best Budget CO2 Laser Cutter for Metal, Acrylic, Wood

Configurations of Best Budget Laser Cutter with Sealed CO2 Glass Laser Tube for Metal, Acrylic, Wood

1. Table size is 1600*1000mm.

2. RECI CO2 laser tube.

3. Auto following cutting head.

4. Ruida RD6332M control system.

5. Leadshine stepper motor and driver.

6. Taiwan Hiwin rail guide.

7. Belt transmission.

8. America lens and mirrors.

9. Blade table.

10. Air pump.

11. Water chiller CW6000.

12. Dust collector 550w.

13. Standard tool box.

Technical Parameters of Best Budget CO2 Laser Cutter for Metal, Acrylic, Wood

Model

STJ1610M-2

Laser Type

Sealed CO2 Glass Laser Tube

Laser Cutting Power

150W, 180W, 220W, 300W

Laser Engraving Power 80W

Laser Cooling Type

Industrial water chiller

Control System

RDC6332M

Format Support

plt, ai, dxf, bmp, jpg, png, dst, dsb, and so on

PC Interface

USB cable and USB disk

Drive type

Stepper System

Guide way

Linear square guide way, belt transmission

Laser head follow-up

YES

Repeated positioning accuracy

≤0.05

Work Area

1600*1000mm

Working Platform

Balde table

Purging system

YES

Laser head gas-assisted

Metal material: O2

Non-metallic material: air

Total power

<2500W

Power Supply

AC 220V±10%/50~60HZ

Details of Best Budget CO2 Laser Cutter for Metal, Acrylic, Wood

Ruida Control System

Mixed Laser Cutting Head

CO2 Laser Generator

RECI CO2 Laser Tube

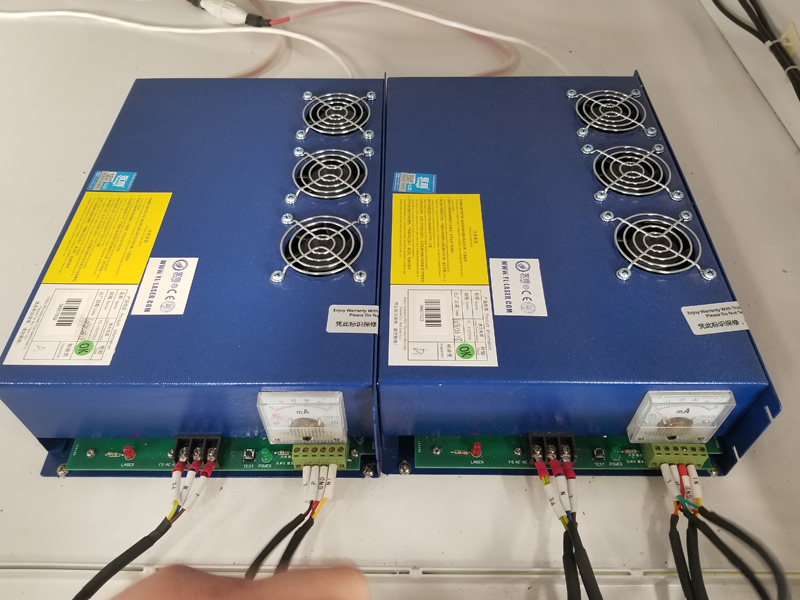

Mixed Laser Cutter Power Box

Applications of Best Budget Laser Cutter with Sealed CO2 Glass Laser Tube for Metal, Acrylic, Wood

Metals: Carbon steel, stainless steel, galvanized sheet, and other metal materials.

Nonmetals: Wood, acrylic, MDF, plywood, plastic, fabric, textile, leather, and other nonmetal materials.

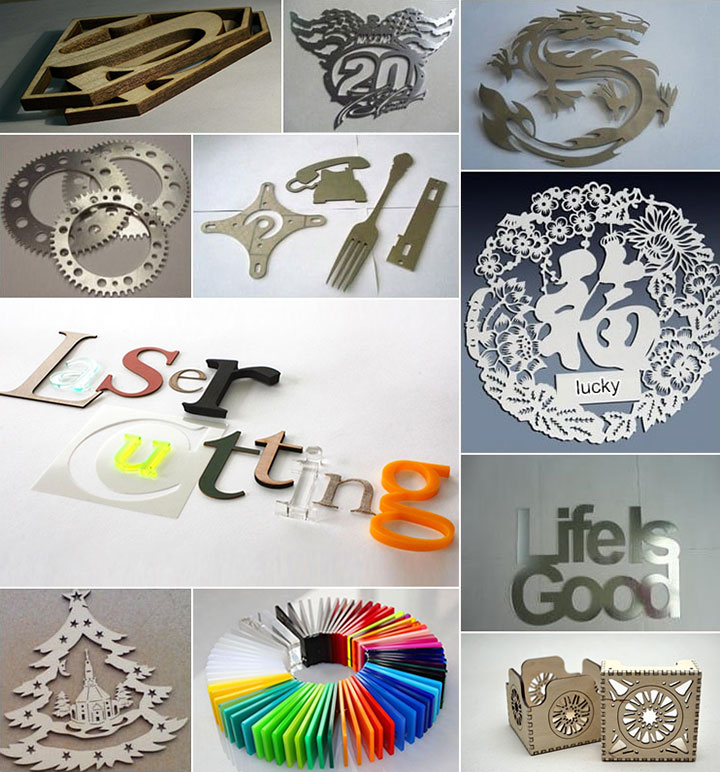

Best Budget CO2 Laser Cutter for Metal, Acrylic, Wood Projects

Acrylic laser cutting projects

Carbon steel laser cutting projects

Laser Cutter for Metal and Nonmetal Projects

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
