Automatic 3 Axis Wood Lathe Machine for Commercial Use

Automatic 3 axis wood lathe machine for commercial use with three turning axis can work on three cylinders with max 120mm diameter and 1500mm length at the same time, and the turning length can be customized to 2000mm, 2500mm or 3000mm.

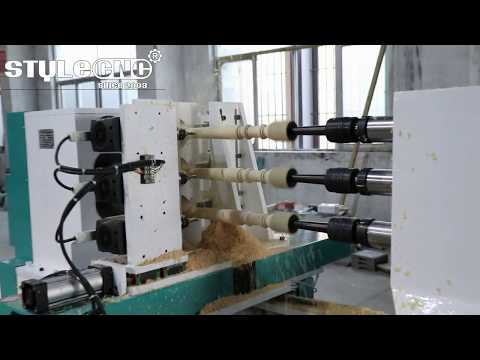

Demonstration Video

Automatic 3 Axis Wood Lathe Machine for Commercial Use

Product Details

Automatic 3 Axis Wood Lathe Machine for Commercial Use

Applications of Automatic 3 Axis Wood Lathe Machine for Commercial Use

3 Axis Wood Turning Lathe Machine is applied to wooden cup, wooded bowl, tubular shape and vehicle wood crafts, cylindrical workpiece, staircase column, Roman column, general column, table or chair legs, washstand, wooden vase, wooden tables, baseball bats, car wooden furnitures, children’ s bed columns, etc. 3 Axis Wood Turning Lathe Machine can be equipped with spindles with function of carving, slotting, hollowing on wood strip.

Technical Parameters of Automatic 3 Axis Wood Lathe Machine for Commercial Use

Brand

STYLECNC

Model

STL1512-3S3

Max turning length

1500mm

Max turning diameter

120mm

Number of axis

3 axis

Maximum feed rate

2000mm/min

Minimum setting unit

0.1mm

Spindle motor power

3.5kw air cooling spindle

software

including

Power supply

AC380V/50hZ (AC220V for option)

Price Range

$8,780.00 – $9,080.00

Features of Automatic 3 Axis Wood Lathe Machine for Commercial Use

1. Big torque stepper motor and Yako driver guarantee wood turning with high speed.

2. Driving system: High quality square rails from Taiwan Hiwin and TBI precise ball screw, which can control the linear error effectively.

3. Best inveter: The wood turning lathe machine adopts frequency conversion speed regulation system, which can adjust the turning speed at any time to solve the problem of materials’ vibration.

4. Operation system: The wood turning lathe machine adopts DSP controller, easy to operate, easy to learning.

5. Spindles are optional, the wood turning lathe machine can be equipped with single spindle, double spindles or 3 spdinles, single spindle could configure with chuck for bowl, cup shape turning.

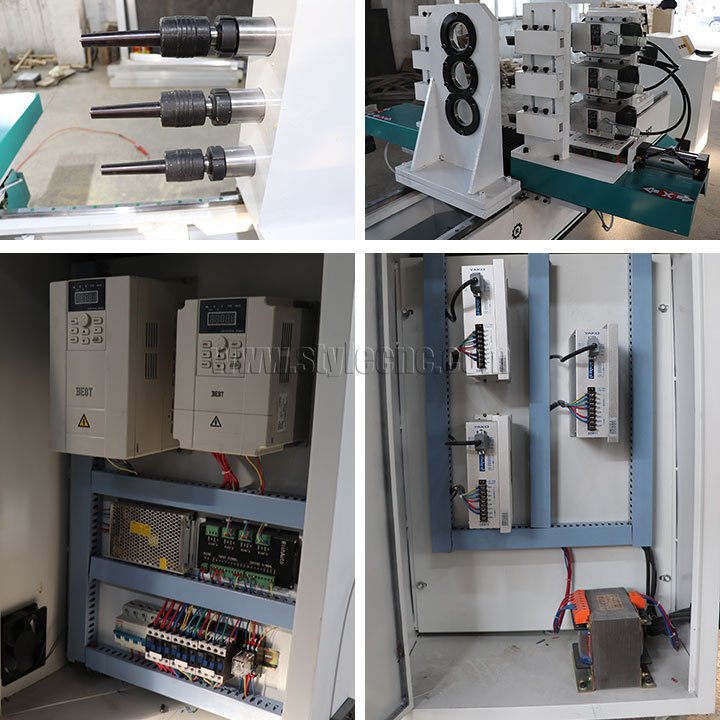

3 Axis Wood Turning Lathe Machine Parts

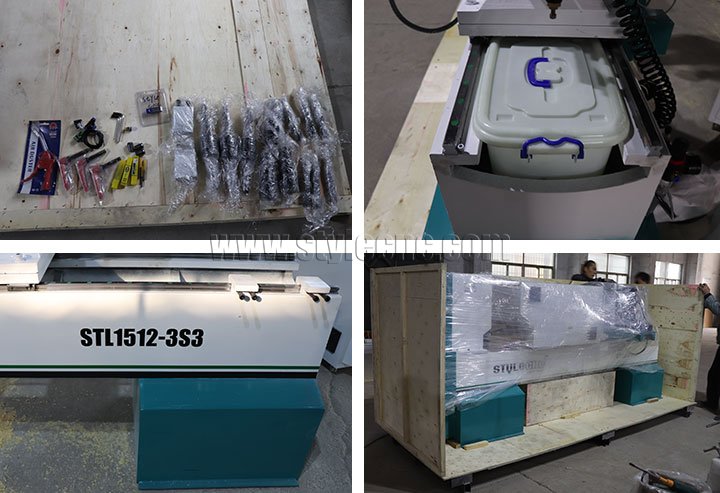

Package of Automatic 3 Axis Wood Lathe Machine for Commercial Use

3 Axis Wood Turning Lathe Machine Parts is shipped with all the necessary parts, STYLECNC wood turning lathe machine can be used to work directly when it arrival.

Such as blades, tailstock, thimble, USB or CDs with software program, Hexagon ring spanner, bucket, collets and bits, etc.

3 Axis Wood Turning Lathe Machine Package

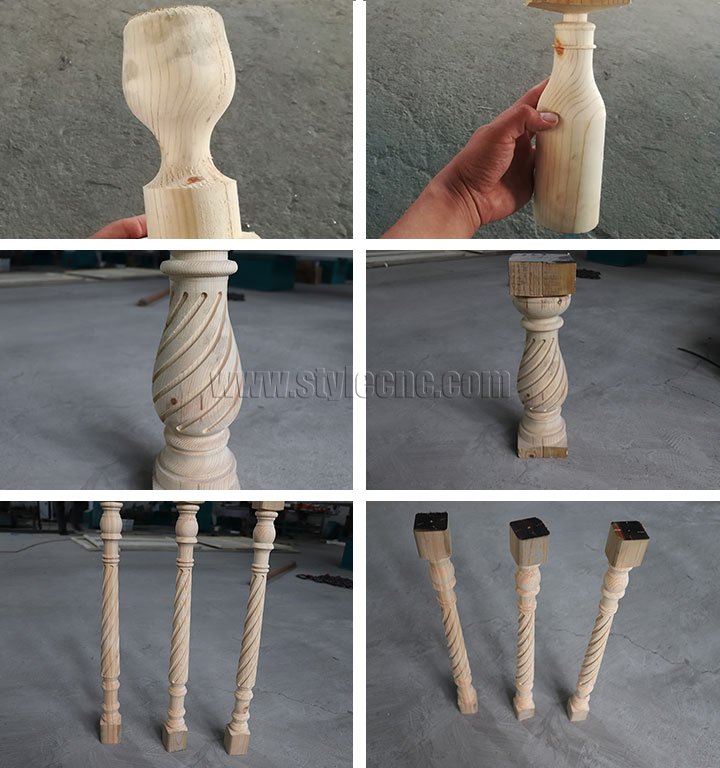

Automatic 3 Axis Wood Lathe Machine for Commercial Use Projects

3 Axis Wood Lathe Machine for Wood Turning Projects

3 Axis Wood Turning Lathe Machine

STYLECNC has all kinds of Wood Lathe Machines for Different Wood Turning Projects

CNC wood lathe machines

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
