Affordable Industrial 3 Axis CNC Router Kit for Woodworking

Demonstration Video

Product Details

3 axis is refer to the three axes of the coordinate axis, namely X-axis, Y-axis, and Z-axis, where X represents the left and right space, Y represents the front and rear space, and Z represents the upper and lower space, thus forming the human visual stereoscopic sense. With the help of CNC controller software, 3 axis CNC router machine is applied to flatbed cutting, 2D caving and 2.5D carving on various flat materials. 3 axis CNC router kit adopts dust-proof design, gantry-type movement, and the bed is integrally cast, which is strong and durable.

Industrial 3 Axis CNC Router Kit Features

1. The three-process is smart and economical equipment with automatic tool changer. Through the automatic change of three independent electric spindles, the automatic machining of multi-process is completed.

2. The tool changer mode is immediate and instant change of the spindle.

3. Lathe bed adopts strong welded steel tube to avoid distortion.

4. The high power air cooling spindle is used to achieve precision higher, longer service life, uniform speed, running stable, rapidly change the necessary props at random which can save the machining time and enhance the working efficiency.

5. Square linear rail with high accuracy and heavy burthen.

6. The screw rack transmission with high precision, and the servo motor with high resolution and fine mixing, the straight guide rail with high rigidity, levelness and flexible transmission.

7. All processes will be completed after the startup of the tool one time to shorten the tool change and matching time, thus the tool is applicable to the product for which the tool has to be changed for several times.

8. The 3 axis CNC router machine is applicable to produce the cupboard door, solid wood door, computer table, panel furniture and so on, it is used for the works of high-density boards with large area and production, plane carving, cutting, 3D carving, etc.

Industrial 3 Axis CNC Router Kit Applications

1. Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

2. Wood products: Voice box, game cabinets, computer tables, sewing machines table, instruments.

3. Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Industrial 3 Axis CNC Router Kit Technical Parameters

Brand	STYLECNC
Model	S1-III
Working Area	1300x2500x200mm
Table Size	1450x2940mm
Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Reposition Accuracy	±0.03mm
Table Surface	Vacuum Table
Frame	Welded Structure
X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption	(Without Spindle) 3.0Kw
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Power	2*3.5KW+6KW
Spindle Speed	0-18000RPM
Drive Motors	Easy servo System
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
Command Language	G Code
Operating System	Nc studio control system
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER20
X,Y Resolution	<0.03mm
Software Compatibility	Type3/UcancameV9 Software (Option: Artcam Software)
Running Environment Temperature	0 – 45 Centigrade
Relative Humidity	30% – 75%
Packing Size	3300X2100X2300mm
N.W.	1800KG
G.W.	2000KG
Price Range	$12,200.00 – $13,300.00

Detail Pictures of Industrial 3 Axis CNC Router Kit for Woodworking

Industrial 3 Axis CNC Router for Woodworking Projects

All Types of 3 Axis CNC Routers for Woodworking from STYLECNC

Service for Industrial 3 Axis CNC Router Machines

1. The three-axis woodworking CNC machine is guaranteed for one year. If the main components have problems during the warranty period, we will replace them for you free of charge.

2. Free training course at our plant.

3. Lifetime maintenance free of charge.

4. 24 hours on line service each day, free technical support.

5. We will provide the consumable parts at an agency price when you need replacement.

6. Our staff can be sent to your company to install or debug if necessary.

7. The 3 axis wood CNC machine has been adjusted before shipping.

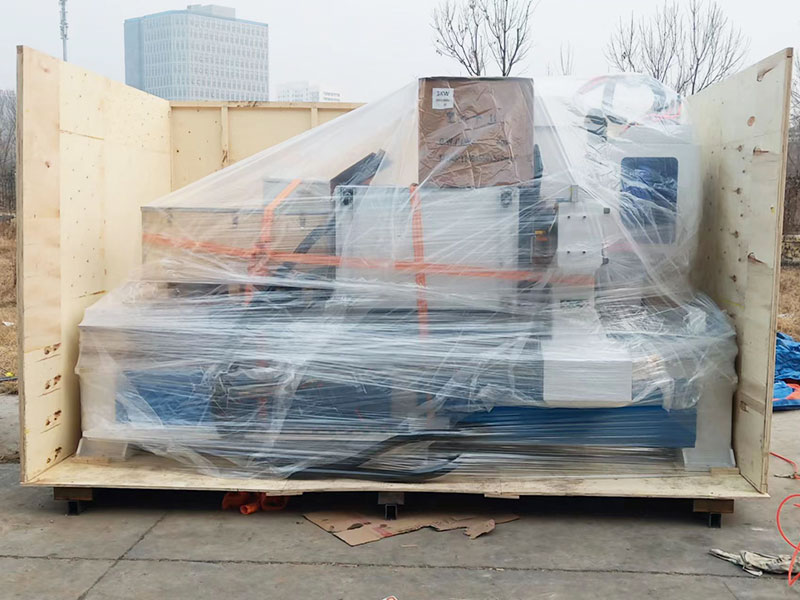

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

Customer Reviews and Testimonials

• Stuart Brown from United KingdomExcellently designed structure. The operating instructions are some of the best I ever have seen, usually, other company just provide some vague instructions. The one thing that really stood out for me was the quick response and help I got when I did run into a few glitches, mostly due to my inexperience but the help was immediate. I would definitely recommend this CNC router not just has good performance and price, but also their customer service is perfect.
• Douglas C Rasia from CameroonBest option out there for a CNC router machine. The service is nearly perfect. The support from STYLECNC is second to none. I emailed him that I was having trouble with a switch and after they confirmed the problem. They asked for my address so he could send me a replacement!
• K. Algra from NetherlandsI have no CNC experience what so ever. After buying this machine, and a few weeks of self-training I am making projects that I can’t believe that I did it. I did have a few problems, in the beginning, contacted STYLECNC tech support and with one email from them the problem was solved.
• Martin Grace from IrelandWorked great for what I needed it for. Fit my S1-III perfectly. All parts needed to operate to the router were included in the kit. Has more functionality than what I needed for my project, which is great for future work.
• Costel Vodarici from RomaniaI love my STYLECNC routers (have 3 spindles) Fast, Accurate, Easy to operate. Very well made. If you want to do great work with your CNC router, go to STYLECNC.
• Joe Menafra from United StatesEverything in this CNC kit was perfect, assembly is pretty straightforward, easy to connect to my laptop, even ran a few cuts. Better than I could imagine doing it.
• Mark Moore from United StatesI’ve never used a CNC kit like this before only hand routers. I purchased the S1-III last month and it runs great with no issues. Great manufacturer.
