4×8 Linear ATC CNC Wood Router 1325 for Woodworking on Sale

4×8 linear ATC CNC wood router 1325 with SYNTEC control system is designed for cabinet making, door making, furniture making, home decorations, wood crafts, musical instruments, windows, and tables. Now the best 4×8 ATC wood CNC machine 1325 with linear automatic tool changer kit for sale at affordable price.

Demonstration Video

4x8 Linear ATC CNC Wood Router 1325 for Woodworking on Sale

Product Details

4x8 Linear ATC CNC Wood Router 1325 for Woodworking

4x8 Linear ATC CNC Wood Router 1325

Applications of 4×8 Linear ATC Wood CNC Router 1325 with Automatic Tool Changer

Linear ATC wood CNC machine is mainly used in furniture making industry, furniture decoration industry, wood craft industry, wood decoration industry, automotive tooling industry, solid wood furniture,classical furniture, decoration material, door cabinets, wooden kitchen furniture ,etc.

Linear ATC wood CNC machine is designed for wood materials and other materials processing such as Aluminum, Acrylic, MDF, PVC, etc.

Features of 4×8 Linear ATC CNC Wood Router 1325 with Automatic Tool Changer

1. Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

2. Japanese YAKSAWA servo motor makes machine stable running with low noise, high speed and high accuracy.

3. Italy HSD spindle makes machine with high precision and long service time and stable movement.

4. Configured with imported tool magazine of 8 tools the machine can change tools speedy and freely. Changing tools in 8 seconds.

5. Tool sensor enables the machine compensate the tolerance of the tool length.

6. Strong power suction of Yongdun free-oil pump.

7. Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display add machine more versatility.

8. Strong dust collector ensures site cleanliness during the machine operation.

9. Automatic lubricating system, one touch can finish periodic maintenance easily.

Technical Parameters of 4×8 Linear ATC CNC Wood Router Machine 1325

Model STM1325CH
Working Area 1300*2500*300mm
Resolution 0.01mm
Lathe Structure Seamless welded steel structure, better than cast iron one
X,Y Structure Rack and pinion, gear drive,
Taiwan Hiwin H30 square guide rails
Z Structure Z axis Taiwan TBI ball screw,
Taiwan Hiwin H30 square guide rails
Max. Idling Speed 60m/min
Spindle HSD 9.0kw air-cooling spindle
Spindle Speed 0-24000r/min, variable speed
Working Voltage AC380V/50Hz
Motor and driver Yaskawa from Japan
Working Mode Servo
Command G code (HPGL,U00,mmg,plt)
Operating System SYNTEC control system
Diameter of Cutter φ3.175-φ12.7
Cooling Mode Air-cooling
Dust-collect Function Yes
Work Holding By suction or clamp

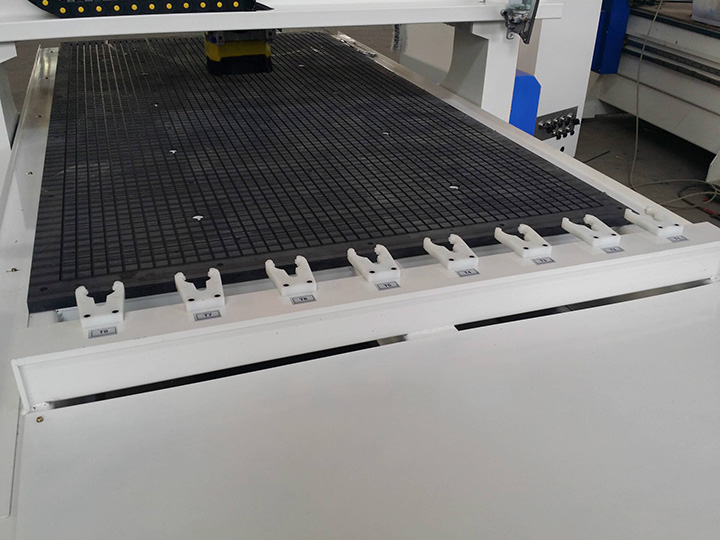

Tool Magazine Linear-style auto-tool changer system with 8 pieces of tools
Net Weight 2300KG

Main Parts of 4×8 Linear ATC CNC Wood Router Table 1325 with Automatic Tool Changer

CNC wood carving machine

9kw HSD ATC spindle

Linear ATC System

Linear Automatic Tool Changer

Seamless welded steel structure

Syntec Control System

4×8 Linear ATC CNC Router for Woodworking Projects

Linear ATC CNC Wood Router for Wooden Door Making Projects

Linear ATC CNC Wood Router for Cabinet Door Making Projects

Linear ATC CNC Wood Router for Relief Carving Project

Linear ATC CNC Wood Router for Hollow Carving Project

We also have other ATC CNC routers with automatic tool changer kits for option:

Disc ATC CNC Router

Disc ATC CNC Router

ATC CNC Router with Double Disc Tools Magazine

ATC CNC Router with Double Disc Tools Magazine

Disc ATC CNC Router with 4th rotary axis

Disc ATC CNC Router with 4th rotary axis

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
