4×8 Glass Cutting & Carving CNC Router Machine for Sale

4×8 glass CNC router machine is used for cutting and carving glass, wood, MDF, acrylic, plastic, aluminum, and copper. Now the affordable glass CNC cutting & carving machine for sale at cost price.

Demonstration Video

4x8 Glass Cutting & Carving CNC Router Machine for Sale

Product Details

4x8 CNC Router for Glass

Features & Advantages of 4×8 Glass Carving CNC Router Machine

1. Lathe bed adopts strong welded steel tube to avoid distortion.

2. Y axis adopts double motors to keep stable moving.

3. High accuracy Rack Rail travel method with high speed.

4. Imported Square Liner Rail,high accuracy,heavy burthen.

5. Humanization Design of lathe bed vacuum and easy working.

6. Intelligent protecting working fable.

7. Break-point memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.

8. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc.

Technical Parameters of 4×8 Glass Cutting CNC Router Machine

Model

STM1325G

Working Area

1300x2500x250mm

Table Size

1450x2940mm

Traveling Positioning Accuracy

±0.03/300mm

Reposition Accuracy

±0.03mm

Table Surface

T-slot Table

Frame

Welded Structure

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption

(Without Spindle) 3.0Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

3.0kw+Glass knife

Spindle Speed

0-24000RPM

Drive Motors

Stepper System

Working Voltage

AC220V/50/60Hz,3PH (Option: 380V))

Command Language

G Code

Operating System

NC Studio control system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER20

X,Y Resolution

<0.03mm

Software Compatibility

Type3/UcancameV9 Software (Option: Artcam Software)

Running Environment Temperature

0 – 45 Centigrade

Relative Humidity

30% – 75%

Packing Size

3160X2160X1800mm

N.W.

950KG

G.W.

11800KG

4×8 Glass CNC Router Machine Applications

Glass CNC router machines are widely used for glass cutting and carving, single lines, milling, 3D cutting and engraving in furniture processing industry, woodworking decoration, wood art work, home decoration and doors manufacturing.

Details of 4×8 CNC Router for Glass Cutting & Carving

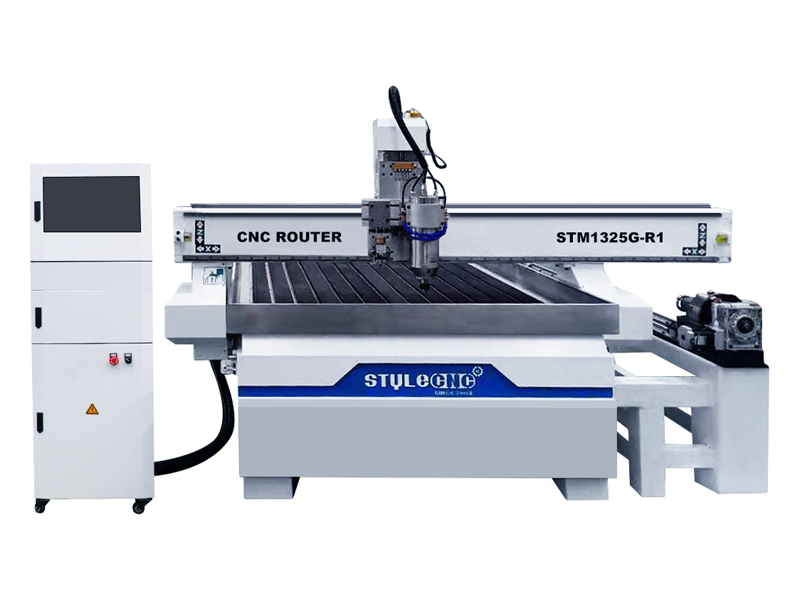

Glass CNC Router Machine

Glass CNC Router Machine

CNC Router Spindle for Glass, Wood, Metal and Stone

Glass Cutting & Carving Head for CNC Router

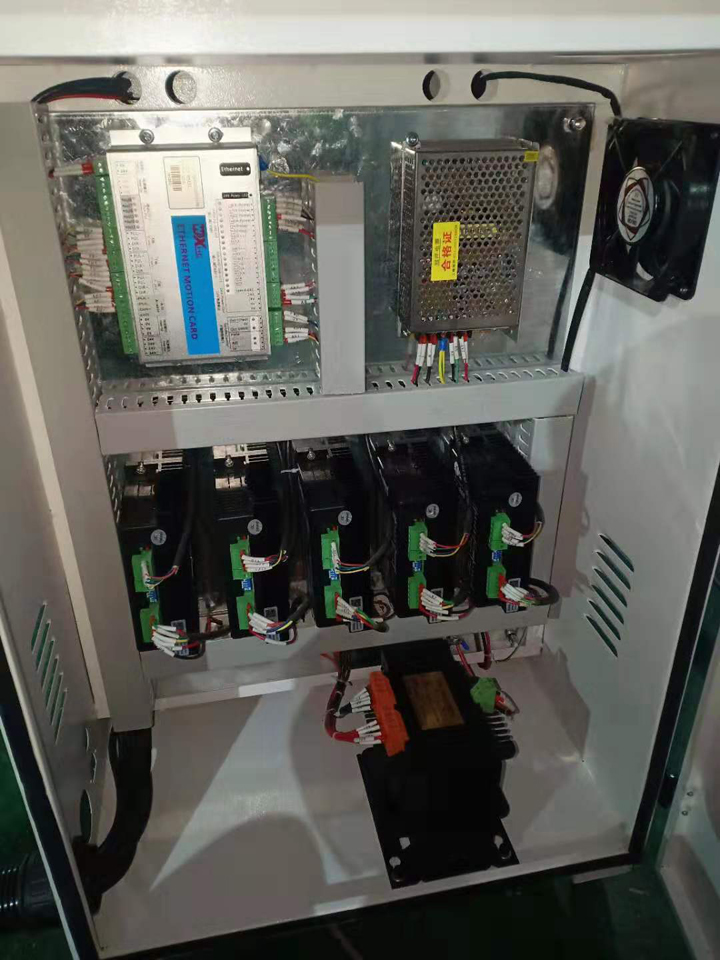

Control box

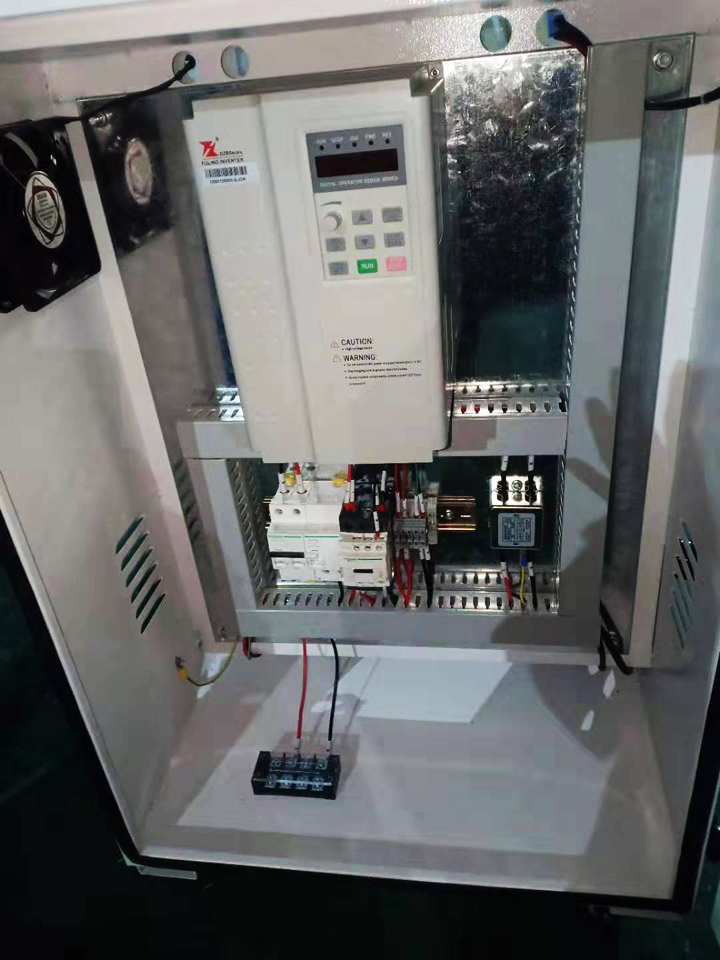

Electric box of glass cutting and carving CNC router

STM1325G-R1 4×8 CNC Router for Glass Cutting and Carving Projects

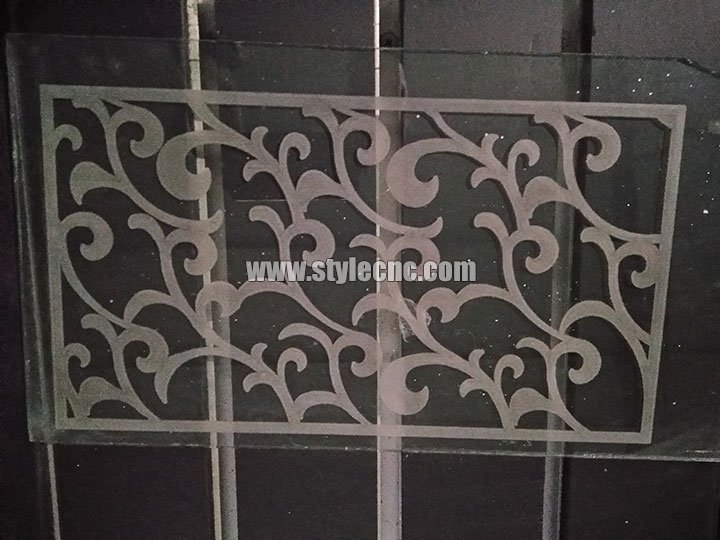

CNC Router Carving Glass Project

CNC Router Cutting Glass Project

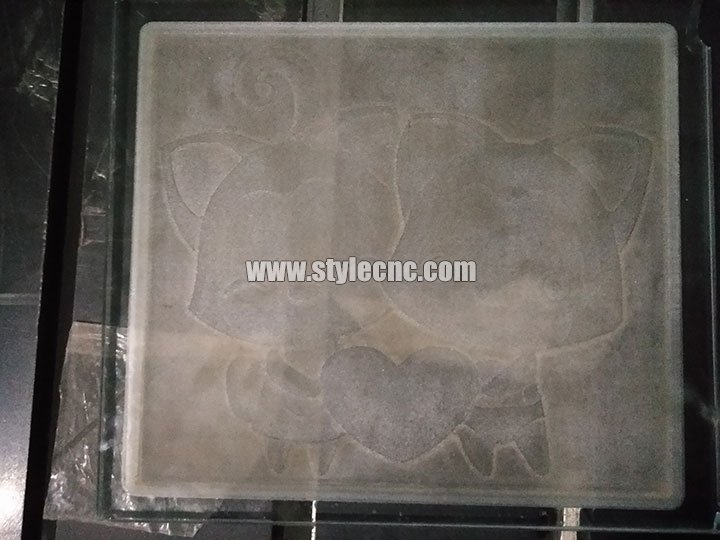

CNC Router for Glass Carving Project

CNC Router for Glass Cutting Project

CNC Router for Glass Project

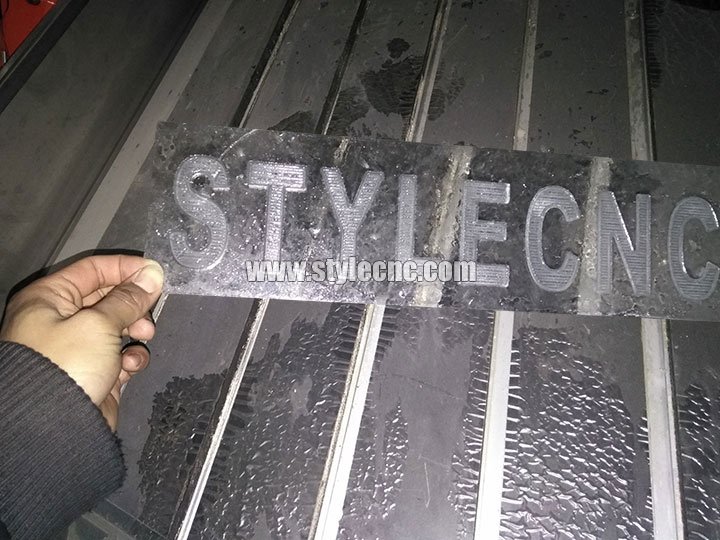

CNC Router for Glass Cutting/Carving Sample

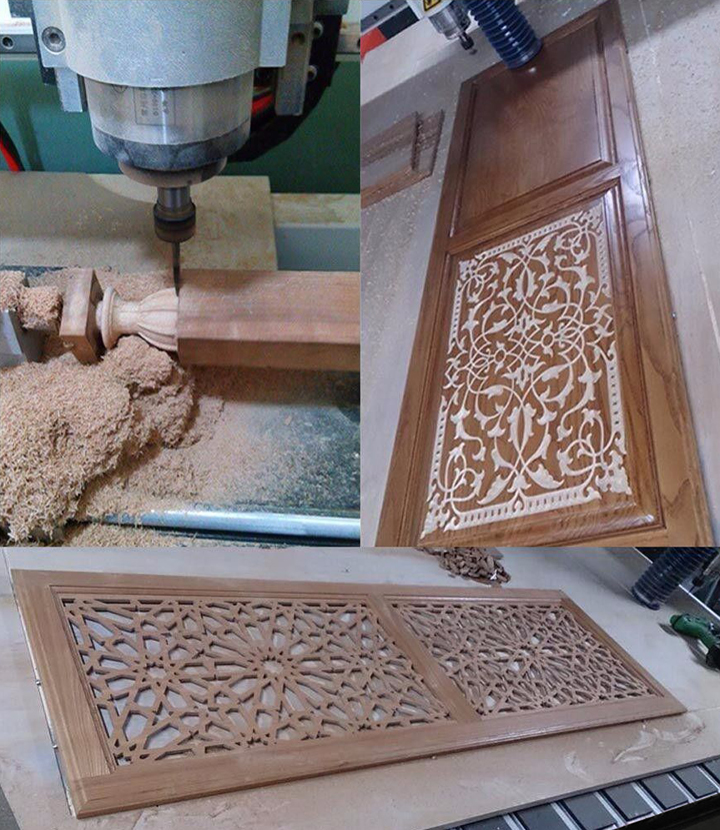

STM1325G-R1 4×8 CNC Router for Woodworking Projects

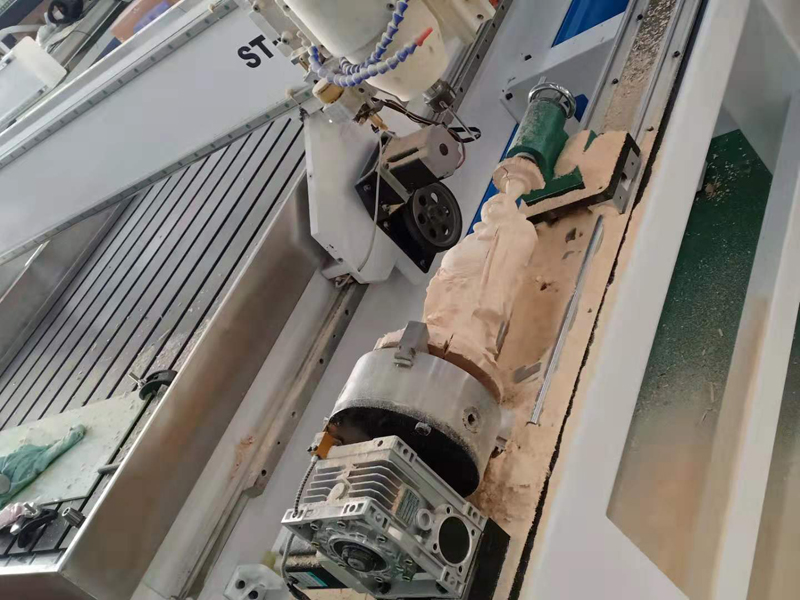

STM1325G-R1 CNC Router for 3D Woodworking Projects

STM1325G-R1 CNC Router for Woodworking Projects

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
