4×8 Flatbed Laser CNC Engraving Cutting Machine for Sale

4×8 flatbed laser CNC cutter engraving machine is used to engrave and cut stainless steel, aluminum, galvanized sheet, acrylic, MDF, wood, plywood, die board. Now the flatbed 4×8 CNC laser engraver cutting machine for sale at affordable price.

Demonstration Video

4x8 Flatbed Laser CNC Engraving Cutting Machine for Sale

Product Details

4x8 Flatbed Laser CNC Engraving Cutting Machine

Applications of 4×8 Flatbed Laser CNC Engraving Cutting Machine

The 4×8 flatbed laser CNC machine is available for engraving and cutting metal and nonmetal materials, such as stainless steel, galvanized sheet, carbnon steel, acrylic, MDF, solid wood, die board, etc.

Technical Parameters of 4×8 Flatbed Laser CNC Engraving Cutting Machine

Model

STJ1325M-2

Table Size

1300mm*2500mm

Laser Power

300W+80W

Laser Type

CO2 sealed laser tube, water-cooled

Driving System

3 phases leadshine brand stepper motor

Transmission

Fulong brand Belt transmission

Guide Way

Taiwan Hiwin Square guide rails

Control System

Ruida control system

Lens and Mirrors

3pcs mirrors and 1pcs lens from America

Working Table

Blade table

Red Pointer

Included

Engraving Speed

0-7500mm/min (According to the materials)

Cutting Speed

0-4000mm/min (According to the materials)

Power Supply

220V/50HZ , 110V/60HZ

Graphic Format Supported

BMP, PLT, DST, DXF, AI

Software Supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Optional Parts

Up-down worktable

Auto focus

Rotary device

CCD camera

Flatbed 4×8 Laser CNC Engraving Cutting Machine Features

Flatbed 4x8 Laser Engraving Cutting Machine

Flatbed 4x8 Laser Engraver Cutting Machine

Flatbed 4x8 Laser Cutter Engraving Machine

Advanced LCD Screen + USB port + Offline Control, professional motion control chip, the function of consecutively high-speed curve cutting and the shortest path selection, which highly improved your working efficiency.

Control panel for 4x8 Laser Engraving Cutting Machine

New-style beam combined laser tube 280W adopted for cutting and 80W laser tube for engraving in 4×8 laser engraving cutting machine. Laser beam is more stable than the traditional type. Usage age is more than 10,000 hours.

RECI laser tube

Flatbed 4x8ft laser cutter & laser engraver adopts high quality lens and mirrors from America with good reflective effect.

Lens and Mirror for Multi-function 4x8 Laser Engraving Cutting Machine

Flatbed 4*8ft  laser CNC engraver & laser CNC cutter with double laser heads, the metal laser cutting head with auto following system,it can keep high precision cutting always with full metal sheet, the other head for engraving with lower power.

laser cutting head

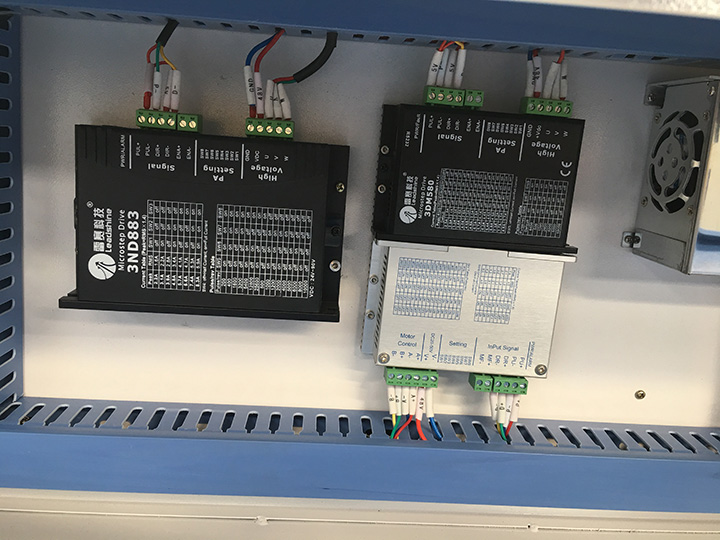

Leadshine brand stepper motor and drivers transmission,no need feedback signal to control with high precision.

Motor and Driver for Multi-function 4x8 Laser Engraving Cutting Machine

Auto Focus Controller of 4×8 Flatbed CNC Laser Engraving Cutting Machine.

Mirror frames for Multi-function 4x8 Laser Engraving Cutting Machine

Optional Rotary Device of Multi-function 4×8 Laser Engraving Cutting Machine.

Rotary device for Multi-function 4x8 Laser Engraving Cutting Machine

Flatbed 4×8 CNC Laser Engraving Cutting Machine Projects

Flatbed 4x8 Laser Cutting Machine for Acrylic Projects

Flatbed 4x8 Laser Engraving Cutting Machine Projects

Flatbed 4x8 Laser Cutting Machine for Wood Projects

Flatbed 4x8 Laser Cutting Machine for Plywood Projects

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
