4×8 ATC CNC wood carving machine is a type of automated wood CNC machine with tool changer for carving and cutting home doors, cabinets, furniture, tables, and other popular woodworking. Now the wood CNC carving machine for sale at affordable price.
Demonstration Video

Product Details
4×8 ATC CNC Wood Carving Machine Configurations and Advantages
1. Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2. Vacuum worktable with European Standard is equipped with this CNC wood carving machine for carpentry, positioning cylinder can be added which make materials positoning easily and fast.
3. Japanese YAKSAWA servo motor makes machine stable running with low noise, high speed and high accuracy.
4. Italy HSD automatic tool changer spindle makes machine with high precision , long service time and stable movement.
5. Linear guide rail: Taiwan linear guide rail with high precision, heavy loading and durable.
6. Configured with disc tool magazine of 10 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.
7. Auto tool sensor enables the machine compensate the tolerance of the tool length.
8. Strong power suction Vacuum pump Yongdun free-oil pump.
9. Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display,can alter the parameters and automatically change the tool.
10. Strong dust collector ensures site cleanliness during the machine operation.
11. Automatic lubricating system, one touch can finish periodic maintenance easily.
4×8 ATC CNC Wood Carving Machine Applications
Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
The wood products: Three-dimensional wave plate processing, cupboard doors, wooden doors,window processing,video game cabinets and panels, computer table and Plate furniture auxiliary processing.
The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Technical Parameters of 4×8 ATC CNC Wood Carving Machine
Model |
STM1325D |
Working Area |
1300*2500*300mm |
Table Size |
1500*2610mmmm |
Resolution |
0.01mm |
Lathe Structure |
Steel welded steel structure, better than cast iron one |
X,Y Structure |
Rack and pinion, gear drive, Taiwan Hiwin H25 square guide rails |
Z Structure |
Taiwan TBI ball screw, Taiwan Hiwin H25 square guide rails |
Max. Idling Speed |
60m/min |
Spindle |
9.0 KW air-cooling Italy HSD spindle |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Motor and driver |
YASKAWA |
Working Mode |
Servo |
Command |
G code (HPGL,U00, mmg, plt) |
Operating System |
SYNTEC control system |
Diameter of Cutter |
φ3.175-φ12.7 |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Work Holding |
By suction or clamp |
Tool Magazine |
Linear-style auto-tool changer system with 8 pieces of tools |
4×8 ATC CNC Wood Carving Machine Features
ATC CNC wood carving machine pictures in factory.
Rotary Axis for ATC CNC wood carving machine.
Taiwan Syntec control system.
Servo tool magazine.

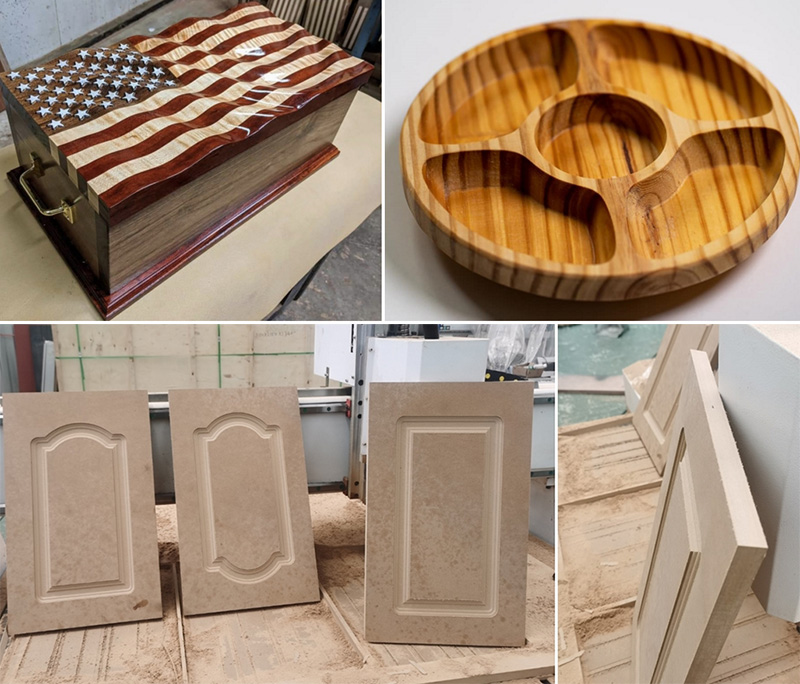

4×8 ATC CNC Wood Carving Machine Projects
