4×8 ATC CNC Router with Automatic Tool Changer Kit for Sale

4×8 ATC CNC router machine features rotary automatic tool changer kit with a tool magazine of 10 router bits, the tools will change automatically to fit different works. The 4×8 CNC router table with ATC spindle kit is suitable for cabinet making, door making, decorations, signs making, crafts making, and more woodworking projects & plans.

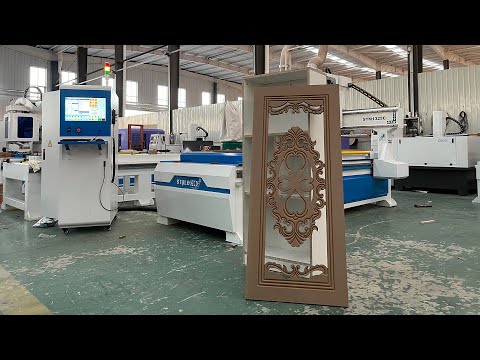

Demonstration Video

4x8 ATC CNC Router with Automatic Tool Changer Kit for Sale

Product Details

4x8 ATC CNC Router with Rotary Automatic Tool Changer Kit

4x8 ATC CNC Machine with Rotary Automatic Tool Changer Kit

4x8 CNC Router with ATC Kits

Overview

ATC CNC router is a type of smart CNC machine with automatic tool changer spindle kit. ATC is refer to Automatic Tool Changer, the ATC spindle usually carries a tool magazine of 6 cutters or 8 cutters or 10 cutters or 12 cutters. The CNC router tools can automatically change according to the working requirements when the CNC router works, no need of manual operation, with good starting performance and large torque, it can give full play to the advantages of the machine’s high speed and higher efficiency. It adopts high-torque servo motor made in Japan, which has the advantages of low noise, high speed and high positioning accuracy. Equipped with a unique tool-changing mechanism, you can exchange the required tools at will, and the dedicated tool setting table can accurately compensate the tool length error. The tool change time only takes a few seconds, which will improve the working efficiency greatly. There are two most common types ATC CNC machines, which includes linear type automatic tool changers and rotary type automatic tool changers. The best ATC CNC router machine adopts a rotary 4th axis for 3D cutting and carving.

Features of 4×8 ATC CNC Router with Rotary Automatic Tool Changer Kit

1. Heavy duty machine body.

2. 9.0KW Italy HSD air cooling spindle.

3. Automatic Tool Changer spindle with tools magazine of 10 cutters.

4. Syntec controlling system.

5. Japan Yaskawa 850W servo motor and drivers.

6. 11KW Delta inverter from Taiwan.

7. Taiwan HIWIN 30 square rails.

8. Japan Omron limited switch.

9. Strong suction Non-oil vacuum pump 5.5KW.

10. Tool sensor.

11. Auto oil-lubrication.

12. 4th rotary axis for 3D carving and cutting.

Technical Parameters of 4×8 ATC CNC Router with Rotary Automatic Tool Changer Kit

Model

STM1325D

Table size

1300mmX2500mm

Max working height

300mm

Systemic resolution

±0.0025mm

Repositioning resolution

±0.02mm

Max running speed

60m/min

Max cutting speed

30m/min

Tool magazine

Disc Type 10 tools

Working voltage

380V/3 Phase/50HZ

Spindle

9.0KW HSD air cooling

Spindle speed

24000r/min

Working air pressure

0.6MPa

Positioning cylinder

3

Driving system

Yaskawa 850W servo motor and drivers

Software

Artcam

Details of 4×8 CNC Router with Rotary ATC (Automatic Tool Changer)

CNC Router with Tool Changer in Factory

CNC Router with Tool Changer in Factory

ATC Spindle Kit (Automatic Tool Changer Spindle Kit)

ATC Spindle Kit (Automatic Tool Changer Spindle Kit)

Syntec CNC Controller for CNC Router with Tool Changer

Syntec CNC Controller for CNC Router with Tool Changer

Italy HSD Spindle - 9.0KW Air Cooling ATC Spindle

Italy HSD Spindle – 9.0KW Air Cooling ATC Spindle

CNC Router Tools

4×8 ATC CNC Router Machine Applications

1. Woodworking Industry: Stereo wave board processing, wooden door, cabinet making and other furniture production.

2. Advertising Industry: Label making, PVC plate, PCB board (drilling and engraving), double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, doorplate, nameplate, etc.

3. Mold Industry: Wood mold, foam mold and metal mold, etc.

4. Musical instrument industry: Instrument 3D surface carving, shape cutting

5. Woodcrafts.

6. Exhibition industry: Showcase.

Optional Items for 4×8 CNC Router Machine with Rotary ATC Spindle

Spindle(KW)

9.0(HSK-F63)

12.0(ISO-30, HSK-F63)

HSD air cooling

Table Design

Pure adsorption 2 zones(2 stations working )

Double layer30mm

Vacuum Pump

7.5KW/250m3/h

Including non-return valve and filter

Driving System

Servo

Chinese Easy servo

Operation System

Syntec 10A+PC

Pneumatic drill

5V/7V/9V/7V2H/9V3H1S/9V2H2S

FAM

Tool magazine

Disc plastic steel 12 tools

Protection Device

Protection fence/safe carpet/laser light curtain

Option Item Details for 4×8 ATC CNC Router Machine

Rotary Axis for ATC CNC Machine 3D Machining:

ATC CNC Router with Rotary Axis

Rotary Axis for Drum Type Automatic Tool Changer CNC Router 3D Woodworking:

Automatic Tool Changer CNC Router with Rotary Axis

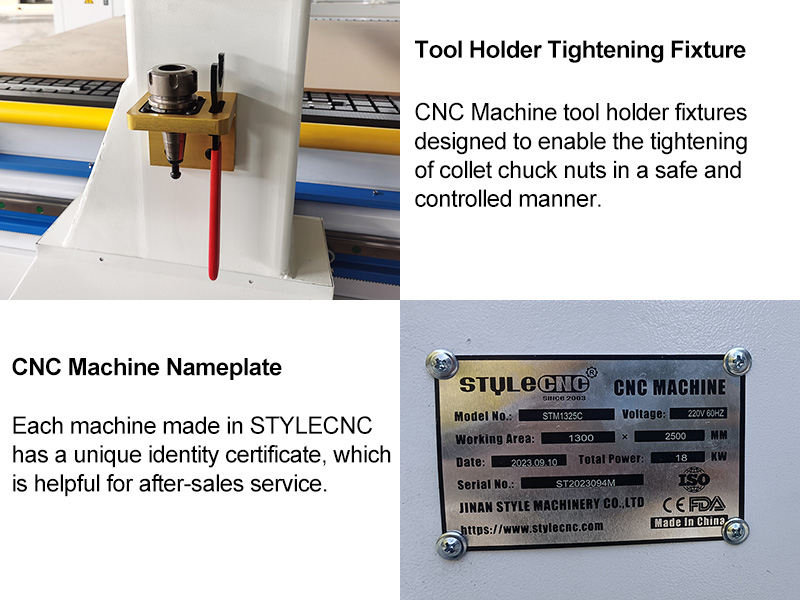

Main Parts of 4×8 Automatic Tool Changer CNC Router Machine:

Main Parts of ATC CNC router for 3D engraving and cutting

Projects of 4×8 ATC CNC Router with Drum Type Automatic Tool Changer Kit

Projects of ATC CNC router for 3D carving and cutting

Packages of 4×8 ATC CNC Machine with Drum Type Automatic Tool Changer Kit

1. Standard plywood case, its compressive strength and bearing quality is better.

2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. When importing, the plywood case is with fumigation-free, the procedure is simple.

Packages of ATC CNC router

STYLECNC Service for 4×8 CNC Router with ATC System

1. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.

2. Every ATC CNC machine must be tested before delivery for 8 hours, all of them are absolutely qualified.

3. 24 months guarantee of the whole machine.

4. Main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

5. Lifetime maintenance free of charge.

6. We will provide the consumable parts at an agency price when you need replacement.

7. ATC CNC machine has been adjusted before delivery.

8. Our staff can be sent to your company to install or adjust if necessary.

According to your requirements, we will recommend the best ATC CNC Routers for you:

1. What is your max working area?

2. What materials do you work on?

3. Do you mainly use the CNC router with ATC for carving or cutting? If cutting, What is the Max cutting thickness?

4. You can also send your product samples to us.

We Also Have Similar ATC CNC Router Machines for Option

Drum Type ATC CNC Router without 4th Rotary Axis

Drum Type ATC CNC Router without 4th Rotary Axis

ATC CNC Router with Dual Rotary Tools Magazine

ATC CNC Router with Dual Rotary Tools Magazine

Linear ATC CNC Router

Linear ATC CNC Router Machine

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
