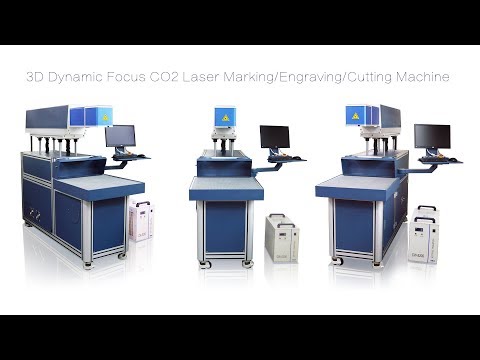

3D Dynamic Focus RF CO2 Laser Engraving & Cutting Machine

3D dynamic focus CO2 laser engraving & cutting machine with 200W CO2 RF laser tube is used for 2D/3D cutting & marking card stock, paper crafts, and paper cards, including holiday cards, invitation cards, wedding cards, Christmas cards.

Demonstration Video

3D Dynamic Focus RF CO2 Laser Engraving & Cutting Machine

Product Details

3D Dynamic Focus RF CO2 Laser Engraving & Cutting Machine

3D dynamic focus CO2 laser engraving & cutting machine is equipped with high power RF laser tube from America. The 200W RF CO2 laser machine with high precision, high speed and long working lifetime.

3D dynamic focus CO2 laser cutting machine is equipped with hi-tech dynamic focusing scanning mirror and control card, it is excellent in the aspects of algorithm optimization, high speed of marking and cutting, and other powerful functions. It is specially designed for the laser scanning with tiny light spot, large working range and high flexibility. Furthermore, this equipment is characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, which can ensure the stability of the system under long-hours working conditions.

3D dynamic focus CO2 laser engraving machine is used for marking in leather carving, hollow-out leather, greeting cards, and laser marking in woods, and laser firing in jeans wear and other laser marking technologies of nonmetal.

3D Dynamic Focus CO2 Laser Engraving & Cutting Machine Features:

1. Unique optical path design based on laser beam characteristics, low optical loss with 20% efficiency increased.

2. Rapid response with high speed THK guide rail of Z axis.

3. High stability with CTI galvanometer.

4. Original USA coherent CO2 laser tube with long working lifetime is characterized by high laser power, high-quality light spot, excellent performance, stable power and long service life (20k hours).

5. Tiny beam spot, making more precision.

6. Full sealed and maintenance-free laser optic system which key components all imported from USA or UK, realizes usage at installation without adjustment.

8. The 3 axis laser scanning system features compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability and more.

9. The heat elimination method of the scanning motor and the drive board has been taken into full consideration during the design of the system, so as to ensure the stability of the system under long-hours working condition.

10. High-precision and high-speed engraving & cutting, the efficiency is 20% higher than other similar models.

11. This equipment can run more stably and with even longer service life by utilizing water cooling on both the RF laser and extender lens.

12. USB interface bus has been adopted for the control card, which supports offline operation, stepper motor with X, Y, Z and R axis (X, Y and Z axis linked), it supports start-up and stopping marking by external control.

13. Rotary worktable system is optional, thus, accomplish marking on cambered surface.

14. Strong graphics drawing and editing functions enable direct marking of color graphic or marking after color convert from RGB to grey scale.

15. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.

16. Industrial computer support Windows 7, XP or 10.

17. Strong anti-jamming ability.

3D Dynamic Focus RF CO2 Laser Marking Machine

3D Dynamic Focus RF CO2 Laser Engraving Machine

3D Dynamic Focus RF CO2 Laser Cutting Machine

3D Dynamic Focus RF CO2 Laser Engraving Cutting Machine

3D Dynamic Focus CO2 Laser Engraving & Cutting Machine Applications:

Application Materials:

3D CO2 laser cutting machine is suitable for almost all non-metal materials, including cardstock, paper, cardboard, leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastics, marble, jade, crystal, cloth, and more materials.

Application Industries:

3D CO2 laser cutting machine is used in arts & crafts, leather products, glasses, clothing, bamboo and wood products industry, package, advertising decoration and architectural model.

3D Dynamic Focus CO2 Laser Engraving & Cutting Projects:

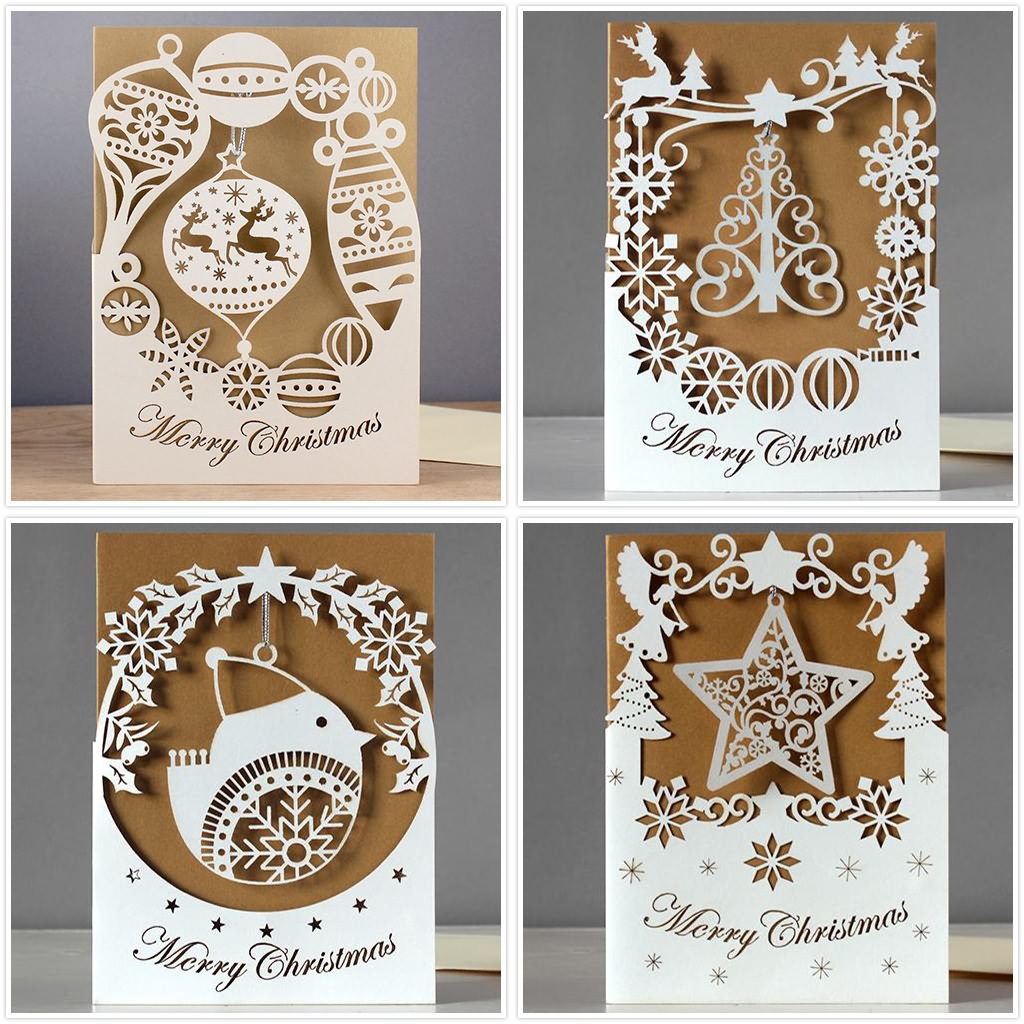

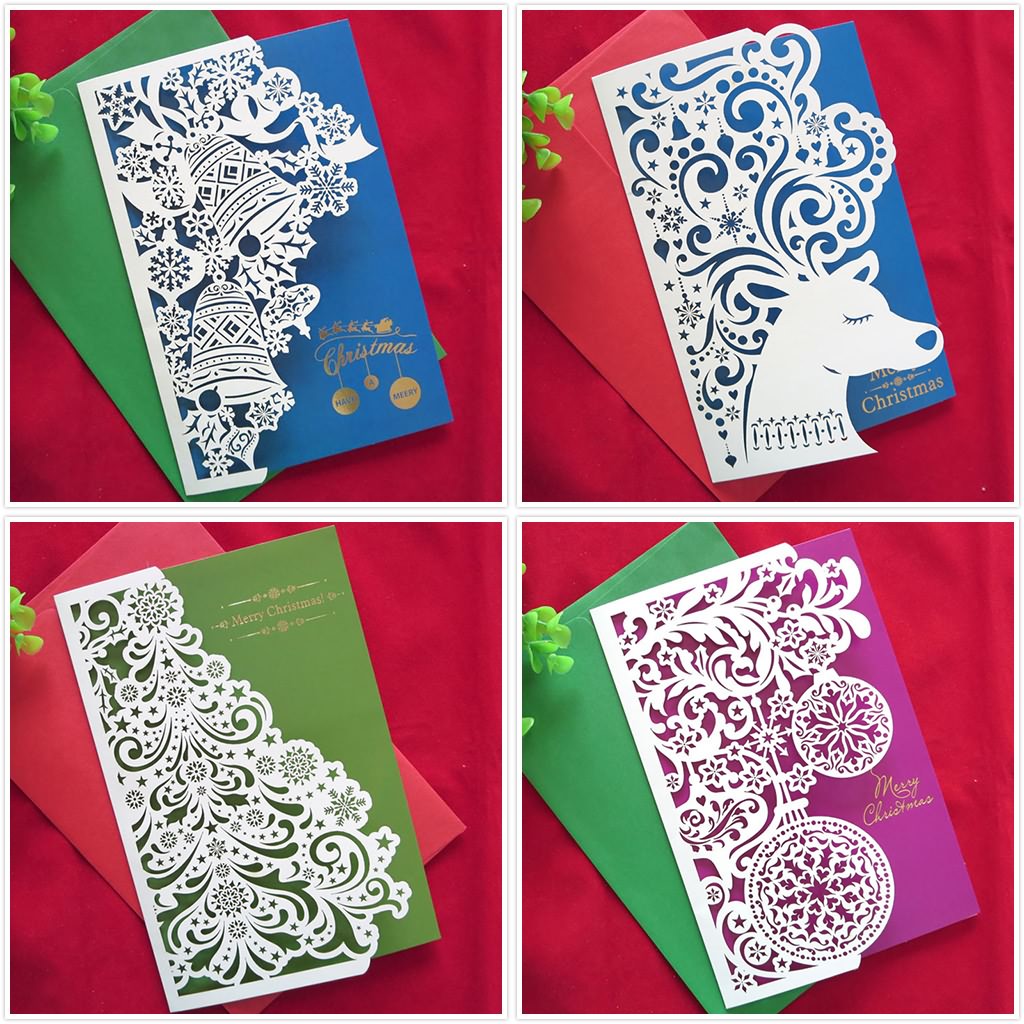

CO2 Laser Cutting Cardstock Paper for 3D Christmas Cards

CO2 Laser Cutting Cardstock Paper for 3D Christmas Cards

Laser Cutting 3D Christmas Paper Cards

Laser Cutting 3D Christmas Paper Cards

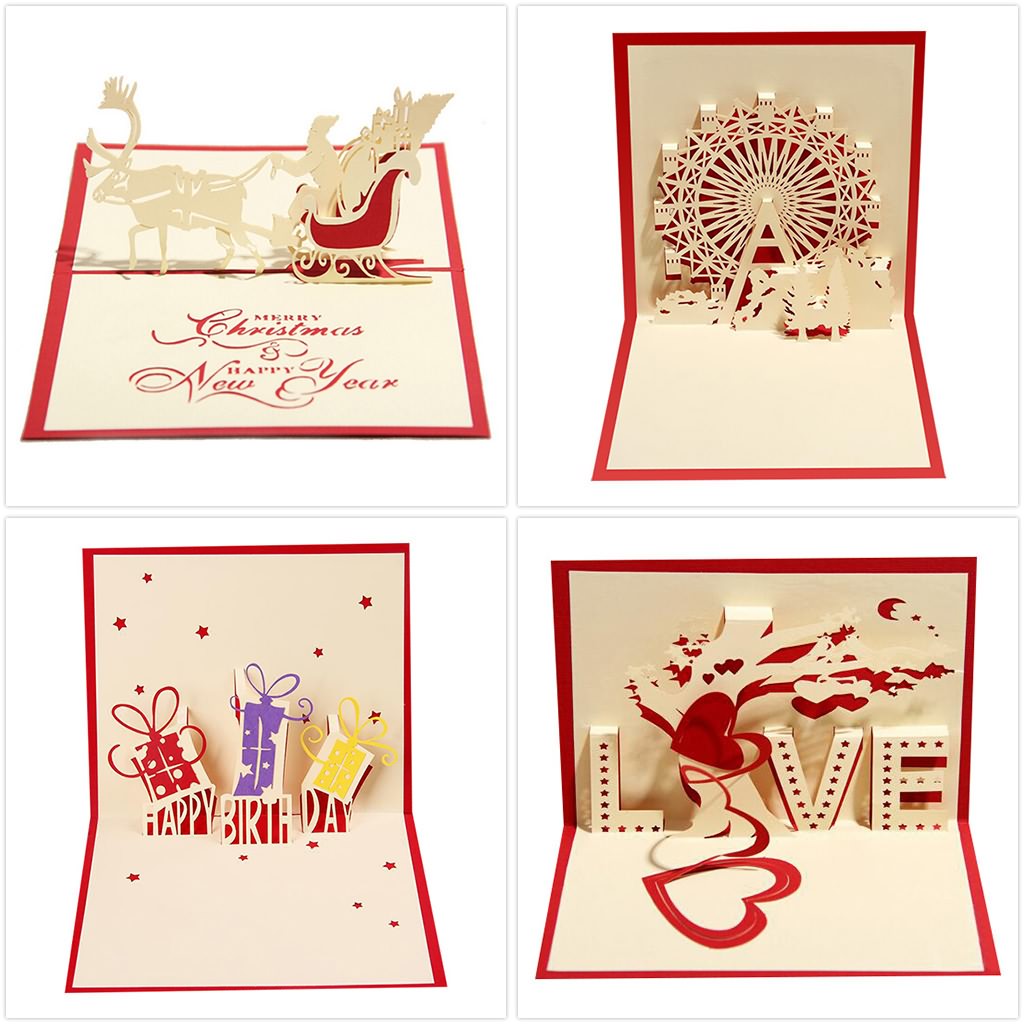

Laser Cutting 3D Holiday Cards with Cardstock Paper

Laser Cutting 3D Holiday Cards with Cardstock Paper

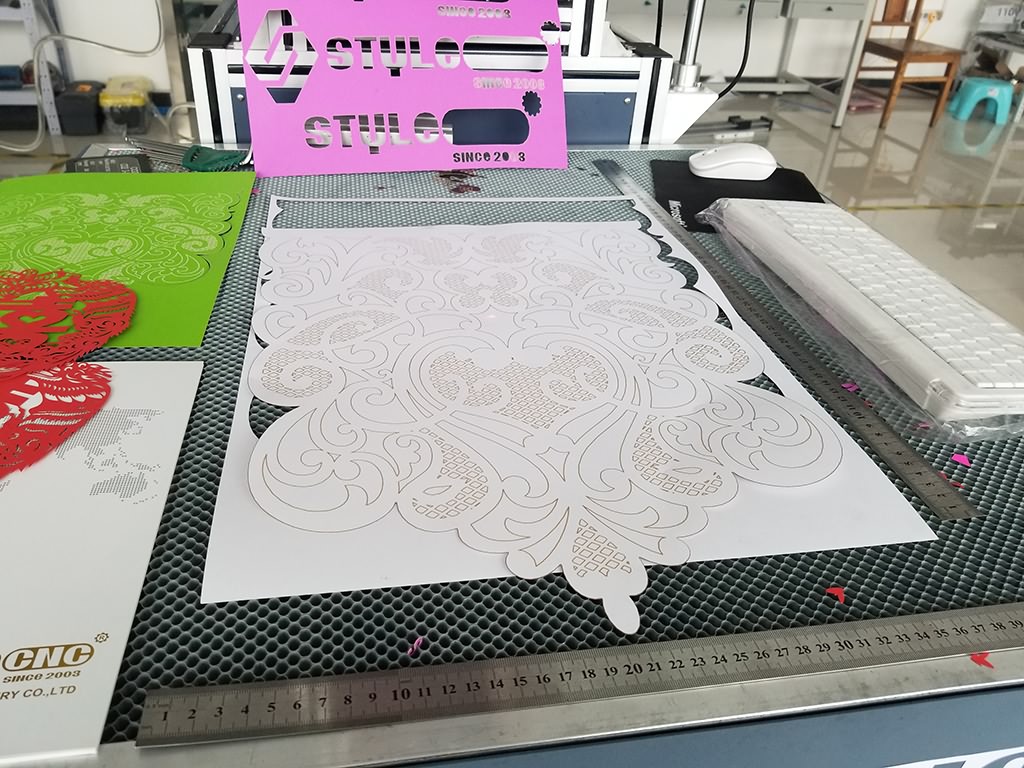

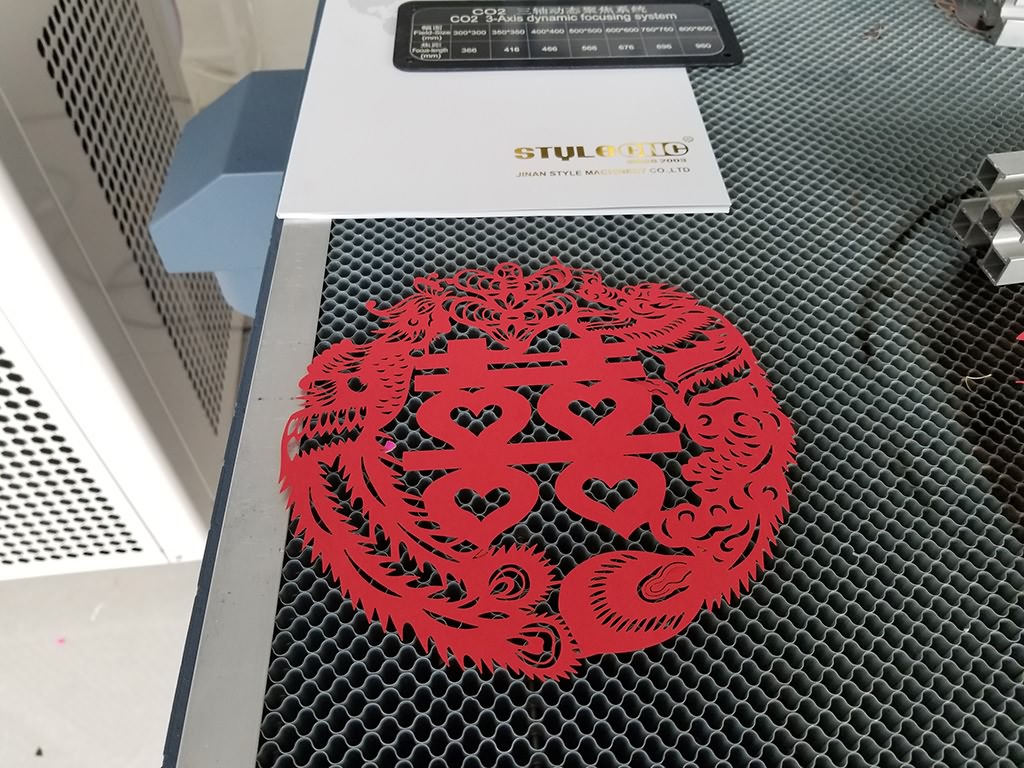

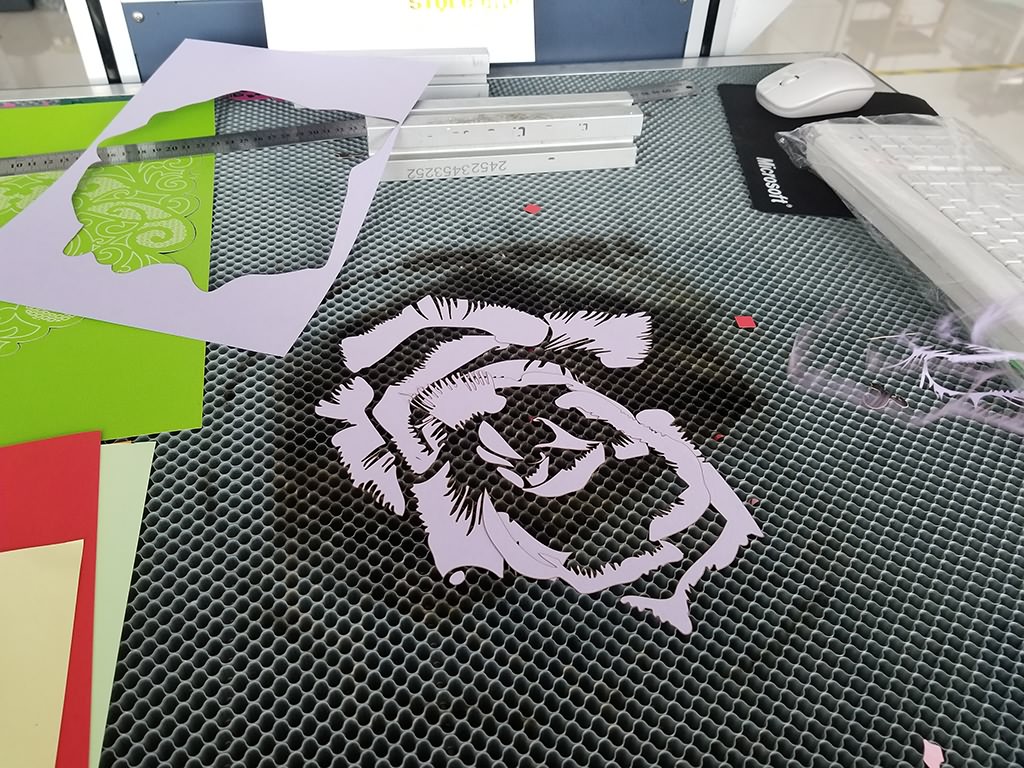

Laser Cutting 3D Cardstock Paper Crafts

Laser Cutting 3D Cardstock Paper Crafts

CO2 Laser Cut 3D Paper Crafts

CO2 Laser Cut 3D Paper Crafts

Laser Cutting 3D Paper Crafts with Card Stock

Laser Cutting 3D Paper Crafts with Card Stock

3D Dynamic Focus RF CO2 Laser Engraving & Cutting Machine Techinical Parameters:

Model STJ-200C-3D
Max Marking Area 800mmx800mm
Laser Generator USA Imported RF Metal Laser Tube
Laser Power 0-200W (Continuously Adjustable)
Wavelength 10640nm
Min Character 0.4mm
Marking Speed ≤8000mm/s
Marking Depth ≤5mm (Depends on materials)
Repeat Precision ±0.02mm
Cooling Style Water Cooling
Power Supply 220V(±10%)/50Hz/30A
Gross Power <3.5KW
Operating Temperature 10℃-45℃
Warranty Warranty
Dimension 1800mmx500mmx1600mm (Optic System)
560mm x840mm x830mm (Control System)
500mm x600mm x810mm (Cooling System)
Ross Weight 300kg

Package for 3D Dynamic Focus CO2 Laser Marking & Cutting Machine:

1. Main Laser Machine Unit.

2. CD of Operation Software.

3. Computer System (including monitor).

4. Wood Safety Package Box.

Optional items for 3D Dynamic Focus CO2 Laser Marking & Cutting Machine:

1. Rotary Attachment is Optional and Available.

2. Red Light Positioning Function for CO2 Laser Machine is Optional and Available.

3. Vacuum device is Optional and Available.

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
