2023 Top Rated Deep 3D Laser Engraving Machine for Sale

2023 top rated 3D laser engraving machine with fiber laser source is especially used for deep etching to realize the 3D surface of metal & nonmetal, and the engraver has enclosed structure for safe protection. Now the affordable 3D laser engraver for sale at low price.

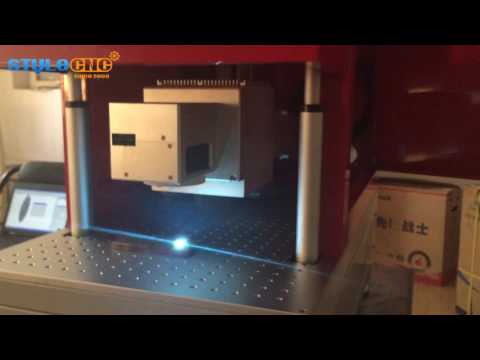

Demonstration Video

2023 Top Rated Deep 3D Laser Engraving Machine for Sale

Product Details

3D Laser Engraving Machine

3D Laser Engraving Machine Features

1. Wide Range: The 3D laser engraver can be used for many materials like metal, plastic, alloy etc. the 3D laser engraver is widely used in jewelry engraving, medical devices, phone case engraving, hardware industry, stainless steel tableware, electron components marking, etc.

2. Permanent Marking: Laser marking is a permanent marking. It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving and dot-peen marking.

3. Long Service Time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.

4. Easy to Operate: The 3D laser engraver can support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.

5. High Precision: 0.0025mm re-position accuracy.  Minimum line width is 0.01mm.

6. Non-Contact Process: It won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.

7. Portable: Small footprint, easy to move and transportation. The size like a computer case.

3D Laser Engraving Machine Technical Parameters

Model

STJ-30FM

Laser Power

30W

Laser Wavelength

1064nm

Fiber Cable Length

2m

Pulse Width

90-130ns

Repetition Frequency Range

30-60kHz

M2

<1.5

Max.Single Pulse Energy

1mJ

Output Power Stability

<3%

Output Beam Diameter

7±1mm

Power Range

10%-100%

Marking Range

100*100mm/200*200mm/300*300mm

Minimum Line Width

0.01mm

Minimum Character

0.1mm

Marking Speed

≤7000mm/s

Marking Depth

Depend on materials

Repeatability Accuracy

±0.001mm

Marking Format

Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc.

Graphic format supported

Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif

Working Voltage

220V±10%/50Hz or 110V±10%/60Hz or customized

Unit Power

<0.5kw

Working Environment

Clean and dust free or dust less

Working Condition Humidity

5%-75%, 0-40 degree, free of condensed water

Laser lifetime

>100000 hours

Net weight

150 kgs

Packing Size

850*600*950mm

Details of 3D Laser Engraving Machine

Deep 3D laser engraving machine

3D deep laser engraving machine

deep 3D laser marking machine

rotary ring laser marking system

3D Laser Engraving Machine Applications

1. Electronic Components: Resistance, capacitance, chips, printed circuit boards, computer keyboard.

2. Apparatus And Meter: Panel signs, precision equipment.

3. Instrument: Panel signs nameplates, precision equipment.

4. Hardware Tools: Knives, tools, measuring tool, cutting tool.

5. Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights.

6. Mechanical Parts: Bearings, gears, standard parts, motors.

7. Daily Necessities: Handicrafts, zipper, key holder, sanitary ware.

8. Jewelry: Rings Jewelry, gold, silver.

9. Food and Drinking Packing: Plastic packings.

Applicable Materials for 3D Laser Engraver:

Metal (including rare metals), engineering plastics, electroplating materials, coating material, plastic, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, copper and other materials.

3D Laser Engraving Machine Projects

3D laser engraving machine projects

Deep laser engraving machine projects

Color laser engraving machine projects

STYLECNC SERVICE for 3D Laser Engraving Machine

STYLECNC Service for 3D laser engraving machine

All types of fiber laser engraving machines for choose

fiber laser engraving machines

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
