2023 Top Rated CO2 Hobby Laser Cutter Machine for Sale

2023 top rated CO2 hobby laser cutter machine is an entry level laser engraving & cutting system with 2×3 table top for hobbyists, small business, small shop, home business and home shop.

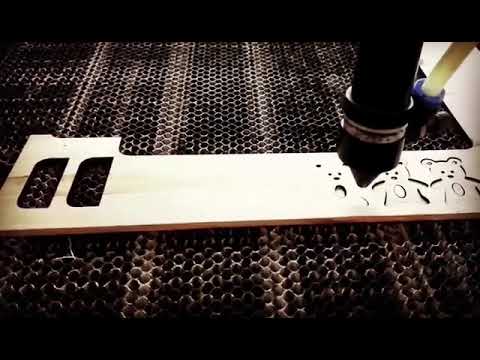

Demonstration Video

2023 Top Rated CO2 Hobby Laser Cutter Machine for Sale

Product Details

2x3 CO2 Hobby Laser Cutter Machine

Do you have DIY hobby laser cutter kit plans or need to buy an affordable hobby laser cutting machine for metal, wood, plywood, cardboard, dieboard, chipboard, fabric, textile, leather, paper, acrylic, plastic, foam, rubber, ABS, EPM, MDF, PE, PES, PUR, PVB, PVC, PUR, PMMA or PTFE? Review the 2023 new laser cutter buying guide as follows, we’ll offer you 2023 best laser cutting machines with custom hobby laser engraving cutting service to fit your 2D/3D laser engraving & cutting projects, ideas and plans.

What Is Hobby Laser Cutter?

Hobby laser cutter is a type of entry level laser engraving and cutting system for hobbyists with small size in small business and home shop. A hobby laser cutter has full set of laser parts and accessories like an industrial laser cutting machine, which can be equipped with different laser powers of CO2 laser tube for both engraving and cutting. It is also known as hobby laser cutting machine, hobby laser cutting system, hobby laser engraver, and hobby laser engraving machine.

2×3 CO2 Hobby Laser Cutter Machine Advantages

1. Configure higher power laser tube.

2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes.

3. The hobby laser machine owns functions of restoring from power off, continuation on break point.

4. Transmit files directly in CorelDraw, AutoCAD, and more professional softwares.

5. The hobby laser engraving cutting machine adopts international linear rail, more precision.

2×3 CO2 Hobby Laser Cutter Machine Technical Parameters

Machine Model

STJ9060

Table Size

600x900mm (2×3 feet)

Laser Power

60W/80W/100W

Laser Type

CO2 sealed high quality, water-cooling

Driving System

Stepper motor

Cutting Speed

0-30000mm/min / 0-1181in/min

Engraving Speed

0-50000mm/min / 0-1969 in/min

Resetting Position Accuracy

≤±0.01

Power Supply

220V/50Hz, 110V/60Hz,

Min. Shaping Character

English 1.0*1.0mm

Operating System

USB ( DSP 6525)

Graphic Format Supported

BMP, PLT, AI, DST, DXF

Software Supported

Coreldraw, Photoshop, AutoCAD, Tajima

2×3 CO2 Hobby Laser Cutting Machine Applications

Advertising Industry

1. Double-colored board engraving

2. Organic glass engraving and cutting

3. Label engraving

4. Crystal cup engraving

5. Warranty signed engraving

Arts and Crafts Industry

1. Wood

2. Bamboo

3. Ivory

4. Bone

5. Leather

6. Paper

Packing and Printing Industry

1. Rubbery board

2. Plastic board

3. Double-layered board

4. Model cutting board

Leather Clothing Industry

1. Complex characters and pattern engraving

2. Cutting on hypoderm

3. Synthetic leather

4. Man-made leather

5. Cloth

Architectural Model Industry

1. ABS board cutting

2. Model engraving

Production Totem Industry

1. Appliance signs

2. Anti-fake commodities marking

2×3 CO2 Hobby Laser Cutting Machine Features

Advanced LCD Screen + USB Port + Offline Control

It can not only work without computer, but also connect to U disk, USB communication.

Advanced LCD Screen+ USB port+ Offline Control of hobby laser cutter

Control box and power supply for hobby laser cutter

Lens and mirrors from Singapore

The mirrors material is the molybdenum, this is one rare metal. It’s reflective effect is good. And it’s diameter is more than 25mm.

The diameter of the Lens is 20mm, and the focal length is 63.5mm. If you want to cut something, the edge will have the radian, not the direct one. (the cutting effect is good enough)

hobby laser cutter parts

Lens and mirrors from Singapore

Taiwan Hiwin Square Rails

1. The square rails has more higher precision than the round ones.

2. The positioning accuracy is high, less wear and tear can maintain high accuracy.

3. This square rails apply to high-speed move and greatly recude the drive horsepower the machine required.

4. It can bear the load from left and right, up and down at the same time.

5. The essembling is easy and has the performance of interchangeability, the lubrication structure is simple.

Taiwan Hiwin square rails for CO2 Hobby Laser Cutter

Laser Head for CO2 Hobby Laser Cutter Engraving Machine

Laser head for CO2 Hobby Laser Cutter

Rotary Device for CO2 Hobby Laser Cutter Engraving Machine

Rotary device for hobby laser cutter

2×3 CO2 Hobby Laser Cutting Machine Projects

Plywood engraving and cutting projects

CO2 Hobby Laser Cutter Machine Applications

2×3 CO2 Hobby Laser Cutter Engraving Machine Package

1. The hobby laser cutting engraving machine is packed with cling films first and then film bags.

2. The hobby laser machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.

3. With this kind of package, all our hobby laser machine can protect well during long trip by sea or by air.

CO2 Hobby Laser Cutter Machine Package

Warranty of 2×3 CO2 Hobby Laser Cutter Engraving Machine

1. The whole hobby laser engraving cutting machine: one year.

2. CO2 Laser tube: 12 months (this is what laser tube supplier offer to us).

3. Laser lens and mirrors: for one month. If the accessories are broken because of quality problems during warranty time, we will change it by free.

4. 24 hour technical support online like skype, whatsapp, remote, you can calling us if urgent.

5. We offer free training in our factory, and our engineers available to service machinery overseas, but the round-trip air tickets, hotel and meals for the engineers should be paid by our buyer.

We also have hobby fiber laser cutters for metal fabrication:

Hobby Fiber Laser Cutter for Metal Fabrication

Hobby Fiber Laser Cutter for Metal Fabrication

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
