2023 Top Rated Cheap CNC Milling Machine for Home Use

2023 top rated cheap CNC milling machine for home use is designed for home shop and home business for iron, copper, aluminum, stainless steel, mold steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT sheet, timber, gemstone, marble. Now the affordable home CNC mill machine for sale at cheap price.

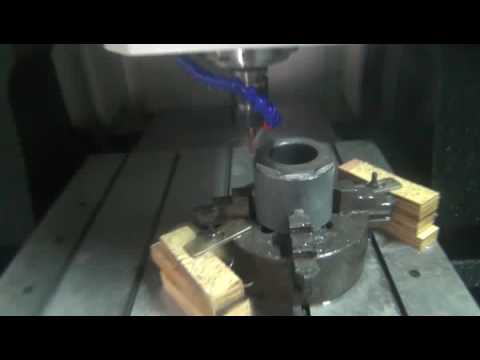

Demonstration Video

2023 Top Rated Cheap CNC Milling Machine for Home Use

Product Details

Cheap CNC Milling Machine for Home Use

Applications of Cheap CNC Milling Machine for Home Use:

1. The home CNC milling machine is suitable for engraving, milling and drilling compactly all sorts of materials such as steel, copper, aluminum and plastics.

2. The home CNC milling machine is widely used in automotive, injection mould, ironware mould and other mould industries.

3. The homemade CNC milling machine is especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface’s sleeking of large size molds.

4. The homemade CNC milling machine is used for iron, copper, aluminum, stainless steel, mould steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT board, timber, gemstone, marble, aluminum and plastic composite panel, etc.

Technical Parameters of Cheap CNC Milling Machine for Home Use:

Model

ST4040F

ST6060F

ST7090F

Travel (mm)

400×400×150

600×600×200

700x900x200

Input Voltage (v)

AC220V

AC220V

AC220V

Max Spindle Speed (rpm)

24000

24000

24000

Power of Spindle (kw)

1.5

3.2

3.2

Positioning Accuracy (mm)

0.01

0.01

0.01

Repositioning Accuracy (mm)

0.005

0.005

0.005

Max Milling Speed (mm/min)

6000

6000

6000

Tool Collet

ER20

ER25

ER25

Driver

Stepper Motor

Servo Motor

Servo Motor

Overall Dimensions (mm)

1600×1200×1680

1600×1200×1680

1500x1000x1530

Weight (kg)

1200

1400

1600

Max Tool Diameter (mm)

12

16

12

Max Feeding Height (mm)

150

200

200

Features of Cheap CNC Milling Machine for Home Use:

1. The milling machine body is strong, rigid, high precision, reliable and durable. Whole steel structure, after high-temperature tempering, good rigidity and stability.

2. Constant power spindle with high efficiency, which is suitable for large-scale standardization of batch processing.

3. Taiwan TBI ball screw transmission, Taiwan square linear orbit, can engrave 2mm-3mm little letter.

4. The home CNC milling machine adopts advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.

5. Professional high flexibility anti-bending cable, the number of anti-bending can be up to 70,000 times.

6. Automatic oil lubrication system is easy to operate by one key press, equiped with dust proof and water proof for X, Y axis, make the maintenance operation easily.

7. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.

8. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

9. Good three-axis and dust-proof structure to ensure that the machines longer service life.

10. High-performance driven motor to ensure that the machines high speed and accurancy.

11. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.

12. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.

CNC milling machine spindle

NC studio control system

CNC milling machine table

CNC milling machine accessories

Home CNC Milling Machine Projects:

Home CNC milling machine project

CNC milling machine project

CNC milling machine project for metal
