2023 best mixed hybrid laser cutting machine STJ1610M adopts CO2 sealed laser tube, which can cut thicker nonmetals, and metal materials from 0.5mm up to 2mm.
Demonstration Video
Product Details
Advantages of 2023 Best Mixed Metal and Nonmetal Laser Cutting Machine:

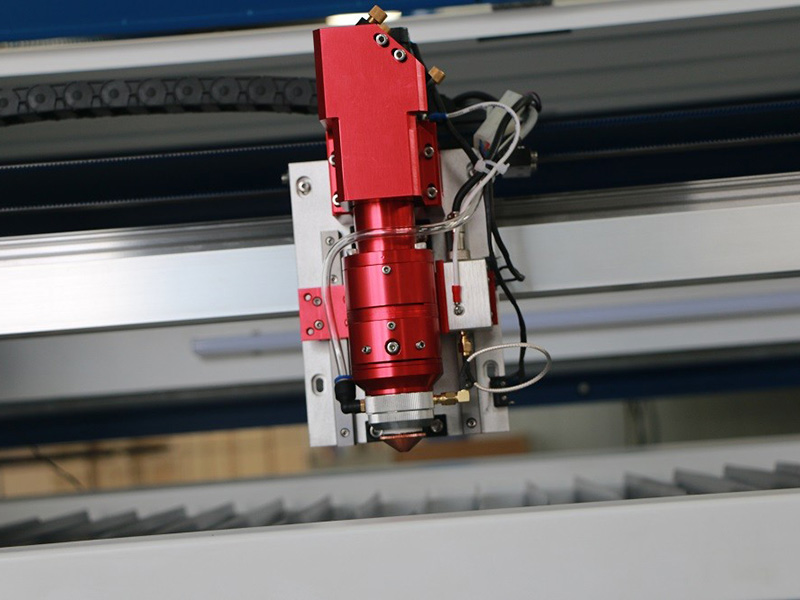

1. United States imported sensor and precise autofocus laser cutting head, improve precision and cutting effect for metal sheets based on perfect optical path.
2. Italy imported steel-strip belt and precise gear wheels transmitting technology.

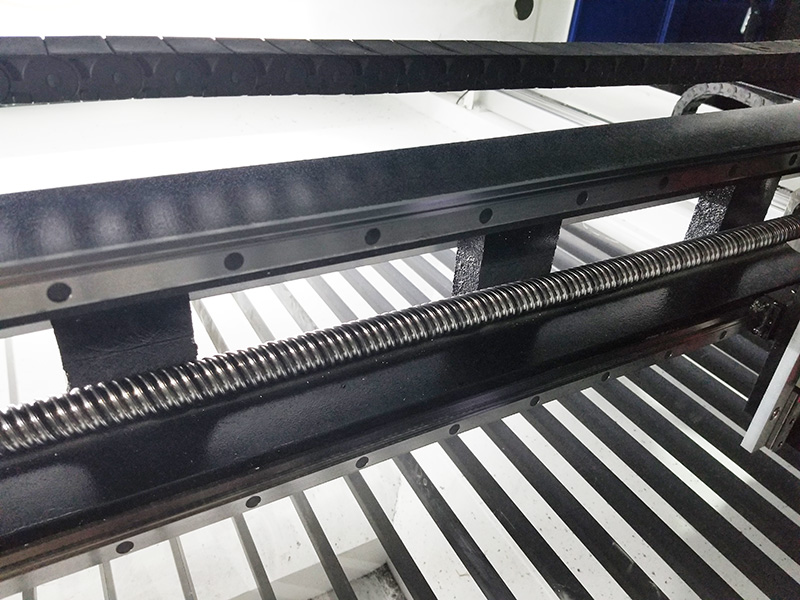

3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.

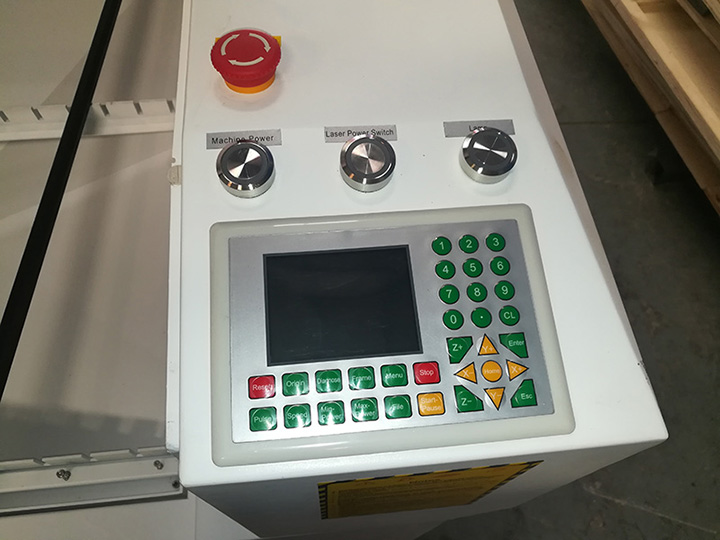

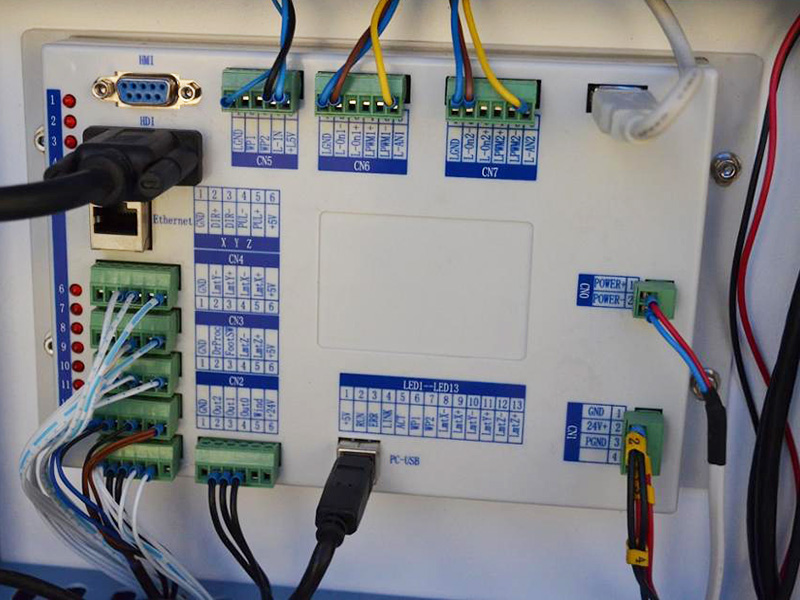

4. RD6332M panel control system with 256MB memory storage, compatible with USB, wirenet and various memeries, more functions than Leetro and double memory storage.
Applications of 2023 Best Mixed Metal and Nonmetal Laser Cutting Machine:
Advertising industry: acrylic engraving and cutting, cutting and engraving of double- color plate and other advertising material
Leather processing industry: leather, fabric carved hollow
Arts and crafts industry: paper cutting, wood, bamboo products, leather, shell, ivory and other materials’ engraving and cutting
Model industry: construction model, aviation and maritime models, wooden toys’ cutting.
Packaging industry: printed rubber plate engraving and cutting, plywood cutting and laser cutter template cutting.
Decoration industry: electrical and electronic industry materials engraving and cutting.
Feature of 2023 Best Mixed Metal and Nonmetal Laser Cutting Machine:
1. Use RD sensor and precise auto focus laser cutting head, improve precision and cutting effect for metal sheets based on perfect optical path.
2. Italy steel-strip belt and precise gear wheels transmitting technology.
3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
4. RD6332M panel control system with 256MB memory storage, compatible with USB, wirenet and various memeries, more functions than Leetro and double memory storage.
5. Non-contact height-adjusting configuration enables to cut almost all materials with lowest cost.

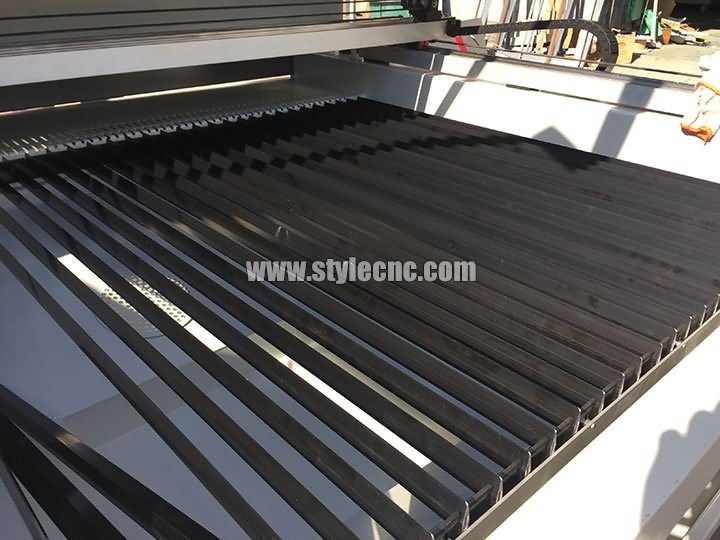

6. Working table: Open blade with special treated material. Never fray and easy operation, suitable for all kinds of hard materials.
7. Steady chassis: Stability and precision during high speed work.

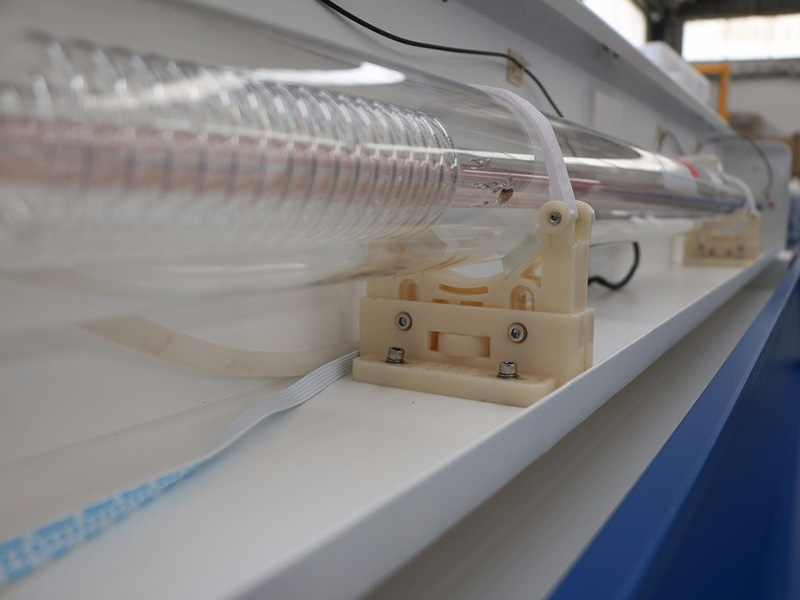

8. High efficiency tube with stable laser path, life time around 10000 hours.
Technical Parameters of 2023 Best Mixed Metal and Nonmetal Laser Cutting Machine:
| Model | STJ1610M |
| Working Area |
1600*1000mm |
| Laser Power | 130W/150W/280W/300W mixed laser cutting tube |
| Laser Type | CO2 Sealed Laser Tube |
| Cooling Type | Water Cooling |
| Laser Output Control | (0-100% Set by Software ) |
| Min Engraving Speed | Chinese Word: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
| Highest Scanning Precision | 4000DPI |
| Positioning Accuracy | ±0.05mm/m |
| Positioning Speed | 20m/min |
| Max. Cutting Thickness | 40mm |
| Max. Cutting Speed | 20m/min |
| Controlling Software | RD Control System or optional |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS, etc |
| Compatible Software | TAJIMA, CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor or servo motors as optional |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%,50HZ/60HZ |

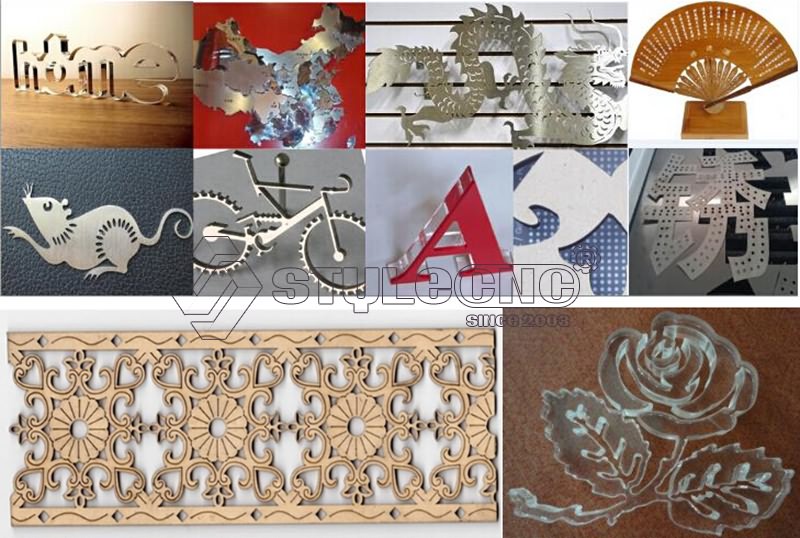

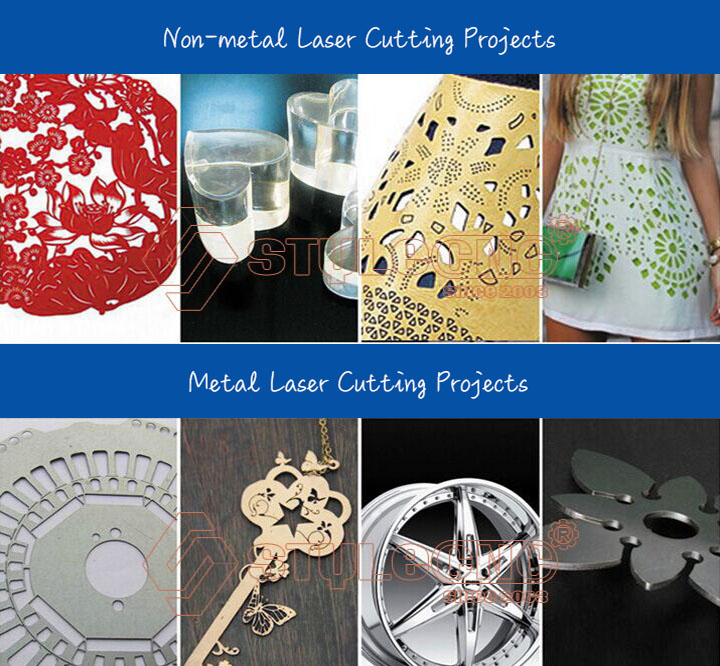

Projects of 2023 Best Mixed Metal and Nonmetal Laser Cutting Machine:
Package of 2023 Best Mixed Metal and Nonmetal Laser Cutting Machine:
On-Time Delivery:
After you confirm the order, we will figure out the delivery date according to the model and production schedule. For general models, we will arrange production in 7 days and we will notify you of the exact phase of production process.
After-Sales Service of 2023 Best Mixed Metal and Nonmetal Laser Cutting Machine:
We guarantee all of our metal and nonmetal laser cutting machines have 1 year warranty (quick-wear parts not included).
Numerous feedbacks from our clients have proven that our metal and nonmetal laser cutting machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
1. We guarantee we will give you a response within 24 hours.
2. Our staff will assist and guide you to analyze the malfunction in order to locate the cause.
3. If the malfunction is caused by improper operation on software and other soft faults, we will help you to solve the problem online.
4. If a certain part is damaged, we will deliver a replacement part to you as soon as possible, so you can replace it by yourself, reducing unnecessary time cost.
International Shipping Around the World
All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
Customer Reviews and Testimonials
Jean Lafortune from CanadaThe sensor and precise autofocus laser cutting head from United States, which can improve the precision and cutting effect for metal sheets, all based on perfect optical path.- Sri Yuli from IndonesiaAssembly was easy to do with the instructions. Software was easy to use and got the first cut done without any snags. In my opinion this laser cutter is well worth the extra investment. All will be recommended to you familiar.
