2023 Best CO2 Laser Wood Marking Machine for MDF & Plywood

2023 best CO2 laser wood marking machine is used for engraving MDF, plywood, bamboo to DIY personalized wood crafts, gift box, wood arts, wood paint, wood frame, keyboard, mobile case, cover, and more woodworking projects.

Demonstration Video

2023 Best CO2 Laser Wood Marking Machine for MDF & Plywood

Product Details

CO2 Laser Wood Marking Machine

What Is CO2 Laser Marking Machine for Wood?

CO2 laser wood marking machine is a laser galvanometer marking machine that uses computers, CO2 laser generator and laser marking control card to engrave text, patterns, images, numbers, lines, name, date, logo, signage on hard wood, soft wood, MDF, plywood, and bamboo. The CO2 laser is irradiated on the surface of the wood. The surface of the wood absorbs the laser energy and generates a thermal excitation process in the irradiated area, which causes the surface temperature of the wood to rise, causing metamorphosis, melting, ablation, and evaporation.

CO2 Laser Wood Marking Machine Features & Advantages

1. Adopting CO2 laser tube as the laser source. By 2D high-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.

2. Adopting top brand optics lens, low loss, excellent focalization performance.

3. Using high-speed scanning mirrors, it can be the graph in shortest time finish fine marking process.

4. Adopting American high-speed galvanometer system with high speed, high precision and stable performance.

5. The marking software is mightiness, under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.

6. Support automated coding, serial number, batch number, date, bar code and 2D code marking.

CO2 Laser Wood Marking Machine Applications

Applicable Industry

CO2 laser wood marker is used for electronic components, medicines, food, drinking package, leather products, rag trade, woodworks, craftworks and package.

Applicable Materials

CO2 laser wood marking system is suitable for nonmetal materials such as leather, cloth, wood, MDF, plywood, bamboo, paper, organic materials, plastic, epoxy resin, etc.

CO2 Laser Wood Marking Machine Projects

CO2 Laser Wood Marking Machine Projects

CO2 Laser Wood Marking Machine Projects

CO2 Laser Wood Marking Machine for Wood Mobile Case

Wood iPhone case laser engraving project

CO2 laser marking machine for mobile case

CO2 Laser Marking Machine for Wood Crafts

CO2 Laser Marking Machine for Wood Crafts

CO2 Laser Marking Machine for Wood Storage Boxes

CO2 Laser Marking Machine for Wood Storage Boxes

Technical Parameters of CO2 Laser Wood Marking Machine

Model

STJ-80C

Maximum Laser Power

80W

Laser Wavelength

10.64μm

Laser Repetition Frequent

≤25kHz

Standard Engraving Range

100mm*100mm(200mm*200mm/300mm*300mm optional)

Marking Depth

≤3mm

Marking Linear

≤7,000mm/s

Minimum Linear Width

0.1mm

Smallest Character

0.4mm

Repeatability Precision

±0.0025mm

Overall Power

1.2KW

Power Required

220V / single-phase / 50Hz / 8A

Control System

EZCAD

Cooing System Dimensions

Industrial CW5000 water chiller

CO2 Laser Wood Marking Machine Details

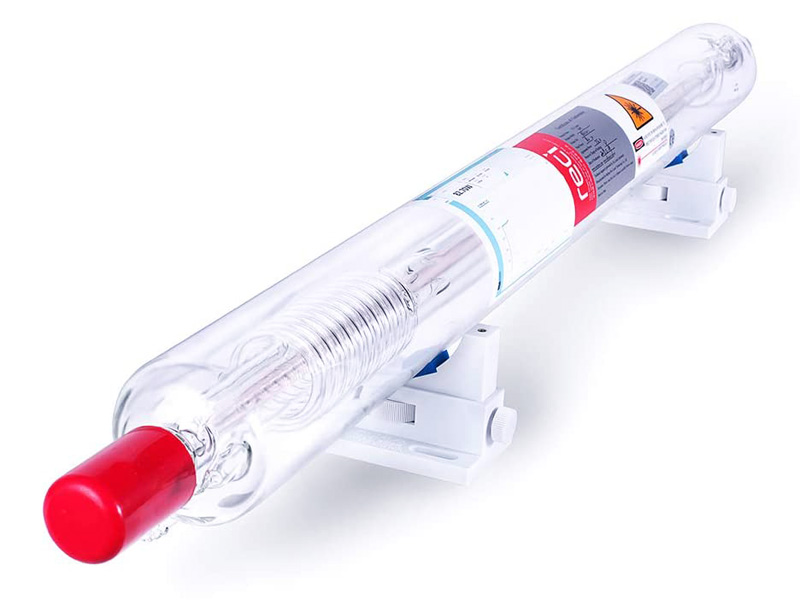

Beijing Reici 80w laser tube with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000 hours with free of maintenance.

CO2 Laser Wood Marking Machine laser tube

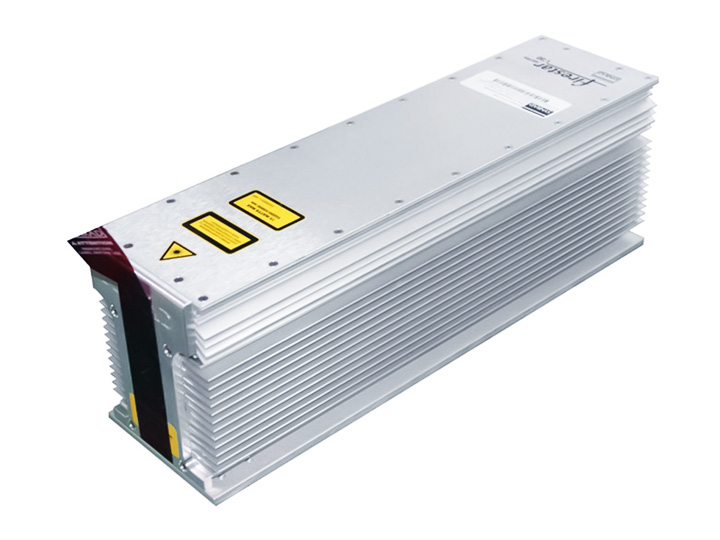

We also have the America Synrad CO2 RF laser tubes for CO2 laser wood marking machines.

CO2 Laser Wood Marking Machine with Synrad laser tube

Professional industrial water chiller for cooling laser tube.

Industrial water chiller

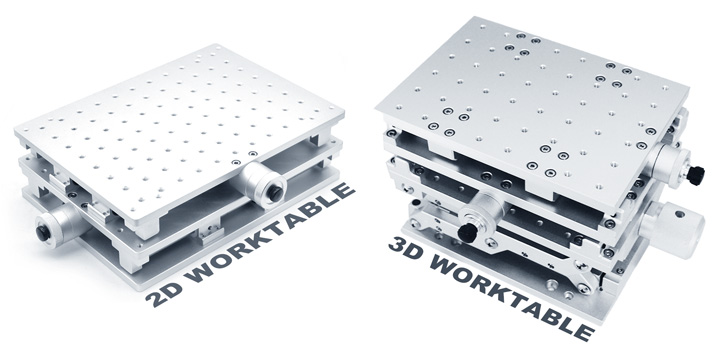

2D working table, 3D table for optional.

2D Working Table

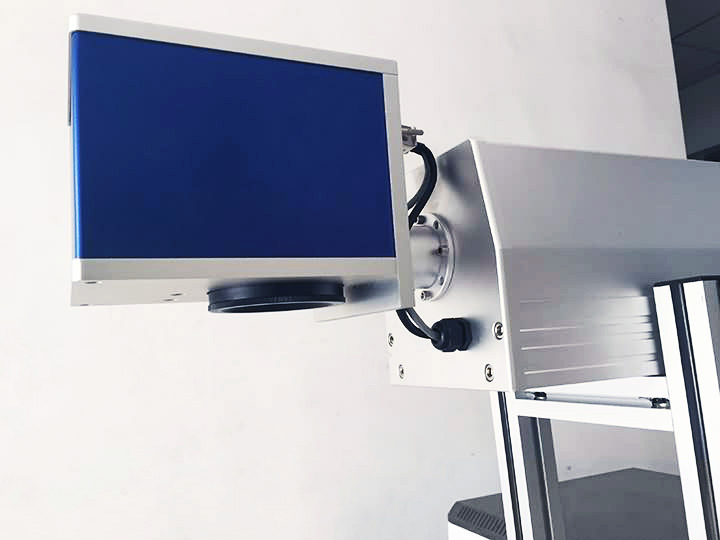

American galvanometer system with high speed, high precision and stable performance.

American galvanometer system

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
