2023 Best Budget Small Metal Laser Cutter for Hobby on Sale

2023 best budget small metal laser cutter ST-FC1390 is a compact entry level laser metal cutting system for hobbyists and small business to cut metal signs, tags, logos, letters, jewelries, and all types of sheet metal cuts with fully enclosed design, environmental friendly operation, and 1000W, 1500W, 2000W powers for option, now this affordable mini laser metal cutter on sale at cost price for your needs and budget.

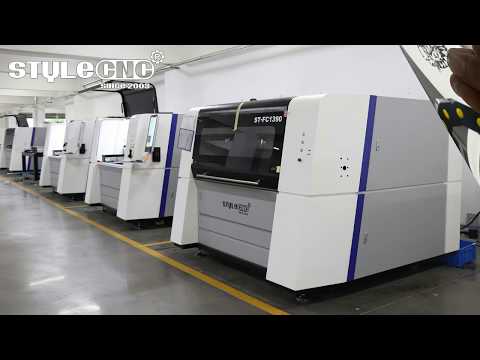

Demonstration Video

2023 Best Budget Small Metal Laser Cutter for Hobby on Sale

Product Details

2023 best budget small metal laser cutter ST-FC1390 is one high precision fiber laser cutting system to cut thin metals which adopts Taiwan TBI grinding ball screw and Hiwin guide rail, the positioning accuracy of the small laser metal cutting machine tool can run up to 0.008mm and the cutting acceleration is 0.5G.

2022 Best Budget Small Metal Laser Cutter

Technical Parameters of 2023 Best Budget Small Metal Laser Cutter with Fiber Laser Generator

Model

ST-FC1390

Laser power

1000W (1500W, 2000W for Option)

Working area

1300mmx900mm

Repeat positioning accuracy

±0.008mm

Maximum speed

40m/min

Maximum acceleration

0.5G

Transmission mode

Grinding precision screw drive

Specified voltage and frequency

220V/50Hz/60Hz/60A

Package size 2280*2240*1870mm

Features of 2023 Best Budget Small Metal Laser Cutter with Fiber Laser Generator

Small Metal Laser Cutter

Small laser metal cutter

1. Dual ballscrew and rails driving

To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting.

Double rails of metal laser cutter 1390

2. The fully enclosed structure

The observation window adopts an European CE standard laser protective glass.

The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally friendly.

1390 metal laser cutter

3. Swiss Raytool auto sensor laser cutting head to ensure smooth cutting surface without burrs.

metal laser cutting head

4. PC and Cypcut software with English language installed, applicable insert files with .DXF or .AI format.

metal laser cutting Cypcut software

5. Japan Panasonic servo drive motor drive system that make the best cutting effect.

Japan Panasonic servo driver

6. Guide installation and commissioning using precision collimator test, the accuracy of less than 0.01mm.

metal laser cutter double driving system

7. The small laser metal cutting machine body with high temperature heat treatment, 24 hours furnace cooling, 8m gantry milling finishing to ensure that 20 years of normal use without deformation.

metla laser cutting machine body

8. The sawtooth table can bear heavy duty metal sheet without transformation.

sawtooth table of small metal laser cutter

Applications of 2023 Best Budget Small Metal Laser Cutter with Fiber Laser Generator

Application industries:

Small laser metal cutting machine is widely used in glasses, electronics, appliances, metal signs, metal logos, metal letters, jewelry name cutting and other precision machinery, hardware, microelectronics industry.

Application materials:

Small laser metal cuttting machine is suitable for all metals: stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, pickle plate, aluminum-plating zinc plate, metallic copper and other metals.

fiber laser cutting machine production equipment

Incoming Quality Control for fiber laser cutting machine

Laser cut metal signs

2023 Best Budget Small Metal Laser Cutter Projects

Metal laser cutter projects

Laser cut metal projects

We also have smaller size ST-FC6040 with 600*400mm laser cutting table for choose:

Portable laser cutting machine for metal

Package for 2023 Best Budget Small Laser Metal Cutter

1. Strong water resit bottom in plywood.

2. Laser source (separated plywood case) and spare parts on the laser bed.

3. Corner protect by foam and fixed by protective film.

4. All covered by strong and hard protective film.

5. Vacuum packing.

6. Inside steel frame protector.

7. Plywood packing and steel strip outside fixed the box.

8. Finishing packing by normal container or frame container.

Pre-Sale Service for 2023 Best Budget Small Laser Metal Cutter

1. Free sample cutting service:

For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.

2. Progressing Solution Design:

According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

3. Customized machine design:

According to customer’s application, we may revise our machine according to customer’s convenience and high production efficiency.

After-Sale Service for 2023 Best Budget Small Laser Metal Cutting Machine

STYLECNC After-Sale Service

1. We will supply the laser machine with training video and user’s manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)

2. You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)

3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It’s better to arrange a translator (if no English-speaking) for our engineers during the training period.

Warranty for 2023 Best Budget Small Metal Laser Cutting Machine

1. 3 years for the whole machine, laser device 18 months, chiller 12 months, lens/mirror/nozzle without warranty.

2. Long life-time maintenance, after-sale department will offer 24/7 English online support.

3. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.

4. After the warranty period expired, the buyer only need to pay the actual maintenance cost.

5. Certificate support: CE, FDA, SGS.

If you have an idea to get a free quotation of metal laser cutters, please answer the questions as following and tell us by email, so that we can recommend the most suitable laser machine and quota the affordable price to you directly.

1. Do you need to cut metal sheets/plates, metal pipes/tubes only or both?

2. If need to cut tubes, What is your tube length, diameter and max thickness?

3. For cutting metal sheet, what is the max working area required?

4. After processed, what the materials will be used for? (Applications)

5. Which seaport is the nearest to you?

6. Do you have any experience in the fiber laser metal cutting machine?

7. What is your online chat way? Such as Skype and Whatsapp.

8. Are you an end user or reseller?

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
