2023 Best Automatic Six Sided CNC Drilling Machine for Sale

2023 best six sided CNC drilling machine is an automatic wood CNC drill used for vertical drilling, horizontal drill for side drilling, saw for slotting, while completing pentahedron drilling, chamfer and grooving with custom woodworking, furniture making, cabinet making. Now the top rated CNC six-sided drilling machine for sale at cost price.

Demonstration Video

2023 Best Automatic Six Sided CNC Drilling Machine for Sale

Product Details

What Is CNC Drilling Machine?

CNC drilling machine refers to an automated mechanical device that uses a computer numberical controlled controller and a tool that is harder and sharper than the target to make a cylindrical hole on the target by rotary cutting or extrusion. Also known as CNC punching machine and CNC drill.

Six Sided CNC Drilling Machine

CNC drills adopt advanced CNC technology, electronic technology and software technology. It is developing towards high-speed, high-precision, multi-functional, intelligent, systematic and high reliability. CNC drilling machines use CNC technology, automatic positioning, automatic typesetting, automatic scanning, accurate positioning, simple and convenient control, and its one pair of molds can punch a variety of patterns, and can also be simulated by computer to imitate punching.

What Is CNC Six-Sided Drilling Machine?

CNC six-sided drilling machine is an automatic high-end hole-arranging equipment for panel furniture production. With wireless scanning (with sorting function), automatic positioning, double-clamp automatic clamping, automatic loading and processing, it can realize six-sided positioning and front and back groove processing at one time. After completion, the clamp will automatically load the board into the sorting rotary platform, which has high machining efficiency and high degree of automation.

Six sided CNC drilling machine adopts computer operation, CAD drawing, CAM import, and can be directly imported into DXF, MPR/XML and other open data formats, which is easy to operate. It can be connected to well-known design and order splitting software such as CV in the United States and Topsolid in France. The existing cutting machine, edge banding machine and drilling machine can also be connected into a production line.

Automatic CNC Six-Sided Drilling Machine Advantages

Automatic Six Sided CNC Drilling Machine

Automatic CNC Six-Sided Drilling Machine

1. Simply operation, automatic production.

2. Low error rate, lower labor cost.

3. Digital automatic production solution.

4. Make digital production is more common.

5. Total solution is make by fast design, display, autocalc and analyze data for rough material cutting , hardware listing, quotation, CNC data and even work out the packing list.

6. Up to 95% use ratio, do not need manual data input and no-slot joint.

7. Easy operation but higher production efficiency.

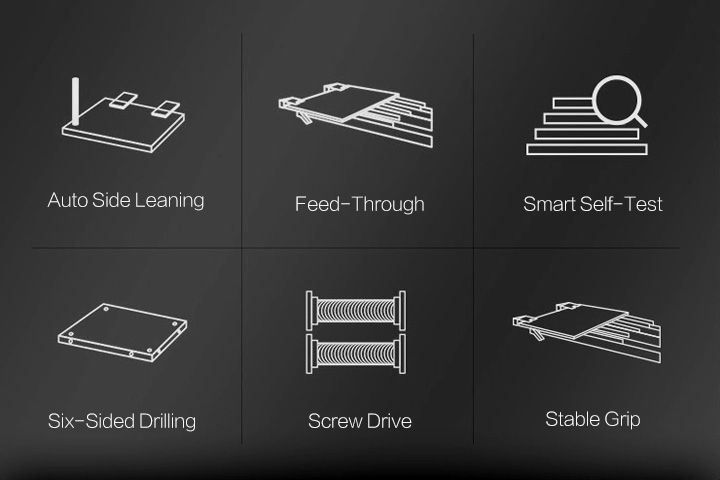

Automatic Six Sided CNC Drilling Machine Features

CNC Six-Sided Drilling Machine

1. The CNC drill with high speed and multi-function just needs one key to start the machining program, just after scan QR code, it can immediately start to work, no need to set, no need to debug, no programming, no trial production.

2. The automated drill can be used for vertical drilling, horizontal drill for side drilling, saw for slotting, while completing pentahedron drilling, chamfer and grooving.

3. Compared to traditional row drilling, the automatic drilling machine is efficiency up to five times, three times more than PTP table machining center in small quantities custom furniture production.

4. The CNC machine adopt inclined vertical working table,it is convenient to load and upload the materials for processing, the workpieces can be slide on the table, the working head does not move, the benefits of this design is that CNC drilling machine can continuously drill a variety of artifacts. Automatic positioning and fixing will save time and improve efficiency.

5. The machine can drill 60mm narrow plate, it is equipped with automatic detection module to detect the sheet size, wrong plate was 0. Auxiliary clamping device allows bended, warped panel to normal processing, simple operation to achieve 100% immediate processing. Continuous production of different styles and different sizes of workpieces, it can get the highest efficiency in yield, quality. The batch size is no longer the limit. It makes customized furniture manufacturing simple.

Automatic CNC Six-Sided Drilling Machine Features

Automatic Six-Sided CNC Drilling Machine Features

Automatic Six Sided CNC Drilling Machine Specifications

Max length

2400mm

Min length

200mm

Max width

1200mm

Min width

60mm

Max thickness

55mm

Min thickness

10mm

X axis Max speed

40m/min

Y axis Max speed

60m/min

Vertical drilling amount

10pcs

Horizontal drilling amount

8pcs

Spindle Speed

24000rpm

Combination grooving saw direction

X

Combination grooving saw direction diameter

Φ120mm

grooving saw speed

5000rpm

Compressed air consumption

450NI/cycle

Dedusting capacity

2000m3/h

Dedusting speed

30m/sec

Note

Can drill three-in-one hole

Spindle power

4.5kw

Weight

1600kg

Automatic CNC Six-Sided Drilling Machine Applications

Automatic CNC Six-Sided Drilling Machine

Furniture Making

Cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks, and chairs.

Decorations

Screens, wave boards, large-size wall hangings, advertising boards, and sign making.

Arts & Crafts

Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns, and characters.

Processing Materials

Drilling, carving, milling and cutting for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.

Automatic Six Sided CNC Drilling Machine Projects

CNC machine for customized wardrobe projects

CNC machine for customized cabinet projects

Automatic Six Sided CNC Drilling Machine Projects

Automatic CNC Six-Sided Drilling Machine Packing & Shipping

Packing Terms

1. Packed the CNC drill with high speed and multi-function by plastic sheet for clearing and damp proofing.

2. Then put the CNC drill in the plywood case for safety and clashing.

3. Transport the plywood case into the container.

Shipping Terms

Usually, for normal model, within 15 days after get the deposit.

Automatic CNC Six-Sided Drilling Machine Service & Support

Guarantee & After-Sales Service

1. 24 months warranty under normal use and lifelong maintenance we supply.

2. 24 hours technical support by phone, email and other online contact.

3. Free training on machine operation, daily maintenance and basic program designing in STYLECNC’s factory.

4. Friendly English user manual.

Payment Terms

1. T/T in advance.

2. L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.

3. Other kinds of payment we can consider if acceptable for us.

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
