2022 Best 4 Axis CNC Router for Sale at Affordable Price

2022 best 4 axis CNC router machine is designed for 3D curved surface carving, 4 axis is refer to X-Y-Z-A, X-Y-Z-B or X-Y-Z-C, 4 axis are linked, the four axis can work at the same time. Now the affordable 4 axis CNC router for sale at cost price.

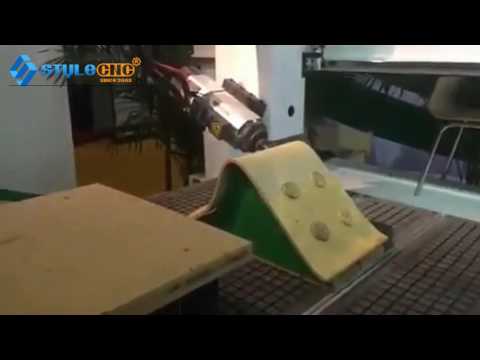

Demonstration Video

2022 Best 4 Axis CNC Router for Sale at Affordable Price

Product Details

4 axis CNC Router

4 axis CNC Machine

4 axis CNC router is also called as 4 axis CNC machine, 4 axis CNC router machine, 4 axis router, 4 axis machine. A 4 axis CNC router is also equipped with X, Y and Z axis, 4 axis is refer to X-Y-Z-A, X-Y-Z-B or X-Y-Z-C, 4 axis are linked, the four axis can work at the same time. 4 axis CNC router machine will make working possible on both sides, which is not on 3 axis CNC router. Someone may call a 4th axis CNC router as a 4 axis CNC router. Actually, a 3 axis CNC router is equipped with a rotary axis, also called A axis, that is a 4th axis CNC router or rotary axis CNC router, not a real 4 axis CNC router.

4 Axis CNC Router Features and Advantages

1. The 4 axis CNC machine is especially designed for processing on different 3D curved surface carving.

2. The HSD ATC spindle (B axis) can rotate ±90 degree, which is suitable for side milling, drilling, cutting, lock slot and so on.

3. The machine’s body is strong, high-precision, reliable and durable.

4. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.

5. Well-known Colombo automatic tool changer spindle, strong cutting ability, low noise, to ensure the machine working for long time.

6. High-performance driven motor to ensure the machine’s high speed and accuracy.

7. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

8. Auto lubrication system and separated control system, easy to operate.

9. Perfect design, top quality accessories, to minimize the machine’s failure rate.

10. A 4 axis CNC machine machine can do all a 3 axis CNC machine can do.

4 Axis CNC Router Technical Parameters

Brand STYLECNC
Model STM1325-4A
Working Area 1300x2500x400mm±90degree
Table Size 1450×2940mm
Traveling Positioning Accuracy ±0.03/300mm
Repositioning Accuracy ±0.03mm
Table Surface Vacuum and T-slot Combined (Option: T-slot Table)
Frame Big Steel Tube Structure
X, Y Structure Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure Hiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption (Without Spindle) 4.5Kw
Max. Rapid Travel Rate 40000mm/min
Max. Working Speed 30000mm/min
Spindle Power 9.0KW
Spindle Speed 0-24000RPM
Drive Motors 850W Yaskawa Motors(Option: Siemens servo motors)
Working Voltage AC380V/50/60Hz,3PH
Command Language G Code
Operating System Syntec Control System(Option:Siemens controller)
Computer Interface Ethernet
Flash Memory 512M
Collet ER32
X,Y Resolution <0.03mm
Software Compatibility Type3/UcancameV9 software (Option: Artcam software)
Running Environment Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%
Packing Size 3300X2100X2300mm
N.W. 2650KG
G.W. 2850KG
Optional Parts Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
Delta/ Panasonic Servo Motors
Colombo Spindle
Price Range $22,800.00 – $38,000.00

4 Axis CNC Router Machine Details

4 axis CNC Router features

4 axis CNC Router machine

4 axis CNC Router details

Automatic Tool Changer for 4 Axis CNC Router Machine

Hiwin Rail Linear Bearings and Ball Screw

Syntec Control System for 4 axis CNC router

4 Axis CNC Router Machine Option Items

1. Bigger size like 1500*3000mm, 2000*3000mm,etc.

2. Rotary Device for processing column materials.

3. Dust collector.

4. Mist spray cooling system.

4 Axis CNC Router Machine Applications

Industry Products
Woodworking Industry

1. Wood doors
2. Cabinets
3. Office furniture
4. Speakers
5. Musical instruments

Panel Processing Industry

1. Insulation
2. Plastic and chemical
3. PCB, ABS, PP, PE and other carbon mixture

Decoration Industry

1. Acrylic
2. PVC
3. MDF
4. Plastic
5. Copper, Aluminum and other soft metal, engraving and milling

4 Axis CNC Router Machine Projects

4 axis CNC Router Projects

4 axis CNC Router applications

4 axis CNC Router application

4 axis CNC Router project

4 axis CNC Router machine sample

4 axis CNC Router machine project

4 axis CNC Router machine projects

4 Axis CNC Machine Extra Services

1. OEM Service is acceptable

2. 4 axis CNC machine body design and color can be customize.

3. 4 axis CNC machine specifications can be changed according to customer requirements

Other Informations for 4 Axis CNC Machine

1. Warranty: 1 year warranty for the whole 4 axis machine.

2. Packing: Plywood case with strong Iron steel pallet.

3. Delivery: By sea with LCL OR FCL.

4. Payment Method: by bank transfer or LC.

5. Payment Terms: 30% deposit before production, pay off 70% balance before shipment.

6. Training: Offer technician on-site training and installation/Life-time technical support is for free.

We also have 4th axis CNC routers for option

STM1325-R1 4th axis CNC router

STM1325-R1 4th axis CNC router

STM1325-R3 4th axis CNC router

STM1325-R3 4th axis CNC router

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
