2.5D Fiber Laser Engraver for Relief Engraving with EZCAD3

2.5D fiber laser engraver is a relief laser engraving system based on 2D laser marking machine, which is equipped with motorized Z axis auto focus system and EZCAD3 software to make metal relief engraving projects.

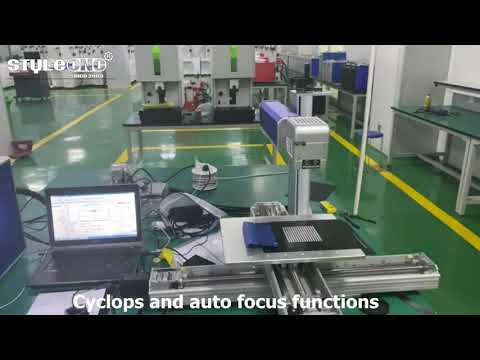

Demonstration Video

2.5D Fiber Laser Engraver for Relief Engraving with EZCAD3

Product Details

2.5D Laser Engraving Machine with EZCAD3 Software

Technical Parameters of 2.5D Fiber Laser Engraver for Relief Engraving

Model

STJ-60FM

Laser Power

60W (80W, 100W, 120W, 200W for option)

Laser Wavelength

1064nm

Fiber Cable Length

3m

Pulse Width

2-500ns

Repetition Frequency Range

1-4000kHz

M2

<1.8

Max.Single Pulse Energy

1.5mJ

Output Power Stability

<5%

Output Beam Diameter

7±0.5mm

Power Range

0%-100%

Anti-Reflection Protection

Yes

Marking Range

110*110mm/175*175mm/200*200mm/300*300mm

Minimum Line Width

0.01mm

Minimum Character

0.1mm

Marking Speed

≤7000mm/s

Marking Depth

Depend on materials

Repeatability Accuracy

±0.001mm

Marking Format

Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc.

Graphic format supported

Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif

Working Voltage

220V±10%/50Hz or 110V±10%/60Hz or customized

Unit Power

<0.5kw

Working Environment

Clean and dust free or dust less

Working Condition Humidity

5%-75%, 0-40 degree, free of condensed water

Laser lifetime

>100000 hours

Net weight

65 kgs

Packing Size

770*480*780mm

Auto Focus System Included
Camera system Optional
Moving table Optional for area with 400*400mm and 400*600mm
Rotary table Optional

Applications of 2.5D Fiber Laser Engraver for Relief Engraving

2.5D fiber laser marking machine can work with most metal marking applications, such as logo making, serial numbers, technical specifications and other designs on metals (copper, iron, steel, stainless steel, titanium, aluminum, gold, silver, brass, alloys), and ABS.

2.5D fiber laser etching machine can finish all 2D laser works and can also make 3D relief engraving on flat plate, but it can’t make 3D engraving on curved part. If the user only need to do some relief engraving, it is much economic cost than 3D laser engraving machine. It can also mark different colors on stainless steel and titanium with MOPA laser source.

Projects of 2.5D Fiber Laser Engraving Machine with EZCAD3 Software

Laser Engraved iPad, iPod, Airpods, and Apple Pencil

Color Laser Engraving Projects

color laser marking machine projects

Metal Laser Engraving Applications

Fiber Laser Engraving Metal Projects & Plans

3D Metal Relief Laser Engraving Applications

3D Metal Relief Laser Engraving Applications

2.5D Fiber Laser Engraving Machine Details

MOPA Laser Marking Machine

Auto focus sensor

Motorized Z axis

Rotary device

Packing for 2.5D Fiber Laser Marking Machine

Packing for 2.5D Fiber Laser Marking Machine

Service & Support for 2.5D Fiber Laser Marking Machine

1. We offer life-long technical support by calling and email.

2. Our technician can give you remote guide online if you have any question.

3. We can record videos of operating the machine.

4. Free training course in our factory.

5. Engineer available to service machinery overseas.

6. The machine will be adjusted before it is delivered, operation disk/CD was included.

7. 3 years warranty for 2.5D laser engraving machine.

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
